Replacing the Sanding Sheet (see figure A)

To remove the sanding sheet

6

, lift it from the side and pull it

off of the sanding plate

5

.

When attaching a new sanding sheet, remove any dust or de-
bris from the sanding plate

5

, e. g., with a brush.

The surface of the sanding plate

5

 is fitted with Velcro backing

for quick and easy fastening of sanding sheets with Velcro ad-
hesion.

Press the sanding sheet

6

 firmly against the bottom side of

the sanding plate

5

.

To ensure optimum dust extraction, pay attention that the
punched holes in the sanding sheet match with the holes in
the sanding plate.

For easy adjustment of the sanding sheet

6

 to the sanding

plate

5

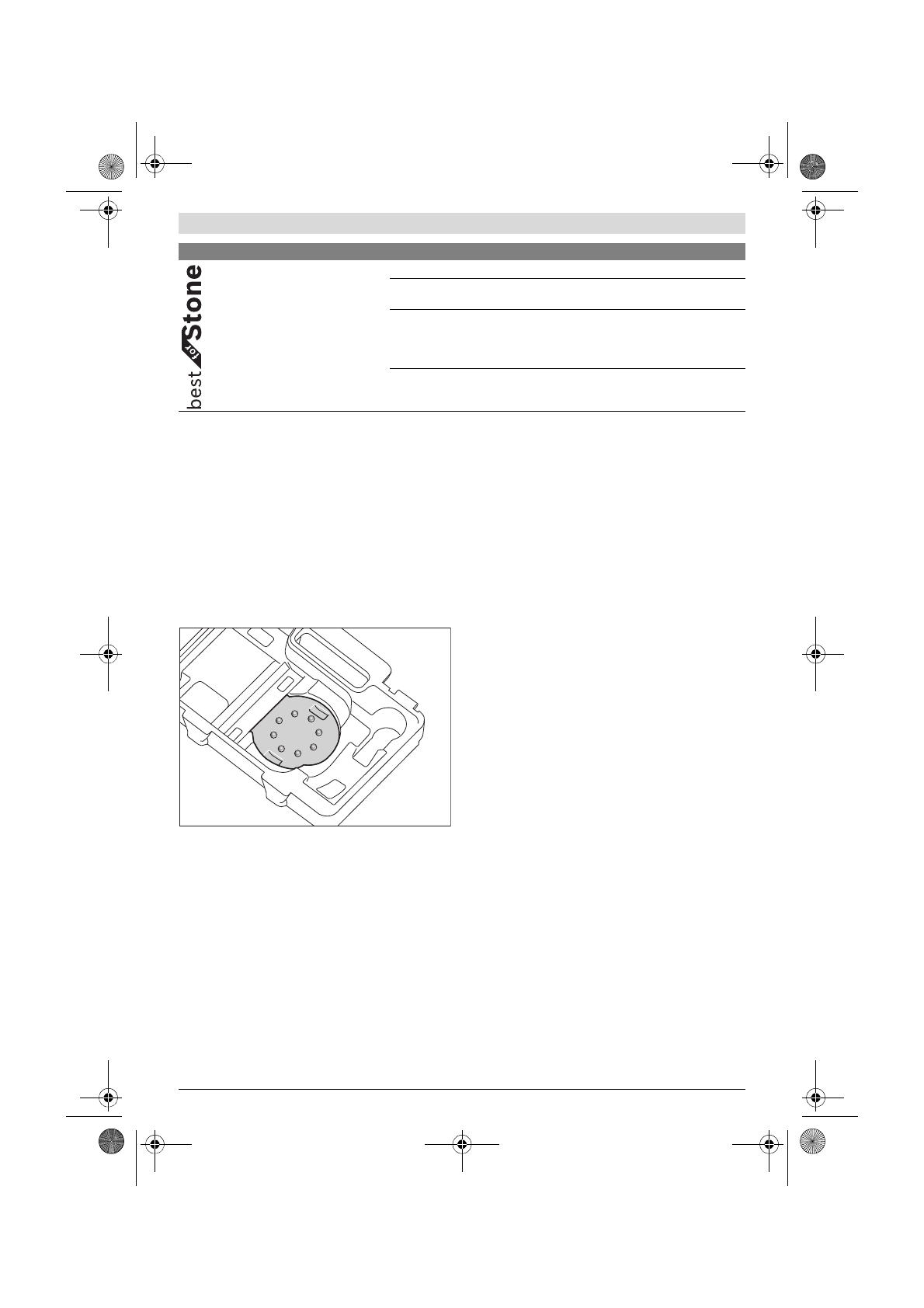

, use the adjustment aid in the tool case as shown in the

following figure. Place the sanding sheet into the adjustment
aid with the Velcro facing upward and firmly push on the ma-
chine with the sanding plate.

Selection of the Sanding Plate

Depending on the application, the machine can be equipped
with sanding plates of different hardness:

– Sanding plate, extra soft: Suitable for polishing and sensi-

tive sanding, incl. on convex surfaces.

– Sanding plate, medium hard: Suitable for all sanding work;

universally usable.

– Hard sanding plate: Suitable for high sanding capacity on

flat surfaces.

Replacing the Sanding Plate (see figure B)

Note:

Replace a damaged sanding plate

5

 immediately.

Pull off the sanding sheet or the polishing accessory. Unscrew
the four screws

7

 completely and remove the sanding plate

5

.

Attach the new sanding plate

5

 and tighten the screws again.

Note:

When attaching the sanding plate, pay attention that

the toothing of the drive element engage into the openings of
the sanding plate.

Note:

A damaged sanding-plate base may be changed only by

an authorised after-sales service agent for Bosch power tools.

Dust/Chip Extraction



Dusts from materials such as lead-containing coatings,
some wood types, minerals and metal can be harmful to
one’s health. Touching or breathing-in the dusts can cause
allergic reactions and/or lead to respiratory infections of
the user or bystanders.
Certain dusts, such as oak or beech dust, are considered
as carcinogenic, especially in connection with wood-treat-
ment additives (chromate, wood preservative). Materials
containing asbestos may only be worked by specialists.
– As far as possible, use a dust extraction system suitable

for the material.

– Provide for good ventilation of the working place.
– It is recommended to wear a P2 filter-class respirator.

Observe the relevant regulations in your country for the mate-
rials to be worked.



Prevent dust accumulation at the workplace.

Dusts can

easily ignite.

Integrated Dust Extraction with Dust Box
(see figures C1 – C4)

Attach the dust box

3

 onto the extraction outlet

8

 until it latch-

es.

The filling level of the dust box

3

 can easily be checked

through the transparent container.

To empty the dust box

3

, pull it off downward with a light

twisting motion.

Before opening the dust box

3

, it is recommended to loosen

the dust from the filter element by gently striking it against a
firm support (as shown in the figure).

Hold the dust box

3

 firmly, fold the filter element

9

 upward

and empty the dust box. Clean the thin plates of the filter ele-
ment

9

 with a soft brush.

– Automotive paint
– Masonry, stone
– Marble
– Granite
– Ceramic
– Glass
– Plexiglas
– Glass-fibre plastics

For pre-sanding

coarse

80

For shaping and braking edges

medium

100
120

For final sanding and forming

fine

180
240
320
400

For polish-sanding and rounding off edges

very fine

600

1 200

Material

Application

Grain size
