4. When installing into double drywall or other thicker wall
  materials, you may need to remove part of the two-piece
  toggle feet. Use a small screwdriver to gently release the two
  locking levers (see Figure 4).

  Lock toggle feet will automatically rotate into position and
  begin clamping the speaker (see Figure 5).

• When

you notice resistance on the screws the speaker has been

  clamped successfully.

•

There are four toggle feet on each speaker.

6. The micro-trim grille is held in place by several small, powerful
  magnets on the speaker frame. Place the grille against the

  speak

er and the magnets will hold it firmly in pla

ce.

To pivot the tweeter, apply light pressure to the ring around the
outside edge of the tweeter, as sho

wn in figu

re 7. Make sure not

to touch or apply pressure to the tweeter itself.

IMPORTANT: ALWAYS USE LOW-TORQUE SETTINGS; NEVER OVERTIGHTEN.

NOTE: ADJUSTING THE TENSION OF THE ROTO-LOCK CLAMPS SO THAT THE SPEAKER FRAME IS FLAT
WILL HELP ENSURE THAT THE GRILLE CONTACTS THE WALL ALL THE WAY AROUND THE SPEAKER
FOR A PROPER FIT.

Unlocking SONOS Audio
Enhancements

SONOS IN-WALL by SONANCE speakers include exclusive audio
enhancements when used with a SONOS Amp. Use the free
SONOS app to unlock them.

Audio enhancements include:

•

  Custom EQ settings

•

  Gain adjustment

•

  Dynamic bass extension

•

  Signal limiting/loudspeaker protection

1. Download the SONOS mobile app from the app store on a
  mobile device.

2. Open the app and follow the prompts to set up your
  SONOS system.

3. After Amp is set up, go to Settings>System and choose the room
  your speakers are in.

4.Choose Detect Sonos Architectural to unlock the
  audio enhancements.

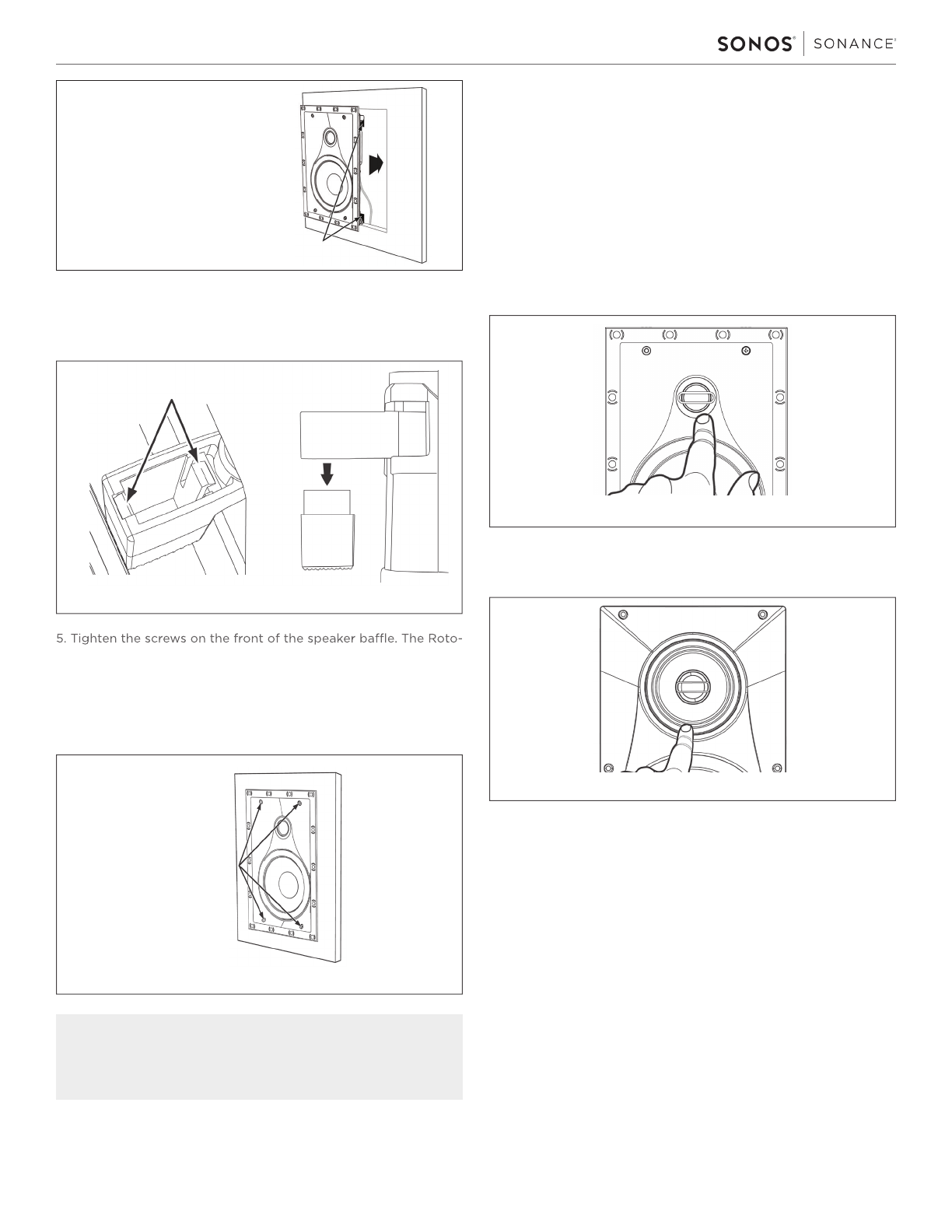

Figure 5: Tightening the Roto-Lock Screws

Speaker Adjustments

Pivoting Midrange/Tweeter Assembly

All SONOS IN-WALL by SONANCE Speakers have a pivoting
tweeter. If you’re using the speakers as surround channel
speakers in a home theater, pivot the drivers towards a wall or
window, away from the listeners.

To pivot the midrange/ tweeter assembly, apply light pressure
to the ring around the outside edge of the midrange cone, as
sho

wn in figu

re 6. Take care not to touch or apply pressure to the

midrange cone itself.

Figure 6: Pivoting the Midrange/Tweeter Assembly

Figure 7: Pivoting the Tweeter

Figure 4: Removing the Caps from the Roto-Lock Toggle Feet

Remove

Cap

Locking Levers

Figure 3: Inserting the Speaker
into the Mounting Hole

Roto-Lock Clamps (retracted)

Roto-Lock Screws

When properly installed, the grille trim should make contact

with the wall all the way around the speaker.
