Inserting

Mount the requested application tool/accessory (e. g. plunge
cut saw blade

10

) in such a manner on the tool holder

7

 that

the offset faces downward (see illustration on the graphics
page; marking on the application tool/accessory is readable
from above).

Turn the application tool/accessory to a position favourable
for the respective job, and allow it to engage into the cams of
the tool holder

7

. 12 different positions are possible, each

offset by 30 °.

Use the screw

11

 to fasten the application tool/accessory.

Tightly fasten the screw

11

 with the hex key

12

.



Check the tight seating of the application tool/accesso-

ry.

Incorrect or not securely fastened application tools/

accessories can come loose during operation and pose a
hazard.

Removing

For removing the application tool/accessory, loosen the
screw

11

 with the hex key

12

 and remove the application

tool/accessory.

Mounting/Replacing a Sanding Sheet on the Sanding

Plate

The sanding plate

15

 is fitted with Velcro backing for quick

and easy fastening of sanding sheets with Velcro adhesion.

Before attaching the sanding sheet

16

, free the Velcro back-

ing of the sanding plate

15

 from any debris by tapping against

it in order to enable optimum adhesion.

Position the sanding sheet

16

 flush alongside one edge of the

sanding plate

15

, then lay the sanding sheet onto the sanding

plate and press firmly.

To ensure optimum dust extraction, pay attention that the
punched holes in the sanding sheet match with the holes in
the sanding plate.

To remove the sanding sheet

16

, grasp it at one of the tips and

pull it off from the sanding plate

15

.

You can use all sanding sheets, fleece pads/polishing cloth
pads of the Delta 93 mm series of Bosch accessory program.

Sanding accessories, such as fleece pads/polishing cloth
pads, are attached to the sanding plate in the same manner.

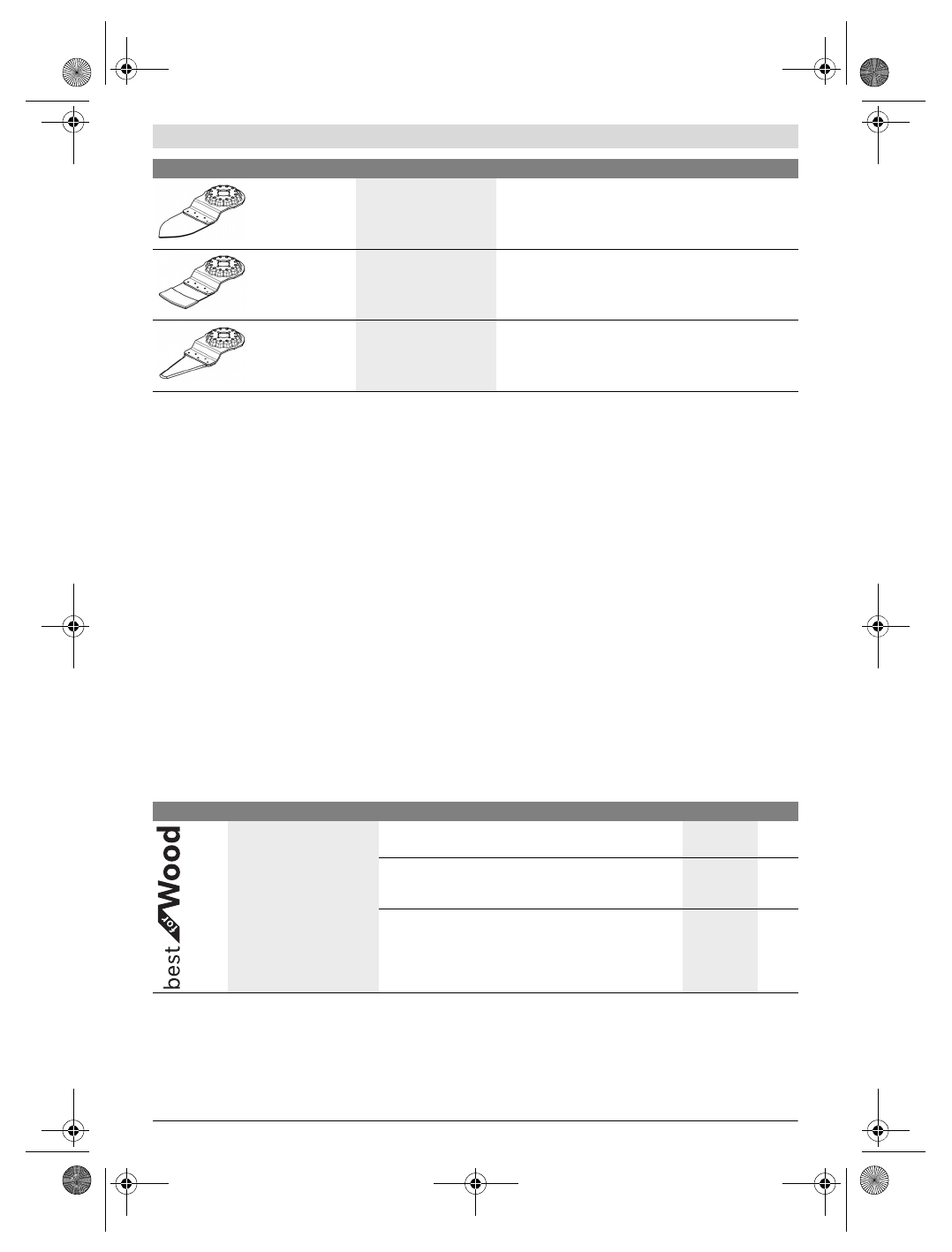

Selecting the Sanding Sheet

Depending on the material to be worked and the required rate of material removal, different sanding sheets are available:

HM-Riff sanding
finger

Wood,
Paint

Sanding wood or paint in hard to reach areas without
sanding paper;
example: sanding off paint between shutter louvres,
sanding wooden floors in corners

HM-Riff plunge cut
saw blade

Fibreglass,
Mortar,
Wood

Plunge cuts in severely abrasive materials;
example: routing thin mosaic tiles

HCS universal
joint cutter

Expansion joints,
Putty,
Insulation materials (rock
wool)

Cutting and separating soft materials;
example: cutting silicone expansion joints or putty

Accessory

Material

Application

Sanding disc Material

Application

Grain size

– All  wooden  materials

(e. g., hardwood,
softwood, chipboard,
building board)

– Metal  materials

For coarse-sanding, e. g. of rough, unplaned beams and
boards

coarse

40
60

For face sanding and planing small irregularities

medium

80

100
120

For finish and fine sanding of wood

fine

180
240
320
400
