22

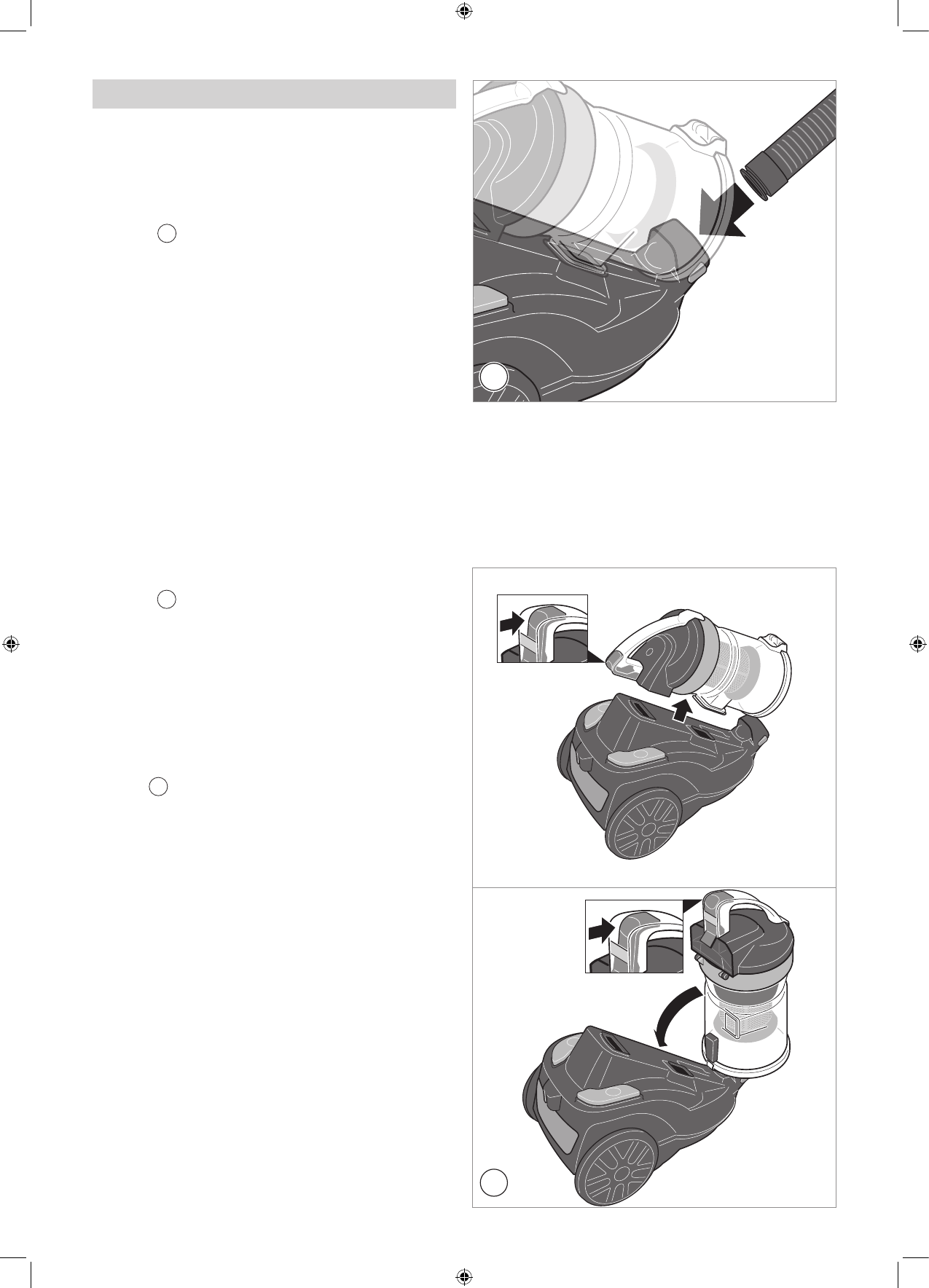

Assembly and Removal of cyclone dust barrel

As is shown in

4

, place the bottom of the cyclone dust barrel on the projecting

part at the front end of the machine body, and press down the cyclone dust
barrel. When the front-end hook is entered into the corresponding part of the
machine body completely, and a click of inserting sound is heard, which indicate
that the cyclone dust barrel is assembled in place . To remove the cyclone dust bar-
rel, press down the handle of the cyclone dust barrel; when the handle is pressed
down to the bottom, the cyclone dust barrel can be lifted to remove .

Assembly of extendible telescopic pipe and ordinary floor brush

Insert the front end of the suction hose handle into the extendible telescopic pipe
according to

5

; then insert the other end of the extendible telescopic pipe into

the rounded inlet of the ordinary floor brush, and adjust to the proper direction .
At this time, the assembly of the whole machine is completed .

Assembly instructions

1. Before assembling the vacuum cleaner, please confirm all parts and components
  for the cleaner are received by referring to Parts and Components List .
2 . Please remember to cut off the power supply before assembly .

Assembly of suction hose

As is shown in

3

  , insert the suction hose into the duct inlet of the machine

body in horizontal direction . Please pay attention to the alignment of two
projecting parts . Turn the suction hose right when it is pushed into the bottom, a
click of inserting sound may be heard, i .e . the hose is assembled into the machine
body completely .

3

1.

2.

1.

2.

4
