less. If the cooker is installed in a room with a volume of less than 5m³, then a vent
with an effective area of 100cm³ is required.  If it is installed in a room with a volume
of between 5m³  and 10m³, then an air vent with an effective area 50cm³  is
necessary. If there are other fuel burning appliances in the room, please consult
national standards for guidance.

Gas connection             Before connecting the appliance to the gas network, make sure that the data on the


label attached to the food warmer drawer or on the back of the cooker are

compatible with what is indicated for the gas distribution network.

A label attached to the last page of this handbook and in the food warmer drawer (or
on the back) of the appliance indicates the appliance adjustment conditions: type of
gas and operating pressure.

IMPORTANT: This appliance must be installed in compliance with current national
standards in force and used only in a well-ventilated room.

WARNING: It should be recalled that the appliance utilises a threaded 1/2" gas
cylindrical male fitting according to UNI-ISO 228-1.
To connect the appliance to the gas network with a flexible rubber hose, a
supplemental hose nipple fitting is needed (Fig.3) which is supplied with the
appliance.

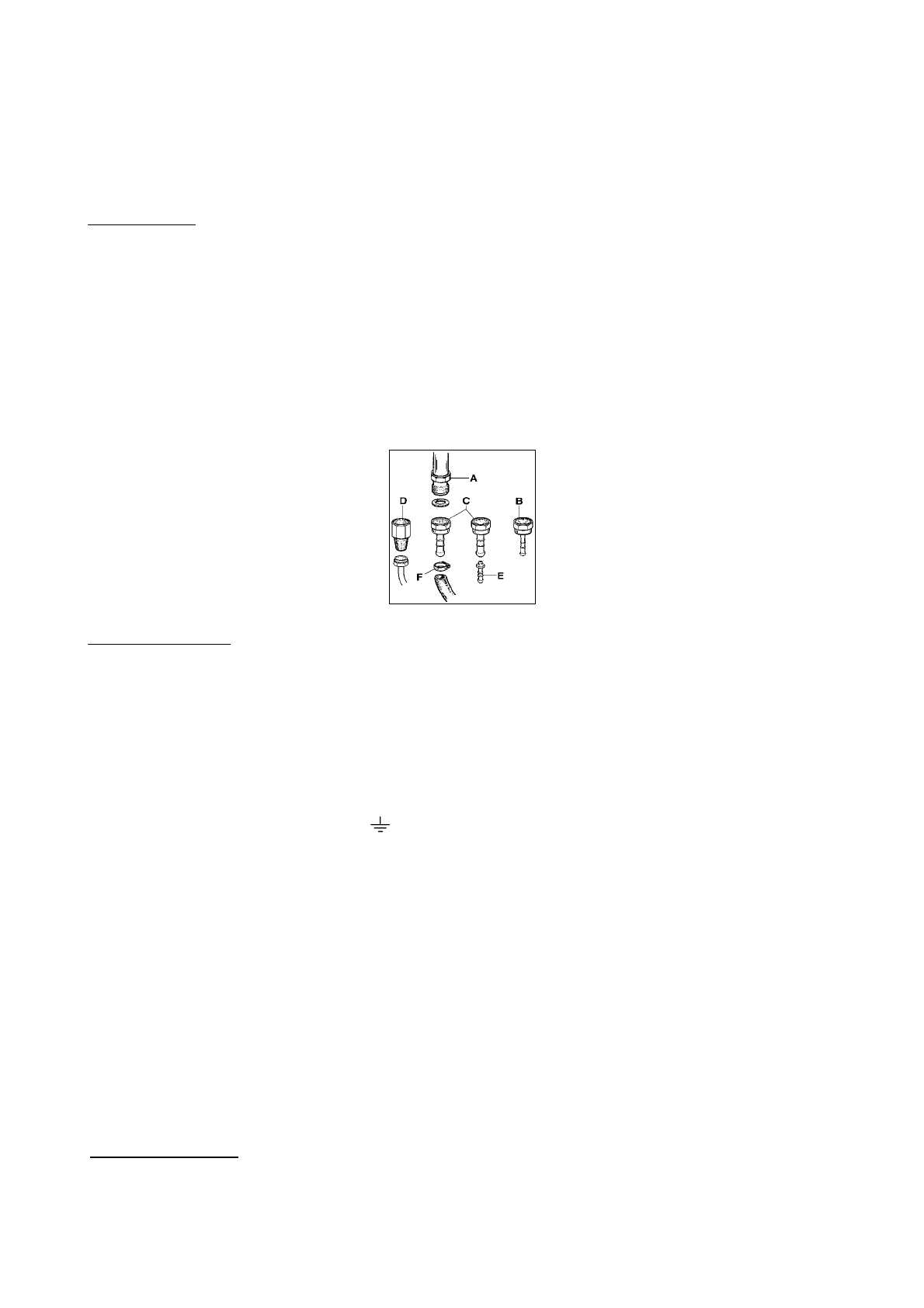

                                                                                  Fig.3

Electrical connection      The electric connection must comply with the current legal standards and

regulations.
Before making the connection, check that:
- The system electrical rating and the current outlets are adequate for the maximum
power output of the appliance (see the label applied to back of the cooker).
- The outlet or the system is equipped with an efficient ground connection in
accordance with the current legal standards and regulations. The company will not
be responsible for the non-compliance with these instructions.

                                       letter L (phase)

 = brown wire;

                                       letter N (neutral)

 = blue wire;

                                       ground symbol

 = green-yellow wire;

- The power cord must be positioned so that an over temperature of 75 K will not be
reached at any point.
- Do not use reductions, adapters or splitters since they might cause false contacts
and lead to dangerous overheating.
When the connection is made directly to the electric network:
- Use a device that ensures disconnection from the mains in which the contacts are
opened to a distance that permits complete disconnection according to the
conditions for over-voltage category III.
- Remember that the ground wire must not be interrupted by the circuit-breaker.
- As an alternative, the electric connection can also be protected by a high-sensitivity
residual current circuit-breaker.
- It is highly recommended to attach the special green-yellow ground wire to an
efficient ground system.
WARNING: If the power cord is replaced, the ground wire (yellow-green) connected
to the terminal, should be longer than the other wires by about 2 cm.
WARNING: The  power cord should be replaced only by qualified personnel.

Types of power cords  The appliance is equipped with a terminal for the electric connection placed behind,

 which is accessible removing the posterior casing.

The cable of alimentation can be.
The power supply cable is suitable for appliance operating on 220-240 V~
