22

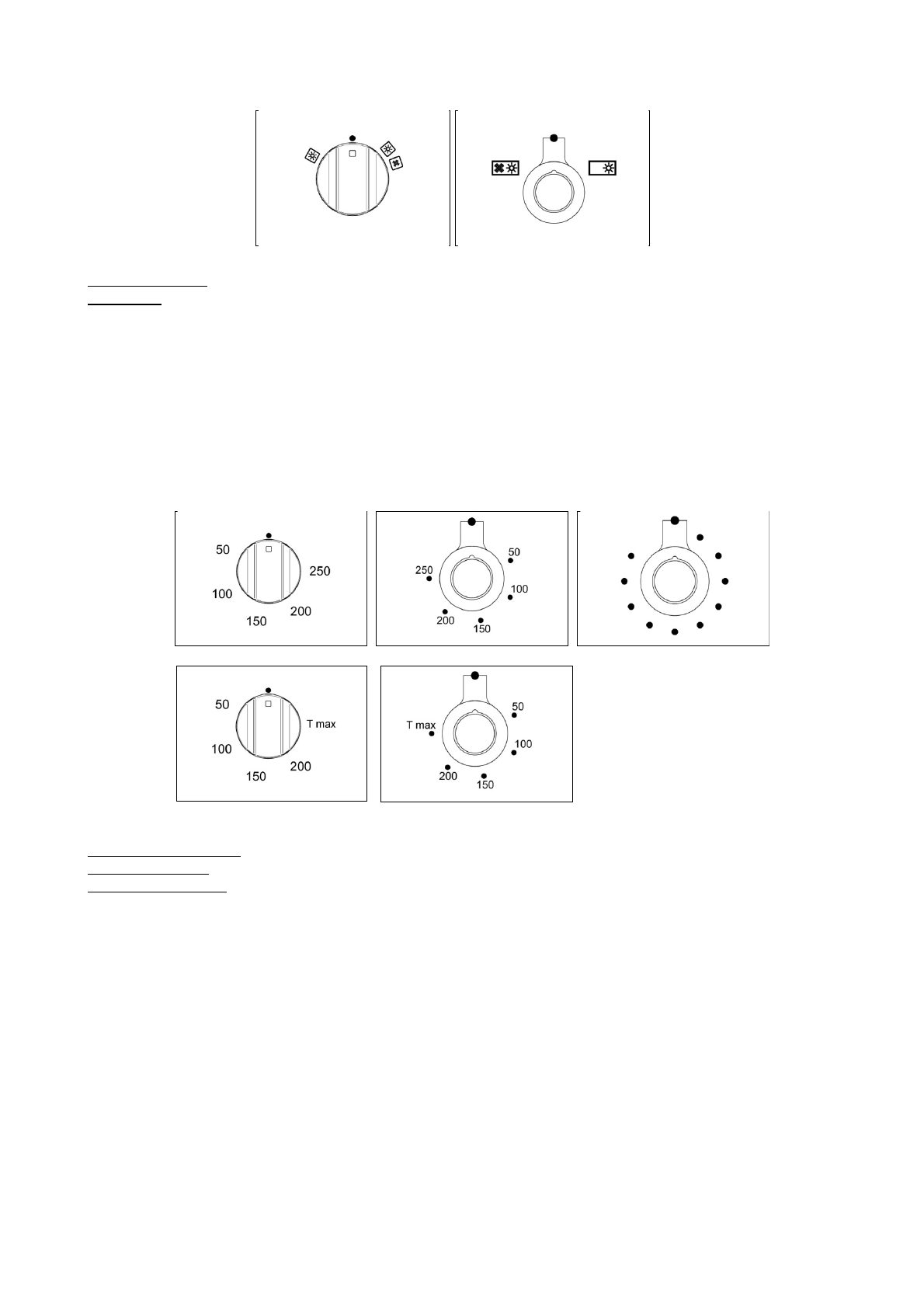

                                                 Fig 24A                                                   Fig 24B

Using the electric           The maximum oven temperature can vary according to the tolerances of the different
thermostat                      materials and installation conditions between 220-250°C.

The thermostat supplied with the relative models maintains a constant temperature
inside the oven at a specific temperature setting ranging from 50°C to 250°C (Fig.

                                       25A-25B and Fig.25C for pro t version only ) or  50°C to T max°C for hybrid version


only (Fig.25D-25E).   Turn the knob clockwise and align the selected temperature

indicated on the ring with the index etched on the control panel. Thermostat
operation is indicated by an orange light which will turn off when the temperature
inside the oven is 10°C greater than the temperature setting, and will turn on when
the oven is 10°C less than the temperature setting. The thermostat can control the
oven elements only if the relative switch is in one of the possible oven element
operating modes: if the switch is in position 0, the thermostat has not effect on the
oven elements, which remain off.

                           Fig 25A                                         Fig 25B                                       Fig 25C

                            Fig.25D                                        Fig.25E

Using the 5 + 0 switch   The 5 + 0 switch installed in the hybrid oven models is used, along with the electric
( only cooker with

         or gas thermostat.

Hybrid  oven (HYB))

To control the electric fan and the oven elements since they can be turned on by

                                       turning the 5 + 0 switch knob and the thermostat knob. Turning just one of the two
                                       knobs will not have any effect on the oven except to turn on the oven light or the
                                       electric fan.

In combination with the electric thermostat, it is used for controlling in parallel with
the thermostat the convection fan and the related oven heating resistance since for
being able to put in operation the convection fan and the resistance both the 5+0
switch knob and the thermostat knob have to be turned on; by turning only one of
the two knobs, no effect will result on oven operation except only for lamp or fan
when switched on. Electric oven is heated by two resistances: one upper resistance
and one circular resistance; by turning the switch knob (Fig.26A-26B) the resistance
referred to the symbol printed on the knob ring will be switched on but in order to put
it in operation  the thermostat knob has to be turned until the orange light on will
confirm that resistance is in operation. By turning the switch knob on one of the 5
operation mode the lamp will be switched on simultaneously with the related
resistance. Once the temperature and the type of resistance are selected, the
operation of the resistance will be controlled by the thermostat. It is therefore
accepted that during operation the orange light will switch on and off.
