ENGLISH

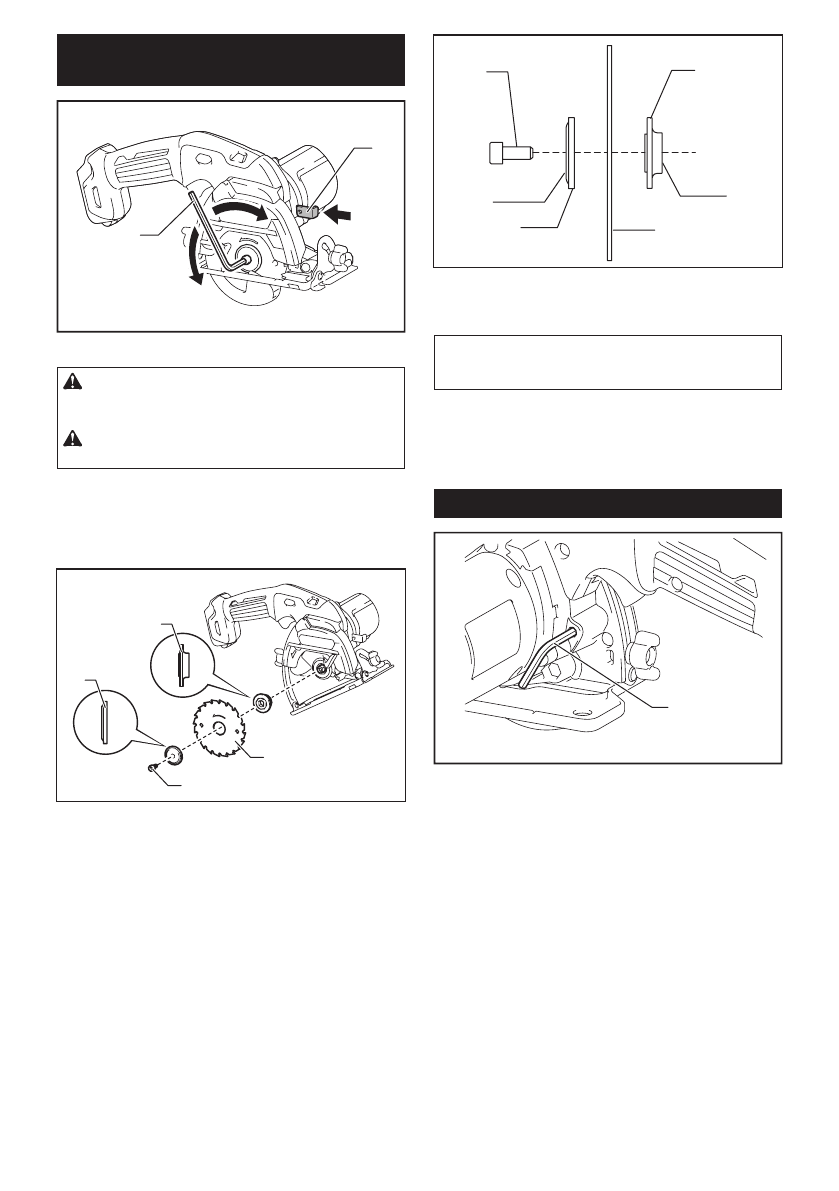

Removing or installing circular saw

blade

1

2

1. Shaft lock    2. Hex wrench

CAUTION:

Be sure the circular saw blade is

installed with teeth pointing up at the front of the

tool.

CAUTION:

Use only the Makita wrench to

install or remove the circular saw blade.

To remove the circular saw blade, press the shaft lock

fully so that the circular saw blade cannot revolve and

use the wrench to loosen the hex bolt counterclockwise.

Then remove the hex bolt, outer flange and circular saw

blade.

1

2

3

4

1. Hex bolt   2. Outer flange    3. Circular saw blade

4. Inner flange

To install the circular saw blade, follow the removal pro-

cedure in reverse. BE SURE TO TIGHTEN THE HEX

BOLT CLOCKWISE SECURELY.

1

2

3

4

5

6

1. Hex bolt   2. Protrusion    3. Outer

flange    4. Circular saw blade    5. Inner flange

6. Protrusion (bigger side)

NOTE:

 If a inner flange is removed by chance, install

the inner flange so that its protrusion (bigger side)

faces inside as shown in the figure.

When changing the circular saw blade, make sure to

also clean the upper and lower blade guards of accu-

mulated sawdust as discussed in the Maintenance

section. Such efforts do not replace the need to check

lower guard operation before each use.

Hex wrench storage

1

1. Hex wrench

When not in use, store the hex wrench as shown in the

figure to keep it from being lost.
