9

The handy rip fence allows you to do extra-accurate
straight cuts. Simply slide the rip fence up snugly against
the side of the workpiece and secure it in position with
the screw on the front of the base. It also makes
repeated cuts of uniform width possible.

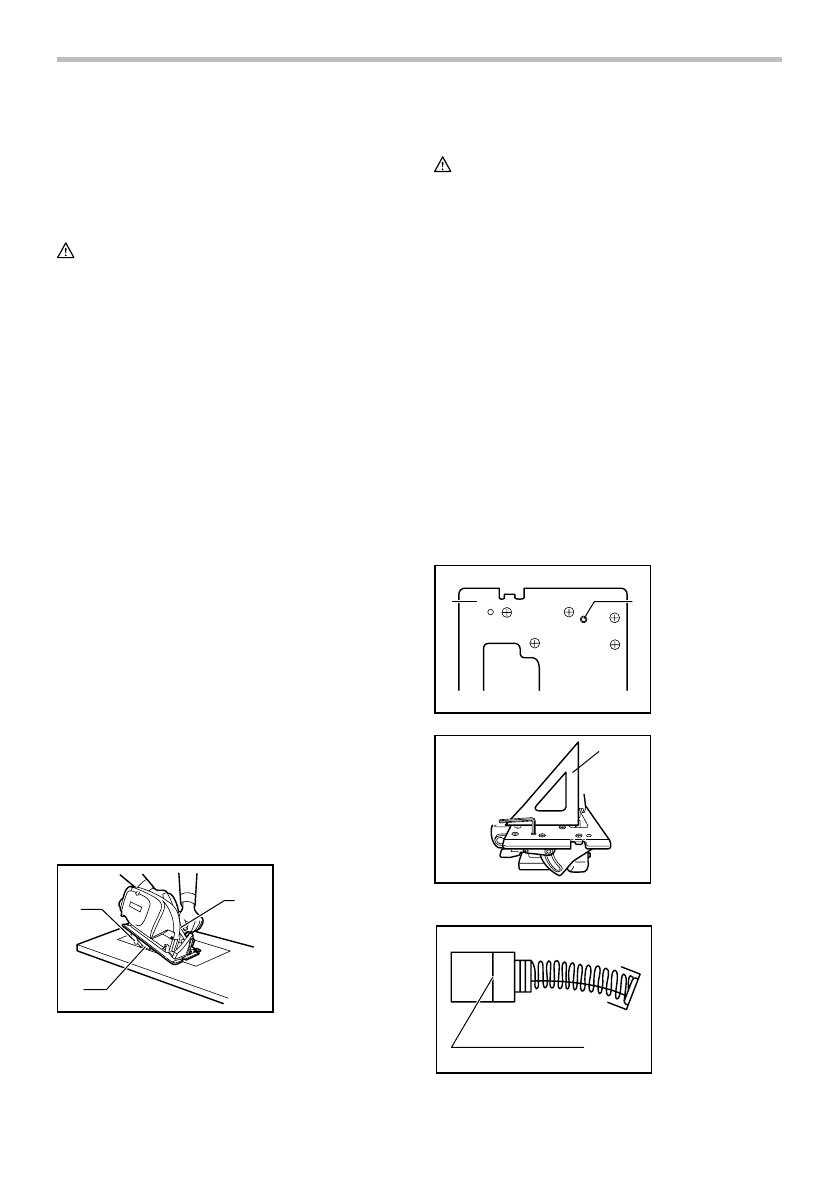

Plunge cuts (Pocket cutting)

WARNING:

•

Never touch the lower guard during operation.

•

Never wedge or tie the lower guard open. For
example, do not wedge or tie the retracting lever.
Then lower guard must always be kept free and in
no way restricted in its movement. It must
automatically close immediately after the cut is
completed and the tool is raised.

•

As soon as you start the cut, release the retracting
lever. The lower guard contact with the workpiece will
keep it in position to open freely as you start the cut.

•

Lower guard should be retracted manually only for
special cuts such as "Pocket Cuts" and
"Compound Cuts." Raise lower guard by
Retracting Lever. As soon as blade enters the
material, retracting lever must be released. For all
other sawing, the lower guard should operate
automatically.

Tilt the tool forward and rest the front of the base on the
workpiece to be cut. Using the right edge of the notch in
the front of the base and the graduation on the right side
of the base, align the blade with the cutting line on the
workpiece. Grasp the tool firmly with the front grip by
your left hand and the rear handle by your right hand.
Switch on the tool and wait until the blade reaches full
speed. Push down the retracting lever with your thumb
to retract the lower guard. As soon as you start the cut,
release the retracting lever. Gradually lower the tool until
its base rests flat on the workpiece to be cut. Then
advance the tool along the cutting line until the cut is
completed. Release the switch trigger and allow the
blade to stop completely before withdrawing the blade
from the workpiece. Never withdraw the blade when it is
still rotating. A dangerous kickback could occur.

3

1

2

001494

MAINTENANCE

CAUTION:

•

Always be sure that the tool is switched off and
unplugged before attempting to perform inspection
or maintenance.

•

Clean out the upper and lower guards to ensure
there is no accumulated sawdust which may
impede the operation of the lower guarding
system.

    A dirty guarding system may limit the

proper operation which could result in serious
personal injury.  The most effective way to
accomplish this cleaning is with compressed air.

If

the dust is being blown out of the guards be
sure the proper eye and breathing protection is
used.

•

Never use gasoline, benzine, thinner, alcohol or
the like. Discoloration, deformation or cracks may
result.

Adjusting for accuracy of 90° cut (vertical cut)

This adjustment has been made at the factory. But if it is
off, adjust the adjusting screw with a hex wrench while
squaring the blade with the base using a triangular rule,
try square, etc.

1

2

001500

1

001509

Replacing carbon brushes

1

001145

1. Limit mark

1. Triangular rule

1. Base
2. Adjusting screw

1. Retracting lever
2. Lower guard
3. Saw blade
