59

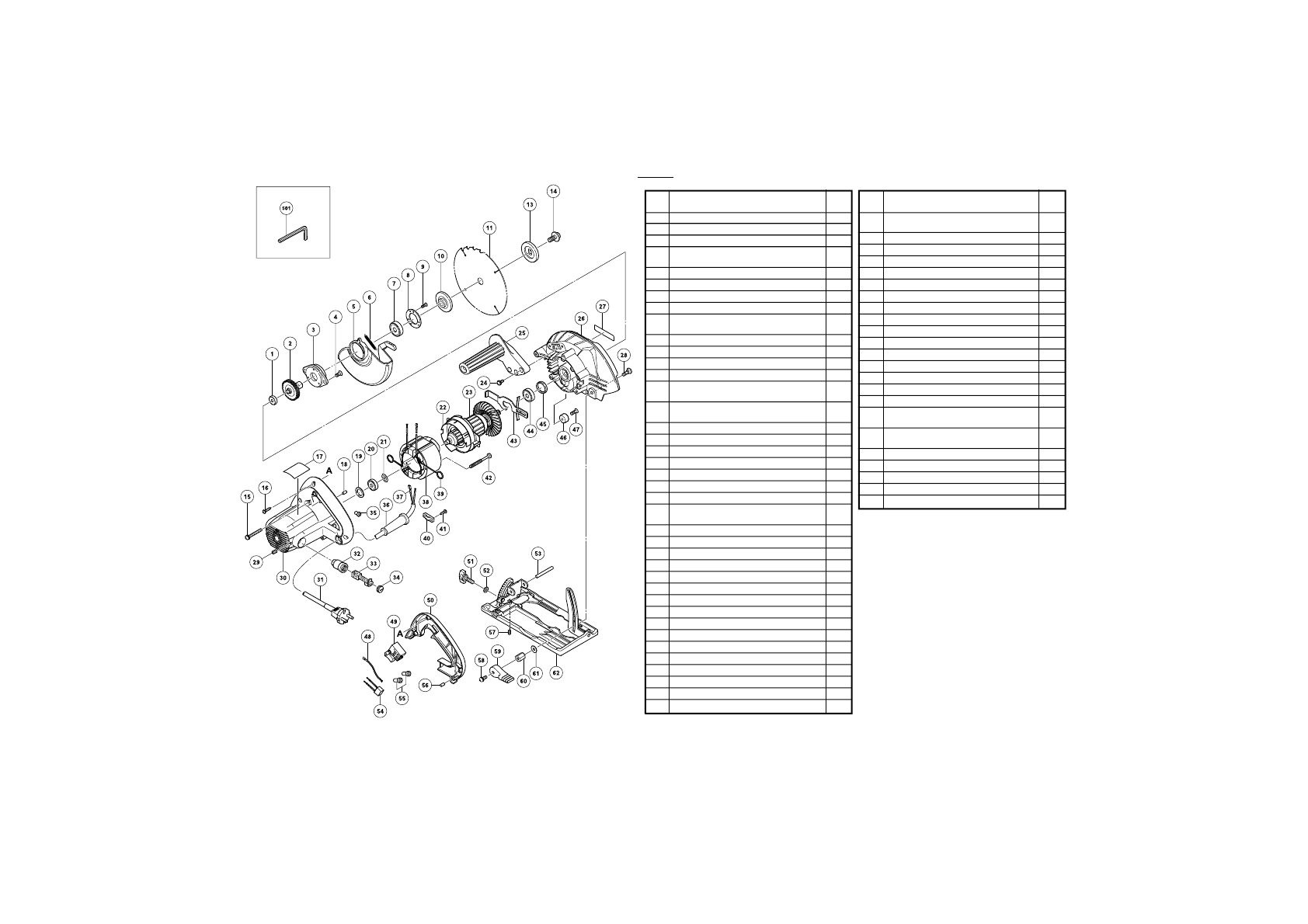

C6SS

Item

No.

Part Name

Q’TY

1

METAL

1

2

SPINDLE GEAR SET

1

3

BEARING HOLDER

1

4

SEAL LOCK FLAT HD.

SCREW M5

×

 12

2

5

LOWER GUARD

1

6

RETURN SPRING

1

7

BALL BEARING 6002VVCM

1

8

BEARING COVER

1

9

SEAL LOCK FLAT HD.

SCREW M3

×

 12

3

10

WASHER(A)

1

11

CARBIDE TIPPED SAW BLADE

1

13

WASHER(B)

1

14

HEX.SOCKET BOLT(W/WASHER)

1

15

MACHINE SCREW (W/WASHERS)

M5

×

 45

3

16

TAPPING SCREW (W/FLANGE)

D4

×

 20

3

17

NAME PLATE

1

18

BEARING LOCK

1

19

THRUST WASHER

1

20

BALL BEARING 608VVC2

1

21

WASHER(A)

1

22

FAN GUIDE

1

23

ARMATURE

1

24

MACHINE SCREW (W/WASHERS)

M5

×

 16

3

25

SIDE HANDLE

1

26

GEAR COVER

1

27

HITACHI LABEL

1

28

BOLT (SQUARE) M6

×

 20

1

29

HEX. SOCKET SET SCREW M5

×

 8

2

30

HOUSING ASS’Y

1

31

CORD

1

32

BRUSH HOLDER

2

33

CARBON BRUSH

2

34

BRUSH CAP

2

35

CONNECTOR

1

36

CORD ARMOR

1

37

FASTON

1

38

STATOR ASS’Y

1

39

BRUSH TERMIMAL

2

40

CORD CLIIP

1

Item

No.

Part Name

Q’TY

41

TAPPING SCREW (W/FLANGE)

D4

×

 16

2

42

HEX. HD. TAPPING SCREW D5

×

 55

2

43

LOCK LEVER

1

44

BALL BEARING 6000VVCM

1

45

RUBBER RING

1

46

CUSHION

1

47

FLAT HD. SCREW M6

×

 20

1

48

INTERNAL WIRE

1

49

SWITCH(BRAKE)

1

50

HANDLE COVER

1

51

WING BOLT (A)

1

52

SUPER LOCK WASHER M6

1

53

ROLL PIN D6

×

 50

1

54

NOISE SUPPRESSOR

1

55

CONNECTOR 50092

2

56

BEARING LOCK

1

57

SLOTTED HD. SET SCREW

(SEAL LOCK) M6

×

 8

1

58

SEAL LOCK SCREW

(W/SP. WASHERS) M6

×

 14

1

59

LEVER(A)

1

60

LOCK NUT

1

61

WASHER

1

62

BASE ASS’Y

1

501 HEX. BAR WRENCH 5MM

1
