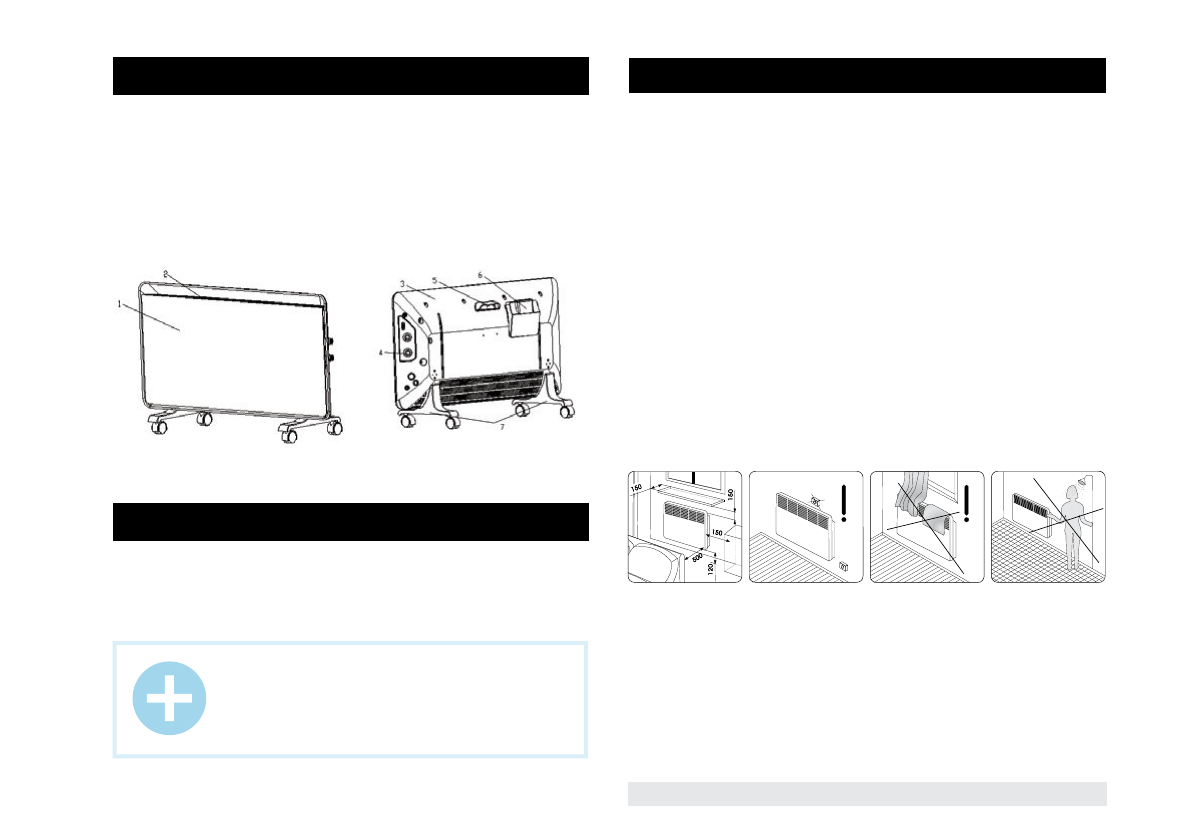

4. CONVECTOR DESCRIPTION

5. DELIVERY SET

1. Front panel
2. Air outlet
3. Rear panel
4. Control Panel
5. Handle
6. Water box
7. Wheels assembly

1. Convector - 1 pc.
2. Supporting feet - 2 pc.
3. Wall mounting set - 1 pc.
4. Operating manual and warranty card - 1 pc.

Wall installation

1. Uncover the original packaging and carefully remove device from it.
2. Remove any foam seals on the edges of the device and release it from

polyethylene.
3. Determine the location for the convector in compliance with the minimum

distance from the object and the floor.
4. Mark the height at which you must install the convector and put labels

in visible fixing holes.
5. Drill holes in the wall of the required diameter, insert the dowels*, tighten

the set screws*.
6. Attach the mounting brackets to the cover of the unit with the mounting

screws.
7. Perform installation on the wall convector, setting the screws installed in

the wall brackets with the holes that are installed on the device.
8. Check the installation. Convector should fit snugly against the wall.

* May not be included in delivery set

NOTE:

Design and technical characteristics of the convector

heater, as well as its complete set may be changed by

the manufacturer without prior notification, when it is

needed to improve its quality.

Fig. 1

6. INSTALLATION

Размеры указаны в милиметрах

Fig. 2
