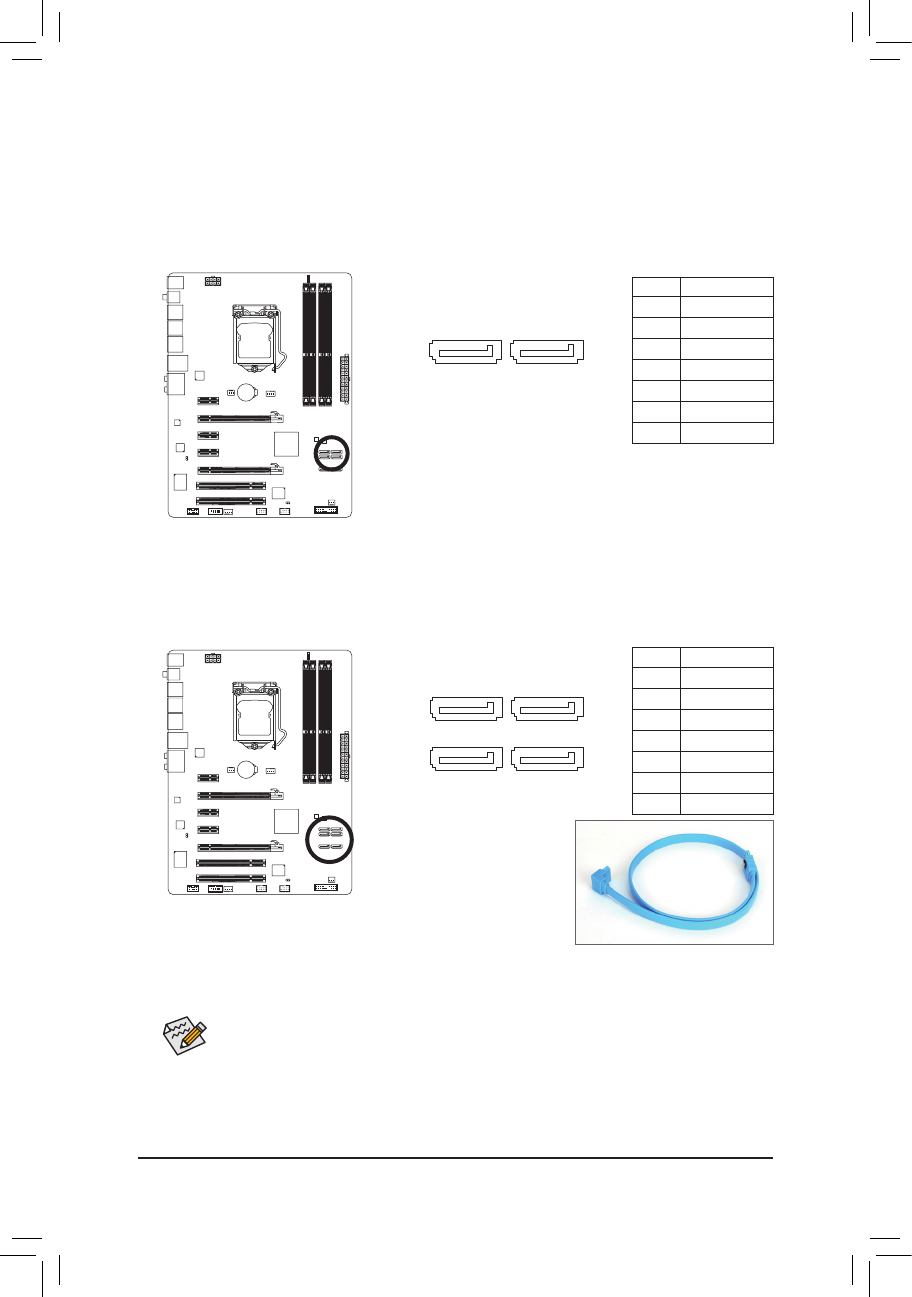

Hardware Installation
8) SATA2_2/3/4/5 (SATA 3Gb/s Connectors, Controlled by P67
j
/H67
kl
)
The SATA connectors conform to SATA 3Gb/s standard and are compatible with SATA 1.5Gb/s standard.
Each SATA connector supports a single SATA device. The P67
j
/H67
kl
controller supports RAID 0,
RAID 1, RAID 5, and RAID 10. Refer to Chapter 5, "Configuring SATA Hard Drive(s)," for instructions on
configuring a RAID array.
Pin No. Definition
1
GND
2
TXP
3
TXN
4
GND
5
RXN
6
RXP
7
GND
•
A RAID 0 or RAID 1 configuration requires at least two hard drives. If more than two hard
drives are to be used, the total number of hard drives must be an even number.
•
A RAID 5 configuration requires at least three hard drives. (The total number of hard drives
does not have to be an even number.)
•
A RAID 10 configuration requires four hard drives.
Please connect the L-shaped end of
the SATA cable to your SATA hard
drive.
7) SATA3_0/1 (SATA 6Gb/s Connectors, Controlled by P67
j
/H67
kl
)
The SATA connectors conform to SATA 6Gb/s standard and are compatible with SATA 3Gb/s and SATA
1.5Gb/s standard. Each SATA connector supports a single SATA device.The SATA3_0 and SATA3_1
connectors support RAID 0 and RAID 1. RAID 5 and RAID 10 can be implemented on the two con-
nectors with the SATA2_2/3/4/5 connector
(Note)
. Refer to Chapter 5, "Configuring SATA Hard Drive(s),"
for instructions on configuring a RAID array.
Pin No. Definition
1
GND
2
TXP
3
TXN
4
GND
5
RXN
6
RXP
7
GND
SATA3_0
SATA3_1
1
7
DEBUG
PORT
G.QBOFM
DEBUG
PORT
G.QBOFM
SATA2_4
SATA2_3
SATA2_2
SATA2_5
1
7
DEBUG
PORT
G.QBOFM
DEBUG
PORT
G.QBOFM
DEBUG
PORT
G.QBOFM
DEBUG
PORT
G.QBOFM
j
Only for GA-P67A-UD3
k
Only for GA-PH67A-UD3
l
Only for GA-PH67-UD3
(Note) When a RAID set is built across the SATA 6Gb/s and SATA 3Gb/s channels, the system perfor-
mance of the RAID set may vary depending on the devices being connected.
