- 19 -

Hardware Installation

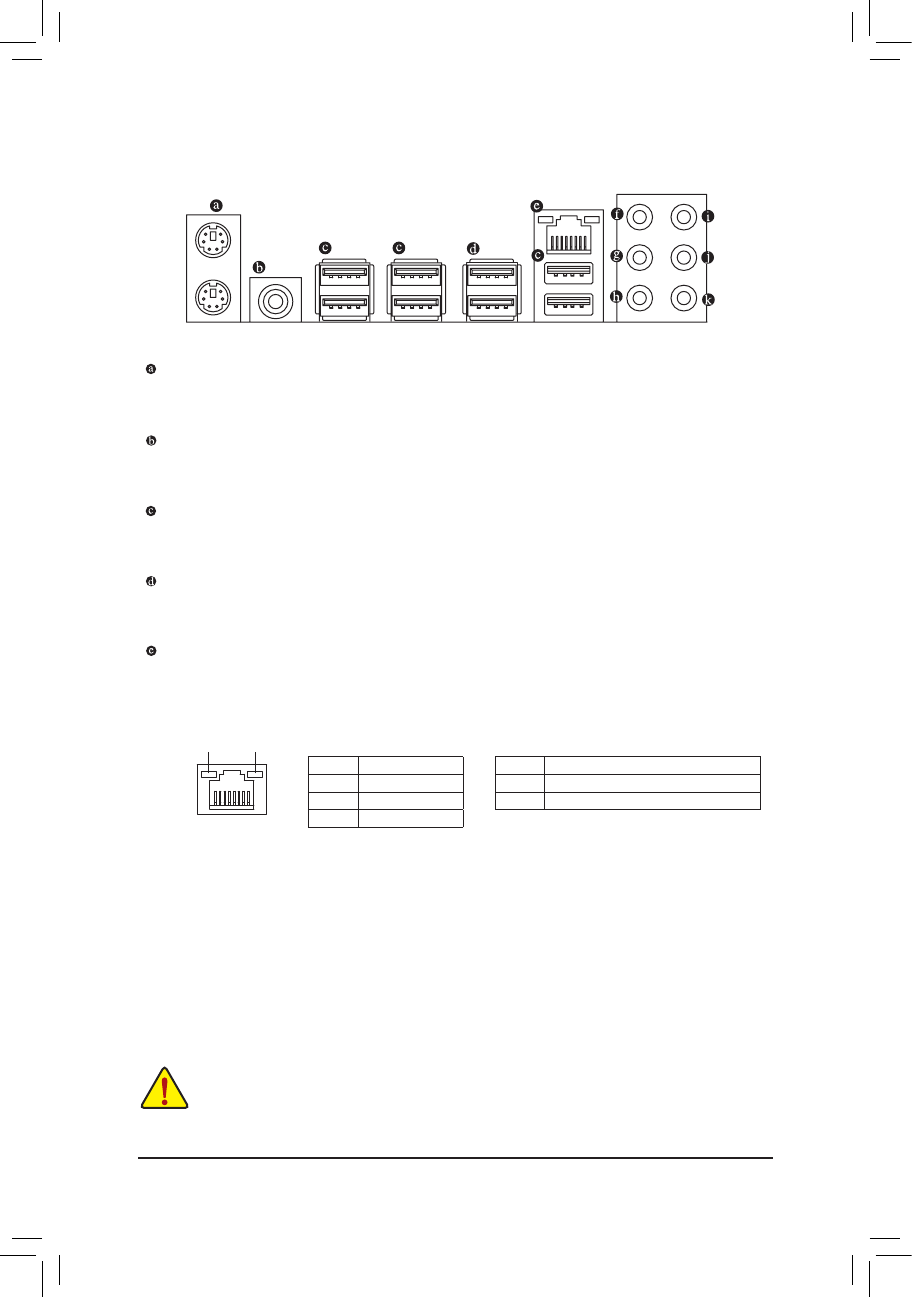

1-6  Back Panel Connectors

When removing the cable connected to a back panel connector, first remove the cable from your

•

device and then remove it from the motherboard.
When  removing  the  cable,  pull  it  straight  out  from  the  connector.  Do  not  rock  it  side  to  side  to

•

prevent an electrical short inside the cable connector.

Activity LED:

Connection/Speed LED:

Activity LED

Connection/

Speed LED

LAN Port

PS/2 Keyboard and PS/2 Mouse Port

Use the upper port (green) to connect a PS/2 mouse and the lower port (purple) to connect a PS/2
keyboard.

Coaxial S/PDIF Out Connector

This connector provides digital audio out to an external audio system that supports digital coaxial audio.
Before using this feature, ensure that your audio system provides a coaxial digital audio in connector.

USB 2.0/1.1 Port

The USB port supports the USB 2.0/1.1 specification. Use this port for USB devices such as a USB key

-

board/mouse, USB printer, USB flash drive and etc.

USB 3.0/2.0 Port

The USB 3.0 port supports the USB 3.0 specification and is compatible to the USB 2.0/1.1 specification.
Use this port for USB devices such as a USB keyboard/mouse, USB printer, USB flash drive and etc.

RJ-45 LAN Port

The  Gigabit  Ethernet  LAN  port  provides  Internet  connection  at  up  to  1  Gbps  data  rate.  The  following
describes the states of the LAN port LEDs.

State

Description

Orange 1 Gbps data rate
Green

100 Mbps data rate

Off

10 Mbps data rate

State

Description

Blinking Data Transmission or receiving is occurring
Off

No data transmission or receiving is occurring
