- 16 -
Hardware Installation

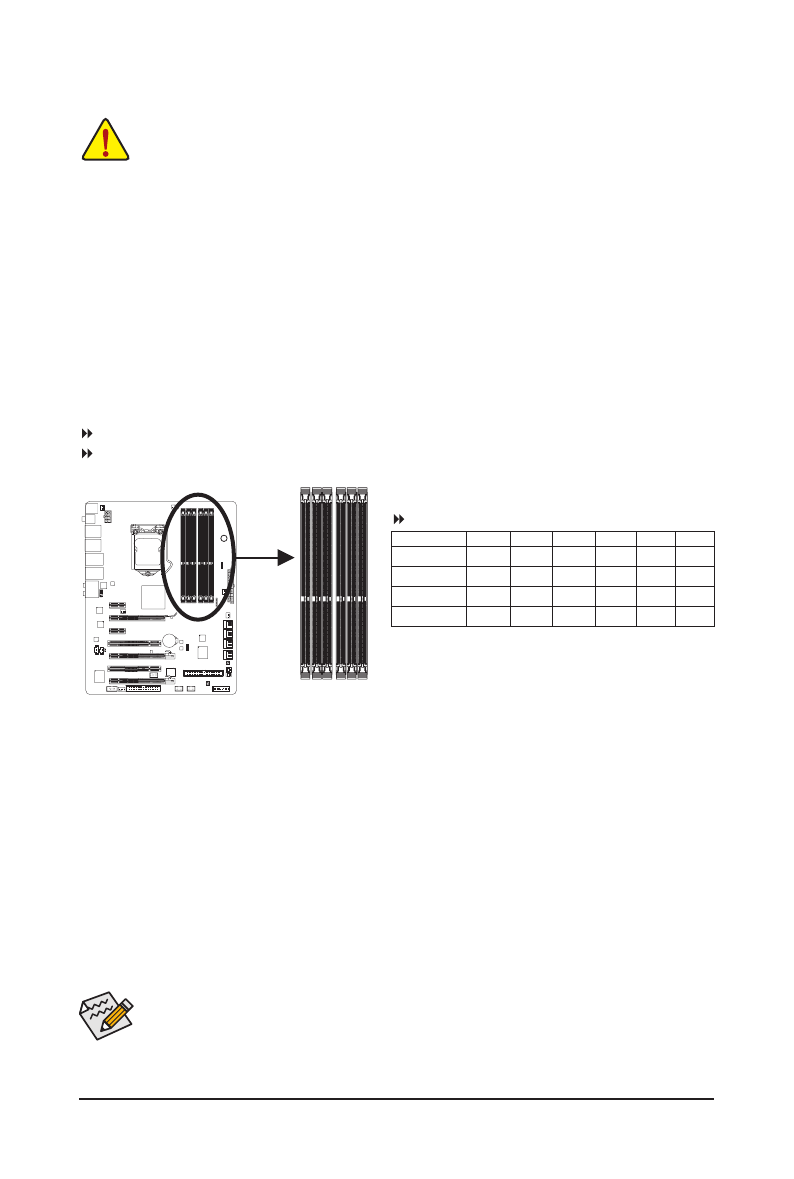

1-4 Installing the Memory
Read the following guidelines before you begin to install the memory:
•
Make sure that the motherboard supports the memory. It is recommended that memory of the
same capacity, brand, speed, and chips be used.
(Go to GIGABYTE's website for the latest memory support list.)
•
Always turn off the computer and unplug the power cord from the power outlet before installing
the memory to prevent hardware damage.
•
Memory modules have a foolproof design. A memory module can be installed in only one direc-
tion. If you are unable to insert the memory, switch the direction.
DDR3_3 DDR3_2 DDR3_1 DDR3_6 DDR3_5 DDR3_4
Dual Channel Memory Configurations Table
(SS=Single-Sided, DS=Double-Sided, "- -"=No Memory)
If only one DDR3 memory module is installed, be sure to install it in the DDR3_1 or DDR3_4.
1-4-1 Dual Channel Memory Configuration
This motherboard provides six DDR3 memory sockets and supports Dual Channel Technology. After the
memory is installed, the BIOS will automatically detect the specifications and capacity of the memory. En
-
abling Dual Channel memory mode will double the original memory bandwidth.
The six DDR3 memory sockets are divided into two channels and each channel has two memory sockets as
following:
Channel 0: DDR3_1, DDR3_2, DDR3_3
Channel 1: DDR3_4, DDR3_5, DDR3_6
Due to CPU limitations, read the following guidelines before installing the memory in Dual Channel mode.
1. Dual Channel mode cannot be enabled if only one DDR3 memory module is installed.
2. When enabling Dual Channel mode, it is recommended that memory of the same capacity, brand,
speed for optimum performance. When enabling Dual Channel mode with two memory modules, be
sure to install them in the DDR3_1 and DDR3_4 sockets. When enabling Dual Channel mode with
six memory modules, make sure that memory modules to be installed on the DDR3_3, DDR3_2,
DDR3_6, DDR3_5 sockets are all single-sided.
DDR3_3 DDR3_2 DDR3_1 DDR3_6 DDR3_5 DDR3_4
- -
- -
DS/SS
- -
- -
DS/SS
- -
DS/SS
DS/SS
- -
DS/SS DS/SS
DS
- -
DS/SS
DS
- -
DS/SS
SS
SS
DS/SS
SS
SS
DS/SS
Two Module
Four Modules
Six Modules
