Hardware Installation
- 16 -

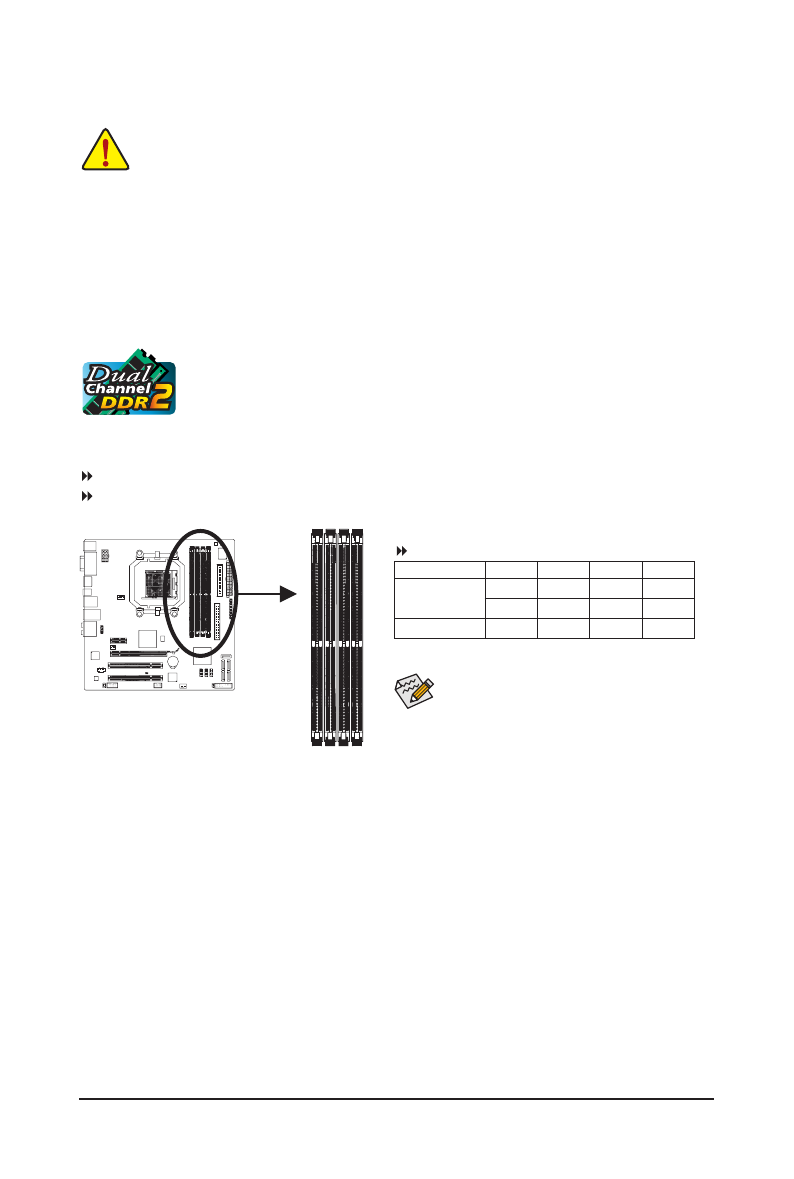

1-4 Installing the Memory
DDR2_1 DDR2_2
DDR2_3 DDR2_4
If two memory modules are to be installed, it is rec-
ommended that you install them in the DDR2_1 and
DDR2_2 sockets.
Due to CPU limitations, read the following guidelines before installing the memory in Dual Channel mode.
1. Dual Channel mode cannot be enabled if only one DDR2 memory module is installed.
2. When enabling Dual Channel mode with two or four memory modules, it is recommended that
memory of the same capacity, brand, speed, and chips be used and installed in the same colored
DDR2 sockets for optimum performance.
Dual Channel Memory Configurations Table
(SS=Single-Sided, DS=Double-Sided, "- -"=No Memory)
DDR2_1 DDR2_2 DDR2_3 DDR2_4
DS/SS
DS/SS
- -
- -
- -
- -
DS/SS
DS/SS
DS/SS
DS/SS
DS/SS
DS/SS
Two Modules
Four Modules
Read the following guidelines before you begin to install the memory:
•
Make sure that the motherboard supports the memory. It is recommended that memory of the
same capacity, brand, speed, and chips be used.
(Go to GIGABYTE's website for the latest memory support list.)
•
Always turn off the computer and unplug the power cord from the power outlet before installing
the memory to prevent hardware damage.
•
Memory modules have a foolproof design. A memory module can be installed in only one direc-
tion. If you are unable to insert the memory, switch the direction.
1-4-1 Dual Channel Memory Configuration
This motherboard provides four DDR2 memory sockets and supports Dual Channel Tech-
nology. After the memory is installed, the BIOS will automatically detect the specifications
and capacity of the memory. Enabling Dual Channel memory mode will double the original
memory bandwidth.
The four DDR2 memory sockets are divided into two channels and each channel has two memory sockets as
following:
Channel 0: DDR2_1, DDR2_3
Channel 1: DDR2_2, DDR2_4
