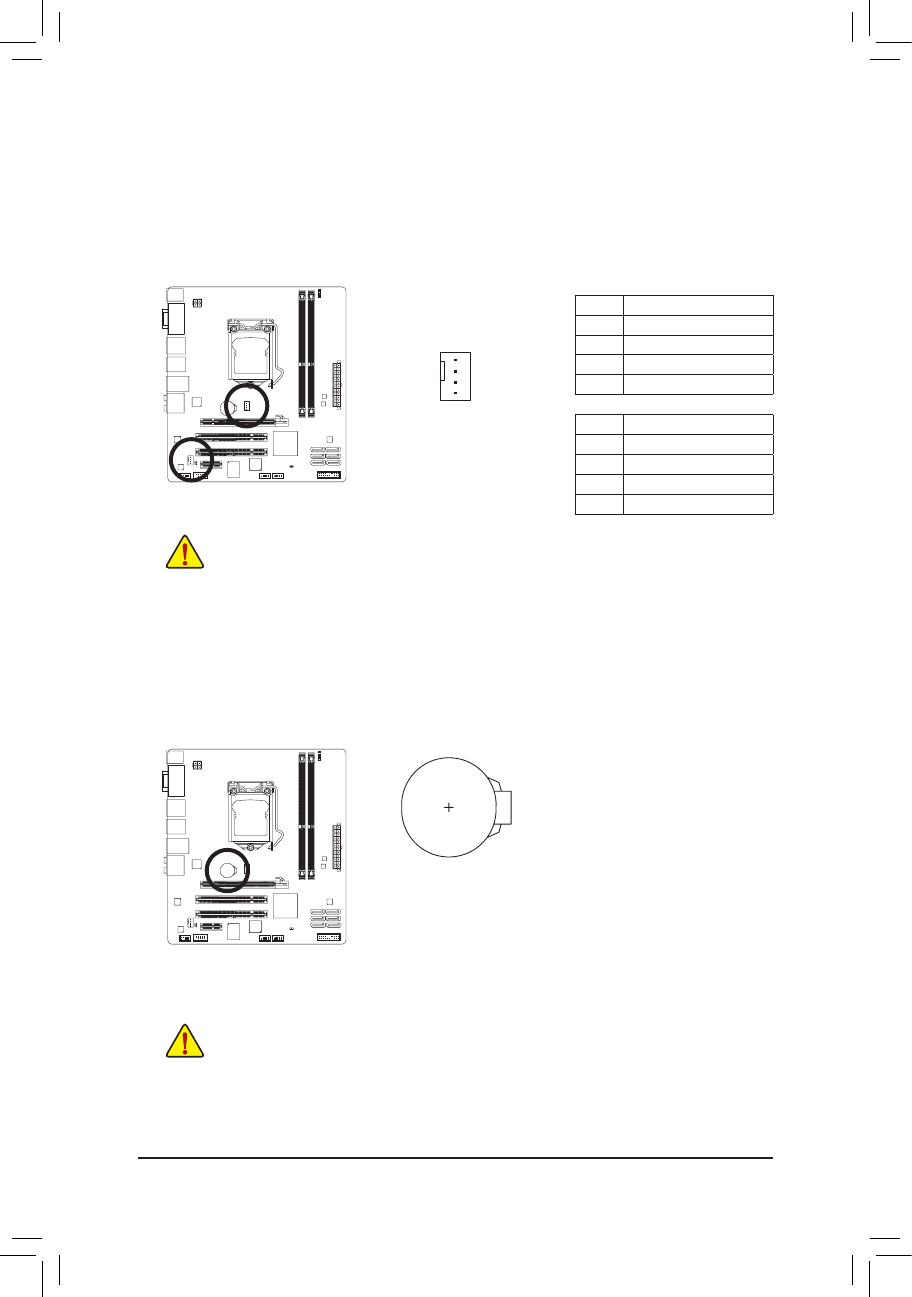

- 23 -

Hardware Installation

3/4) CPU_FAN/SYS_FAN (Fan Headers)



The  motherboard  has  a  4-pin  CPU  fan  header  (CPU_FAN)  and  a  4-pin  (SYS_FAN).  Most  fan  headers
possess a foolproof insertion design. When connecting a fan cable, be sure to connect it in the correct

orientation (the black connector wire is the ground wire). The motherboard supports CPU fan speed con-

trol, which requires the use of a CPU fan with fan speed control design. For optimum heat dissipation, it

is recommended that a system fan be installed inside the chassis.

  Be sure to connect fan cables to the fan headers to prevent your CPU and system from over-

heating. Overheating may result in damage to the CPU or the system may hang.

  These  fan  headers  are  not  configuration  jumper  blocks.  Do  not  place  a  jumper  cap  on  the

headers.

5)  BAT (Battery)



The battery provides power to keep the values (such as BIOS configurations, date, and time information)

in the CMOS when the computer is turned off. Replace the battery when the battery voltage drops to a

low level, or the CMOS values may not be accurate or may be lost.

You may clear the CMOS values by removing the battery:

1.  Turn off your computer and unplug the power cord.

2.  Gently remove the battery from the battery holder and wait for one minute.

(Or use a metal object like a screwdriver to touch the positive and negative

terminals of the battery holder, making them short for 5 seconds.)

3.  Replace the battery.

4.  Plug in the power cord and restart your computer.

  Always turn off your computer and unplug the power cord before replacing the battery.

  Replace the battery with an equivalent one. Danger of explosion if the battery is replaced with an incorrect model.

  Contact the place of purchase or local dealer if you are not able to replace the battery by yourself or uncertain about the bat-

tery model.

  When installing the battery, note the orientation of the positive side (+) and the negative side (-) of the battery (the positive

side should face up).

  Used batteries must be handled in accordance with local environmental regulations.

CPU_FAN:

Pin No.

Definition

1

GND

2

+12V / Speed Control

3

Sense

4

Speed Control

SYS_FAN1:

Pin No.

Definition

1

GND

2

+12V / Speed Control

3

Sense

4

Reserve

DEBUG

PORT

G.QBOFM

1
