Hardware Installation

- 18 -

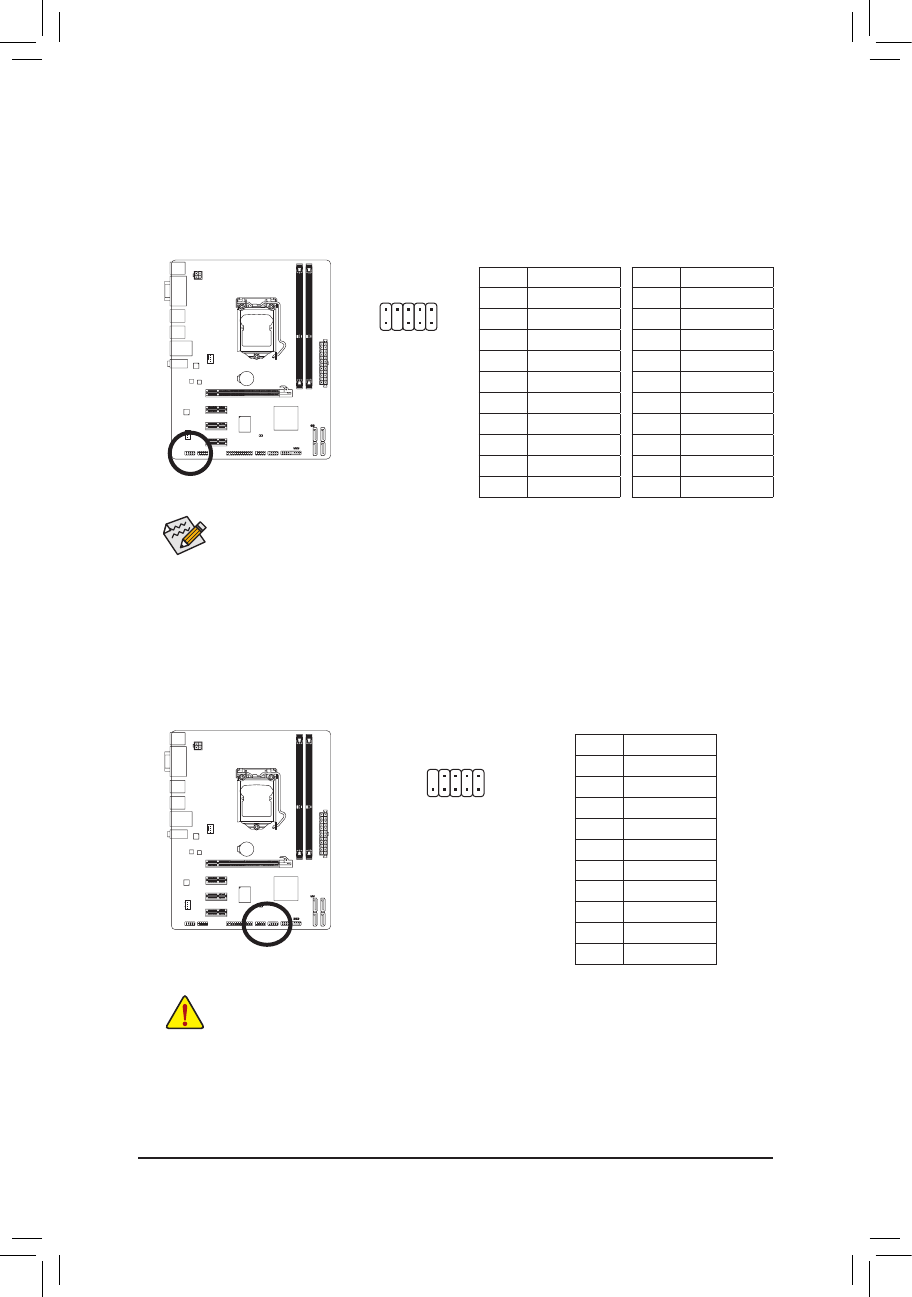

7)  F_AUDIO (Front Panel Audio Header)

The front panel audio header supports Intel High Definition audio (HD) and AC'97 audio. You may connect

your chassis front panel audio module to this header. Make sure the wire assignments of the module con-

nector match the pin assignments of the motherboard header. Incorrect connection between the module

connector and the motherboard header will make the device unable to work or even damage it.

The front panel audio header supports HD audio by default.

•

Audio signals will be present on both of the front and back panel audio connections simultane-

•

ously.

Some chassis provide a front panel audio module that has separated connectors on each wire

•

instead  of  a  single  plug.  For  information  about  connecting  the  front  panel  audio  module  that

has different wire assignments, please contact the chassis manufacturer.

For HD Front Panel Audio: For AC'97 Front Panel Audio:

Pin No.

Definition

1

MIC2_L

2

GND

3

MIC2_R

4

-ACZ_DET

5

LINE2_R

6

GND

7

FAUDIO_JD

8

No Pin

9

LINE2_L

10

GND

Pin No.

Definition

1

MIC

2

GND

3

MIC Power

4

NC

5

Line Out (R)

6

NC

7

NC

8

No Pin

9

Line Out (L)

10

NC

1

2

9

10

8)  F_USB1/2 (USB 2.0/1.1 Headers)

The headers conform to USB 2.0/1.1 specification. Each USB header can provide two USB ports via an

optional USB bracket. For purchasing the optional USB bracket, please contact the local dealer.

Do not plug the IEEE 1394 bracket (2x5-pin) cable into the USB header.

•

Prior  to  installing  the  USB  bracket,  be  sure  to  turn  off  your  computer  and  unplug  the  power

•

cord from the power outlet to prevent damage to the USB bracket.

Pin No.

Definition

1

Power (5V)

2

Power (5V)

3

USB DX-

4

USB DY-

5

USB DX+

6

USB DY+

7

GND

8

GND

9

No Pin

10

NC

10

9

2

1
