- 19 -

Hardware Installation

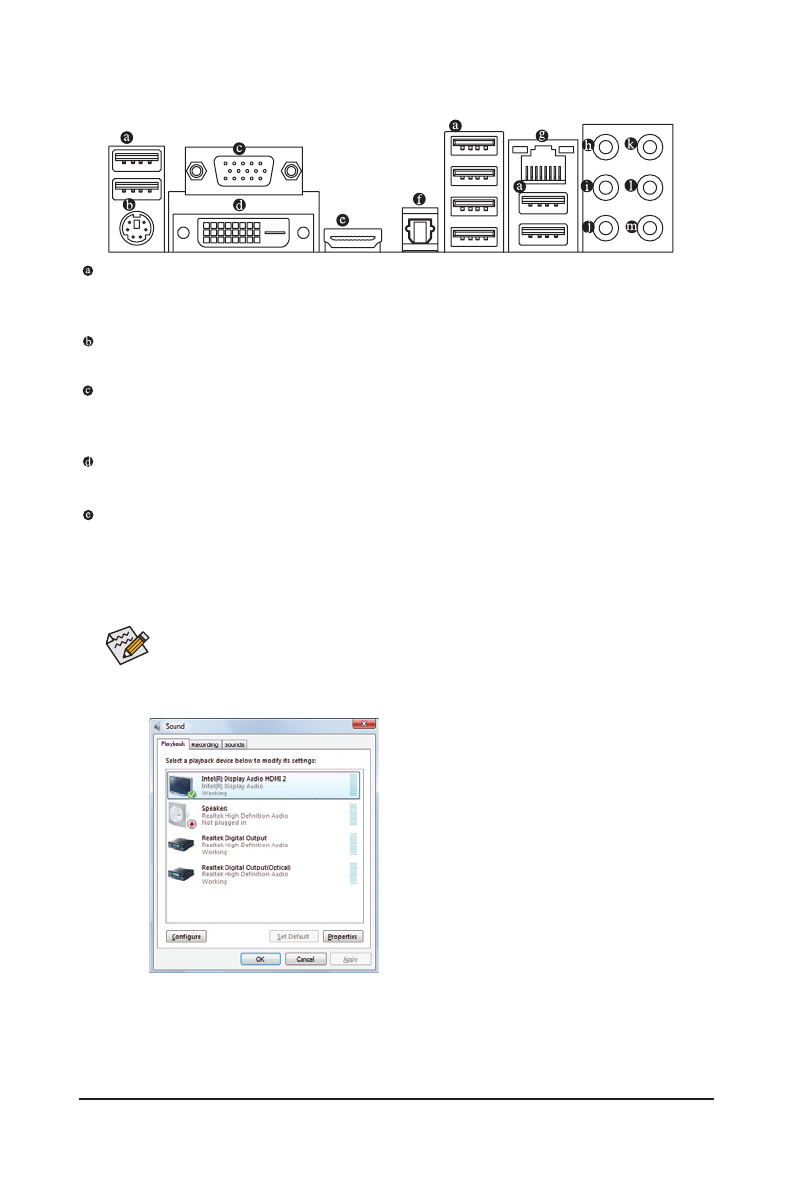

1-6  Back Panel Connectors

  USB Port

The USB port supports the USB 2.0/1.1 specification. Use this port for USB devices such as a USB key

-

board/mouse, USB printer, USB flash drive and etc.

  PS/2 Keyboard/Mouse Port

Use this port a PS/2 keyboard or mouse.

  D-Sub Port

(Note 1)

The D-Sub port supports a 15-pin D-Sub connector. Connect a monitor that supports D-Sub connection
to this port.

  DVI-D Port

(Note 1)(Note 2)(Note 3)

The DVI-D port supports DVI-D specifictation. Connect a monitor that supports DVI-D connection to this port.

  HDMI Port

(Note 1)(Note 3)

The  HDMI  (High-Definition  Multimedia  Interface)  provides  an  all-digital  audio/video  interface  to  transmit  the

uncompressed audio/video signals and is HDCP compliant. Connect the HDMI audio/video device to this port.
The HDMI Technology can support a maximum resolution of 1920x1080p but the actual resolutions supported
depend on the monitor being used.

•  After installing the HDMI device, make sure the default device for sound playback is the HDMI

device. (The item name may differ from operating system. Refer to the figures below for details.)

•  Please note the HDMI audio output only supports AC3, DTS and 2-channel-LPCM formats. (AC3 and

DTS require the use of an external decoder for decoding.)

In Windows Vista, select Start>Control Panel>Sound>
Playback, set

Intel(R) Display Audio HDMI 2

 to the

default playback device.

(Note 1)(Note 2)(Note 3)

 (Note 1)

(Note 1)(Note 3)

(Note 1)  To use the onboard D-Sub, DVI-D, and HDMI ports, you must install an Intel CPU with integrated


graphics.

(Note 2)   The DVI-D port does not support D-Sub connection by adapter.

(Note 3)   Simultaneous  output  for  DVI-D  and  HDMI  is  not  supported  when  in  the  BIOS  Setup  program  or

when during the POST screens.
