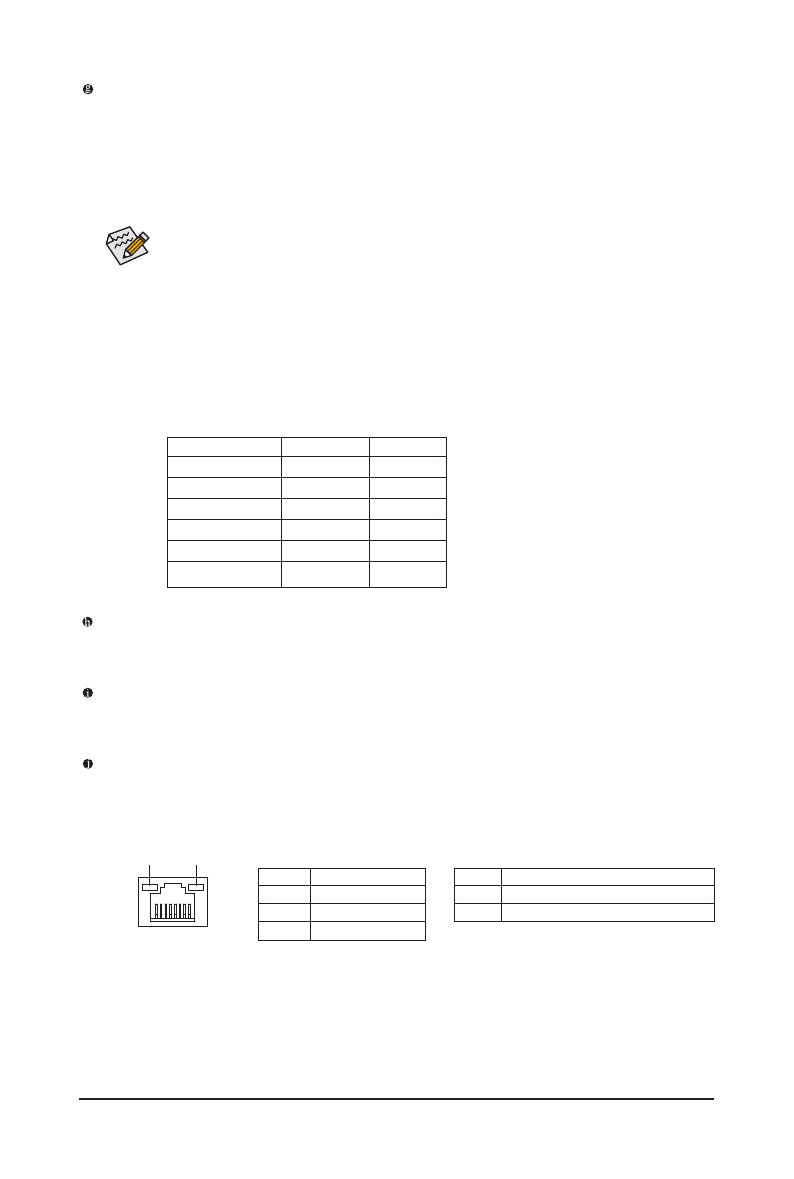

Hardware Installation
- 20 -
DisplayPort
(Note 1) (Note 3)
DisplayPort is one of the new generation interface technologies that delivers high quality digital imaging
and audio, supporting bi-directional audio transmition. DisplayPort can support both DPCP and HDCP
content protection mechanisms. Connect the audio/video device that supports DisplayPort to this port.
The DisplayPort Technology can support a maximum resolution of 2560x1600p but the actual resolutions
supported depend on the monitor being used.
(Note 1) To use the onboard DisplayPort, HDMI, DVI-D, and D-Sub ports, you must install an Intel CPU with
integrated graphics.
(Note 2) The DVI-D port does not support D-Sub connection by adapter.
(Note 3) You can use only one of the onboard digital graphics ports (DisplayPort, HDMI, and DVI-D) for out-
put when in the BIOS Setup program or when during the POST screens.
After installing the DisplayPort device, make sure the default device for sound playback is the
DisplayPort device. (The item name may differ from operating system. For example, in Windows
Vista, go to Start>Control Panel>Sound>Playback and set the DisplayPort device as the default
playback device. Refer to the HDMI settings information on the previous page for the configura-
tion dialog box.)
IEEE 1394a Port
The IEEE 1394 port supports the IEEE 1394a specification, featuring high speed, high bandwidth and
hotplug capabilities. Use this port for an IEEE 1394a device.
eSATA 3Gb/s Port
The eSATA 3Gb/s port conforms to SATA 3Gb/s standard and is compatible with SATA 1.5Gb/s standard.
Use the port to connect an external SATA device.
RJ-45 LAN Port
The Gigabit Ethernet LAN port provides Internet connection at up to 1 Gbps data rate. The following de-
scribes the states of the LAN port LEDs.
Activity LED:
State
Description
Blinking Data transmission or receiving is occurring
Off
No data transmission or receiving is occurring
Connection/Speed LED:
State
Description
Orange
1 Gbps data rate
Green
100 Mbps data rate
Off
10 Mbps data rate
Activity LED
Connection/
Speed LED
LAN Port
Dual Display Configurations for the Onboard Graphics:
The table below shows the supported/unsupported dual display configurations for the onboard graphics
ports in different environments.
Combination
POST/BIOS
Windows
DVI-D + D-Sub
Yes
Yes
DVI-D + HDMI
No
Yes
DVI-D + DP
No
Yes
HDMI + D-Sub
Yes
Yes
HDMI + DP
No
Yes
DP + D-Sub
No
Yes
