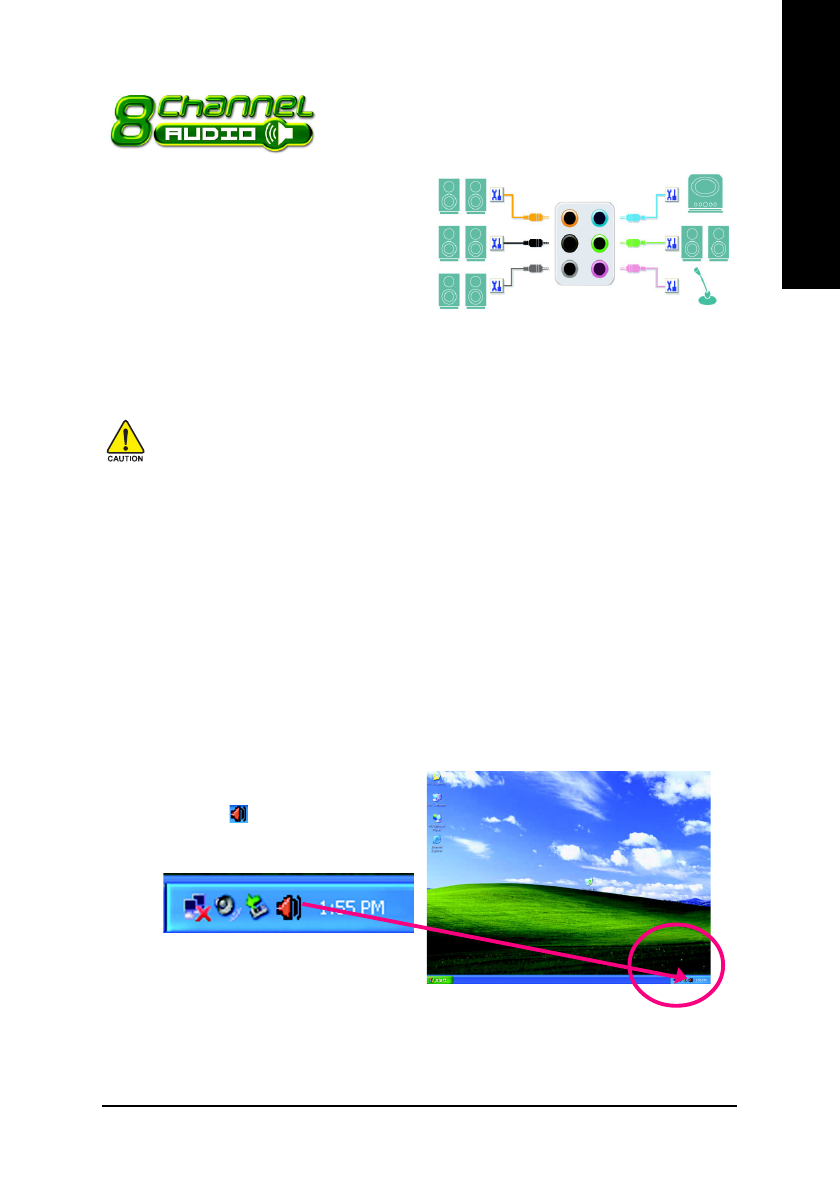

STEP 1 :
After installation of the audio driver, you should find
an Audio Manager

 icon in your system tray

(you can also find the icon in Control Panel).  Double-
click the icon to open the Audio Control Panel.

4-1-4 2- / 4- / 6- / 8- Channel Audio Function

Introduction

Note that if you wish to connect a microphone, you MUST connect it to the default Mic In jack
for the microphone to work correctly.

The default speaker settings for the 6 audio jacks are
a s   s h o w n   i n   t h e   p i c t u r e   t o   t h e   r i g h t .   T h e   j a c k
retasking capability supported by HD Audio allows
users to change the function for each audio jack by
the audio software provided. For example, if  a
rear speaker is plugged into the center/subwoofer
s p e a k e r   o u t   j a c k ,   y o u   c a n   c h a n g e   t h e   c e n t e r /
subwoofer speaker out jack to fucntion as a rear
speaker out jack via the audio software. Please
follow the steps to install the function. (Following
pictures are in Windows XP)

H D   A u d i o

With multiple built-in high quality digital-to-analog converters (DACs) that support audio output at up to
192 kHz/24-bit quality and multi-streaming applications, HD Audio is able to handle multiple audio
streams (in and out) simultaneously. Multi-channel audio experiences have become a reality so you
can, for instance,  listen to MP3 music, have an Internet chat, make a telephone call over the Internet,
and etc. all at the same time.

Stereo Speakers Connection and Settings:

We recommend that you use the speaker with amplifier to acquire the best sound effect if the stereo
output is applied.

Line In

Line Out

(Front Speaker Out)

Mic In

Rear Speaker Out

Center/Subwoofer

Speaker Out

Side Speaker

Out
