GA-8IGX Motherboard

When STR/DIMM LED is ON, you do not install / remove DDR from socket.
Please note that the DIMM module can only fit in one direction due to
the two notches.  Wrong orientation will cause improper installation.
Please change the insert orientation.

DDR

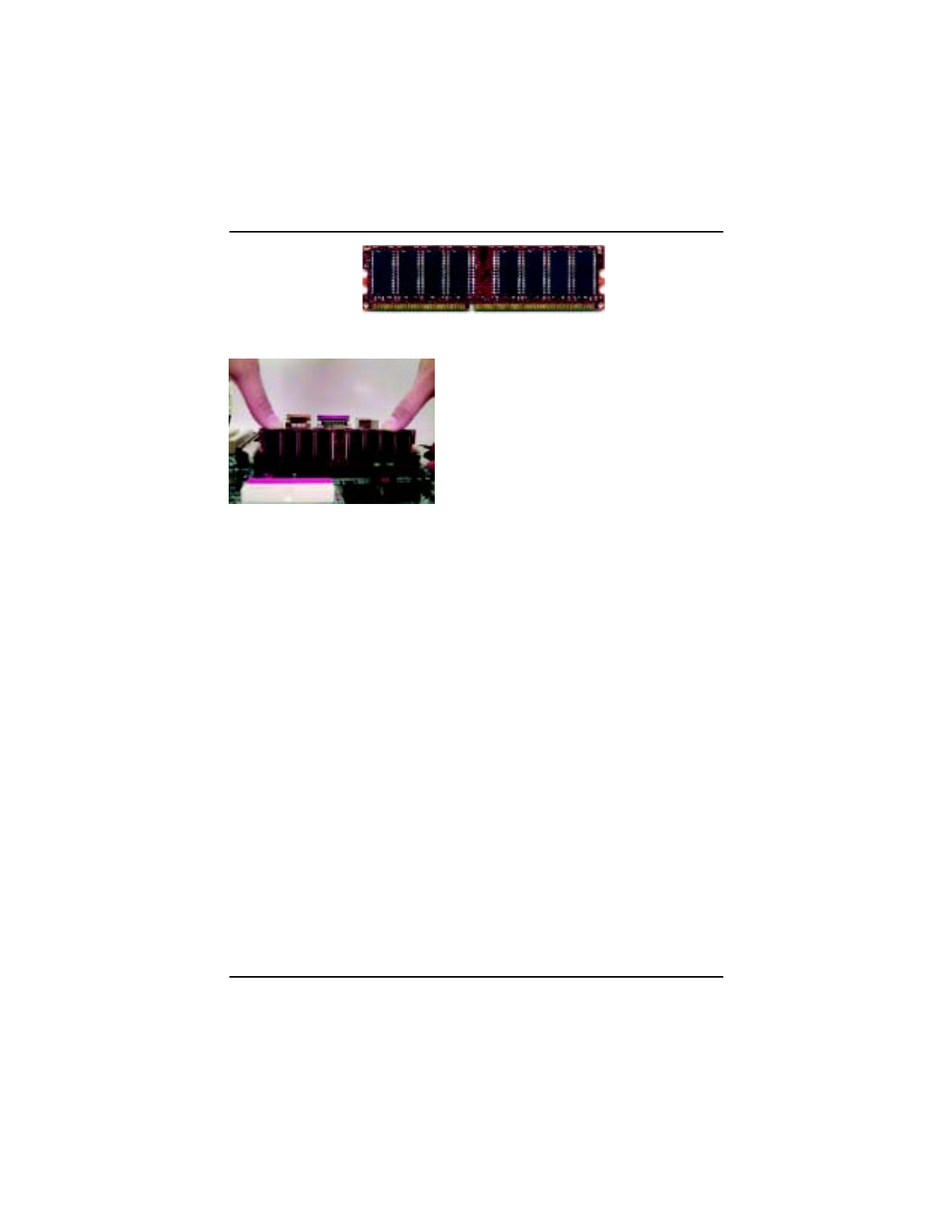

1. The DIMM slot has a notch, so the

DIMMmemory module can only fit in one direction.

2. Insert the DIMM memory module verticallyinto the

DIMM slot. Then push it down.

3. Close the plastic clip at both edges of theDIMM slots

to lock the DIMM module.
Reverse the installation steps when you wish to
remove the DIMM module.

Established on the existing SDRAM industry infrastructure, DDR (Double Data Rate) memory is a

high performance and cost-effective solution that allows easy adoption for memory vendors, OEMs and
system integrators.

DDR memory is a sensible evolutionary solution for the PC industry that builds on the existing

SDRAM infrastructure, yet makes awesome advances in solving the system performance bottleneck by
doubling the memory bandwidth. DDR SDRAM will offer a superior solution and migration path from
existing SDRAM designs due to its availability, pricing and overall market support. PC2100 DDR
memory (DDR266) doubles the data rate through reading and writing at both the rising and falling edge of
the clock, achieving data bandwidth 2X greater than PC133 when running with the same DRAM clock
frequency. With peak bandwidth of 2.1GB per second, DDR memory enables system OEMs to build
high performance and low latency DRAM subsystems that are suitable for servers, workstations, high-
end PC's and value desktop SMA systems. With a core voltage of only 2.5 Volts compared to
conventional SDRAM's 3.3 volts, DDR memory is a compelling solution for small form factor desktops
and notebook applications.

DDR Introduction
