Hardware Installation

- 17 -

English

1-6

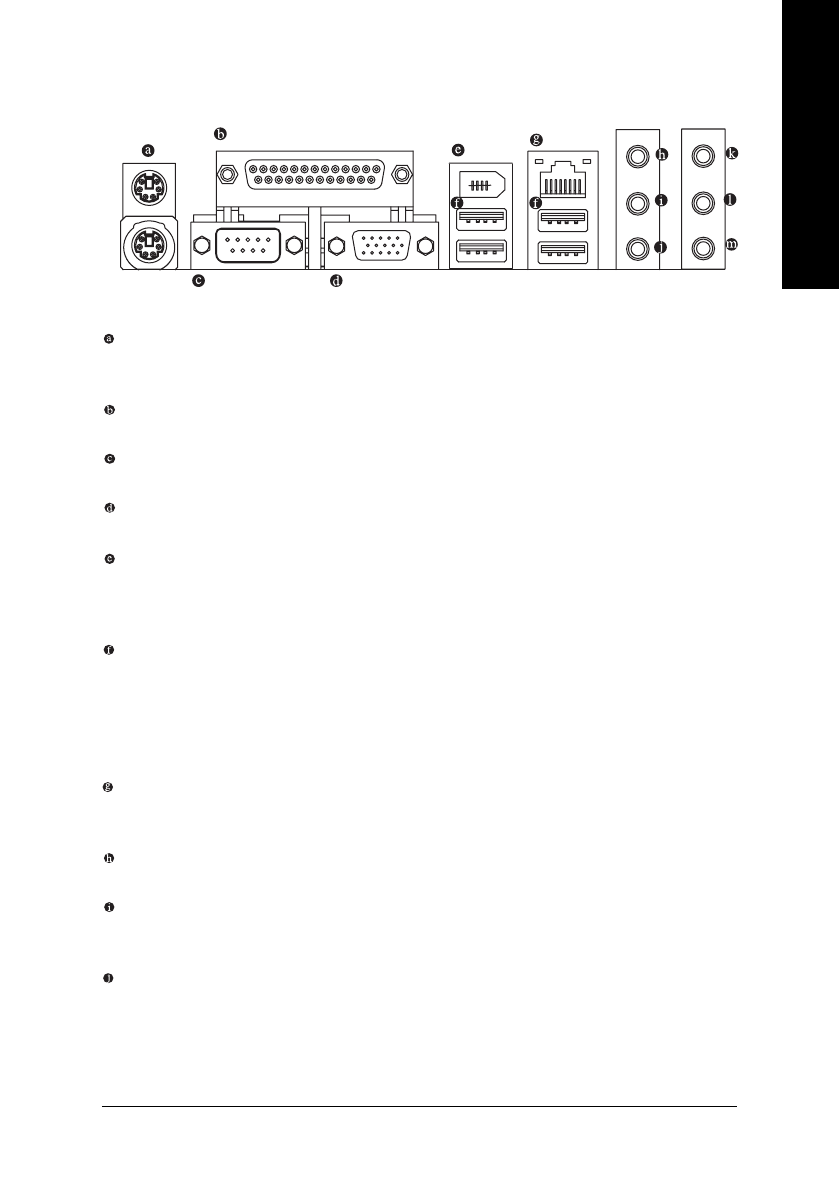

I/O Back Panel Introduction

PS/2 Keyboard and PS/2 Mouse Connector

To install a PS/2 port keyboard and mouse, plug the mouse to the upper port (green) and the
keyboard o the lower port (purple).

Parallel Port

The parallel port allows connection of a printer, scanner and other peripheral devices.

COM A (Serial Port)

Connects to serial-based mouse or data processing devices.

VGA Port

Monitor can be connected to VGA port.

IEEE 1394 Port

Serial interface standard set by Institute of Electrical and Electronics Engineers, which has features
like high speed, highbandwidth and hot plug. ( For optional IEEE1394 cable, please contact your
local dealer.)

USB port

Before you connect your device(s) into USB connector(s), please make sure your device(s) such
as USB keyboard, mouse, scanner, zip, speaker...etc. have a standard USB interface.
Also make sure your OS supports USB controller. If your OS does not support USB controller,
please contact OS vendor for possible patch or driver upgrade. For more information please
contact your OS or device(s) vendors.

LAN Port

The provided Internet connection is Gigabit Ethernet (PCI Express Gigabit), providing data transfer
speeds of 10/100/1000Mbps.

Line In

The default Line In jack. Devices like CD-ROM, walkman etc. can be connected to Line In jack.

Line Out (Front Speaker Out)

The default Line Out (Front Speaker Out) jack. Stereo speakers, earphone or front surround
speakers can be connected to Line Out (Front Speaker Out) jack.

MIC In

The default MIC In jack. Microphone must be connected to MIC In jack.
