Hardware Installation
- 13 -
English

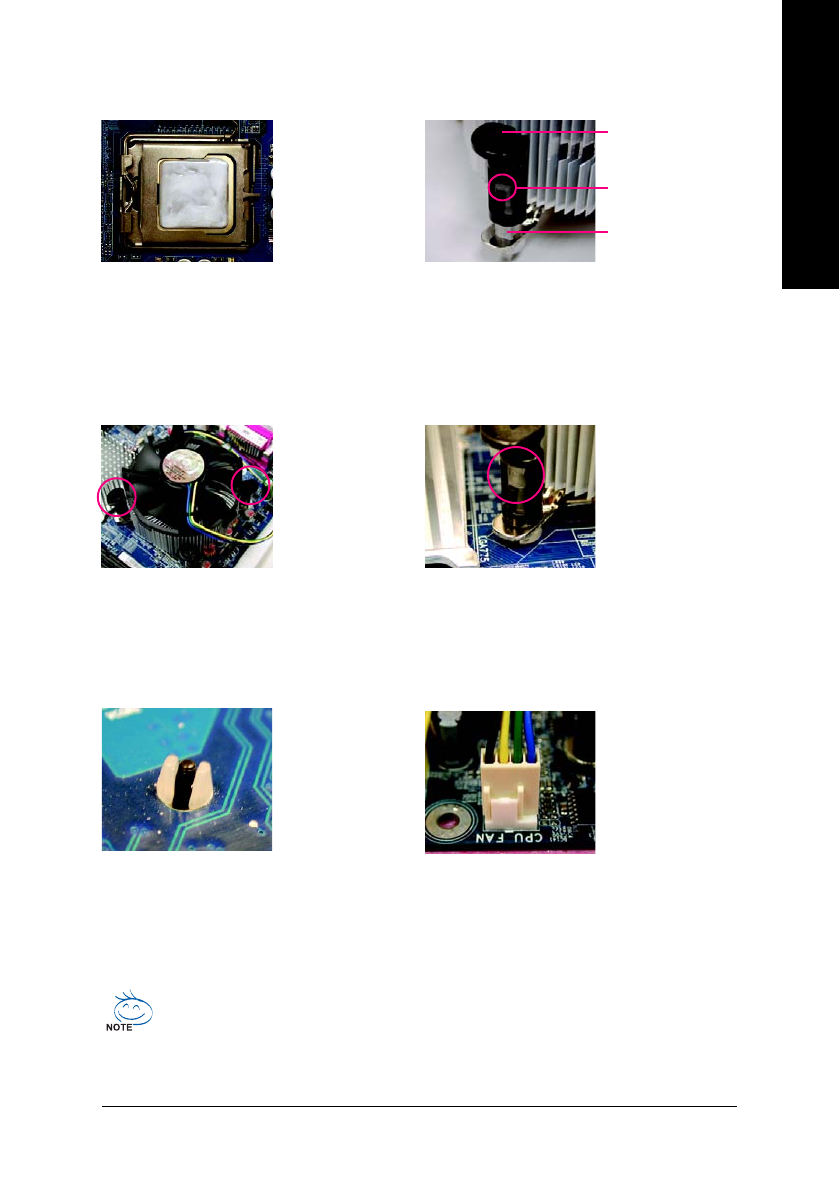

1-3-2 Installation of the Heatsink
Fig.1
Please apply an even layer of heatsink paste on
the surface of the installed CPU.
The heatsink may adhere to the CPU as a result of hardening of the heatsink paste. To prevent
such an occurrence, it is suggested that either thermal tape rather than heat sink paste be used for
heat dissipation or using extreme care when removing the heatsink.
Fig. 6
Finally, please attach the power connector of the
heatsink to the CPU fan header located on the
motherboard.
Fig. 3
Place the heatsink atop the CPU and make sure
t h e p u s h p i n s a i m t o t h e p i n h o l e o n t h e
m o t h e r b o a r d . P r e s s i n g d o w n t h e p u s h p i n s
diagonally.
Fig. 2
(Turning the push pin along the direction of arrow is
to remove the heatsink, on the contrary, is to install.)
Please note the direction of arrow sign on the male
push pin doesn't face inwards before installation. (This
instruction is only for Intel boxed fan)
Fig. 4
Please make sure the Male and Female push pin are
joined closely. (for detailed installation instructions,
please refer to the heatsink installation section of the
user manual)
Male Push Pin
Female Push Pin
The top of Female Push Pin
Fig. 5
Please check the back of motherboard after
installing. If the push pin is inserted as the picture,
the installation is complete.
