GA-8I845GV Series Motherboard
English
[
Audio Connectors
After install onboard audio driver, you may
connect speaker to Line Out jack, microphone to
MIC In jack. Device like CD-ROM,walkman etc.
can be connected to Line-In jack.
Please note:
You are able to use 2-/4-/6-channel audio feature
by S/W selection.
If you want to enable 6-channel function, you
have 2 choose for hardware connection.
Method1:
Connect "Front Speaker" to "Line Out"
Connect "Rear Speaker" to "Line In"
Connect "Center and Subwoofer" to "MIC Out ".
Method2:
You can refer to page 24, and contact your
nearest dealer for optional SUR_CEN cable.
If you want the detail information for 2-/4-/6-channel audio setup
installation, please refer to page 72.
Z

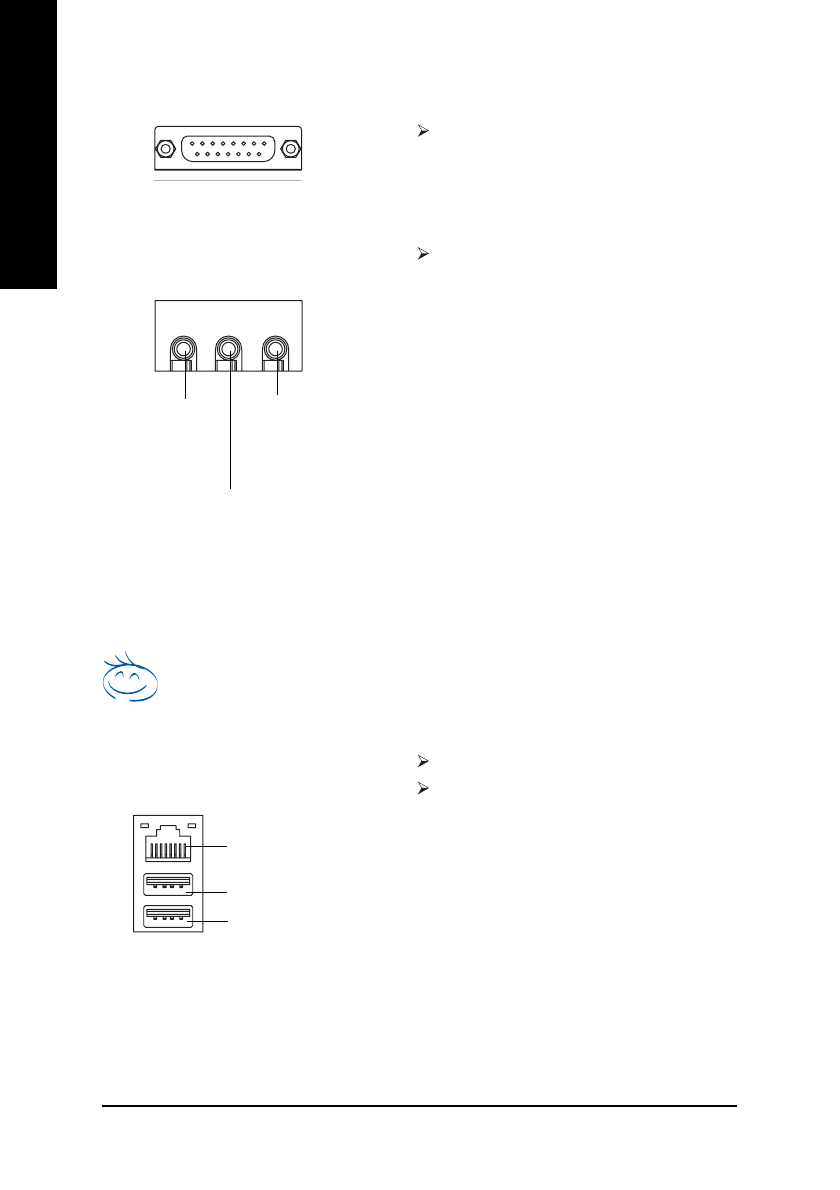

Game / MIDI Ports
This connector supports joystick, MIDI keyboard
and other relate audio devices.
Joystick / MIDI (15 pin Female)
Line In
(Rear Speaker)
MIC In
(Center and Subwoofer)
Line Out
(Front Speaker)
\
USB / LAN* Connector
LAN is fast Ethernet with 10/100Mbps speed.*
Before you connect your device(s) into USB
connector(s), please make sure your device(s)
such as USB keyboard,mouse, scanner, zip,
speaker...etc. Have a standard USB interface.
Also make sure your OS supports USB controller.
If your OS does not support USB controller, please
contact OS vendor for possible patch or driver
upgrade. For more information please contact your
OS or device(s) vendors.
USB 0
USB 1
LAN*
* For GA-8I845GV only.
