2. DIN REAR-MOUNT (Method B)
For this method, use the screw holes in the lateral sides of the unit. Fix the unit with the help of the factory
radio mounting brackets.

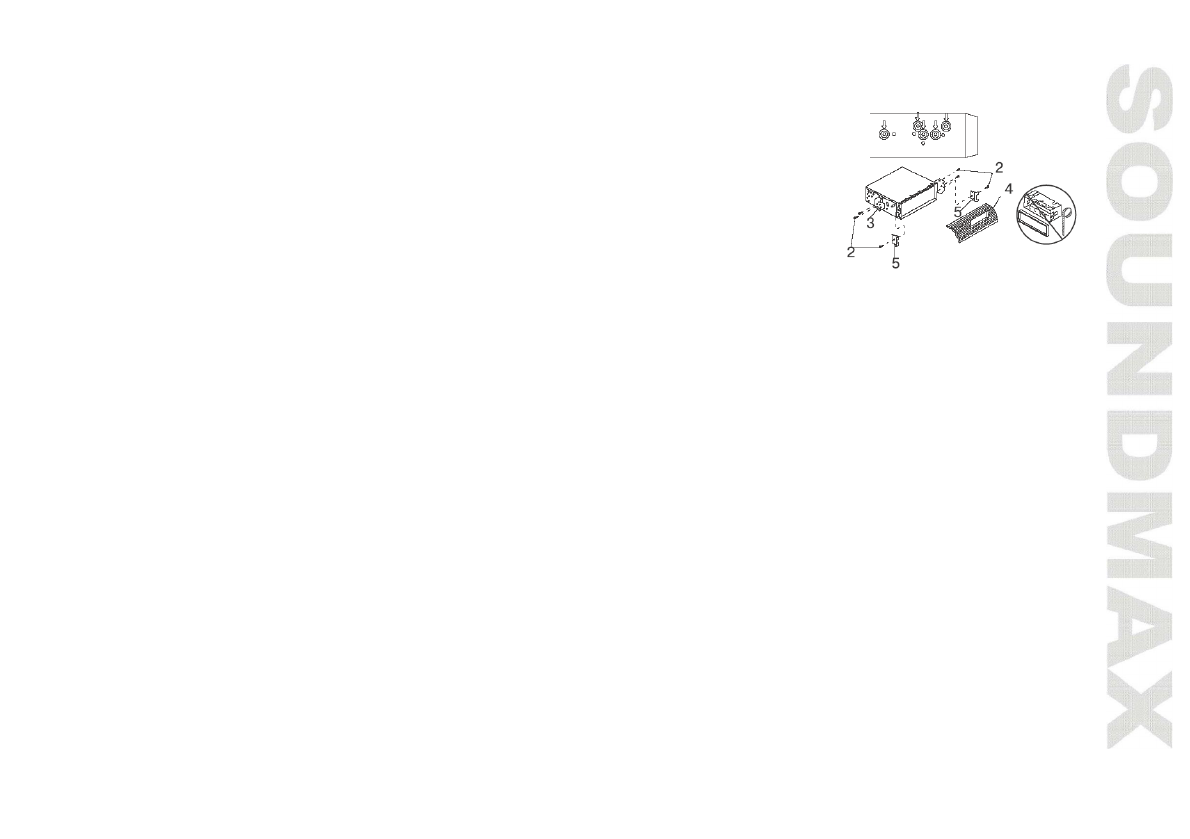

1. Select a position in which the screw holes of the brackets (3) are aligned
with the screw holes in the unit body, and screw in two screws (2) in each side.
2. Screw.
3. Factory radio mounting brackets.
4. Vehicle dashboard.
5. Lock (remove this part).
Note: The outer trim frame and mounting sleeve are not used for method of installation.

Installing the front panel
Insert the left lockers of the panel into the fixing holes on the left side of the body, then press on the right
part of the panel until a click.
To detach the front panel, press OPEN button. When it unfastens, carefully pull the panel out.

Anti-theft system
The front panel of this unit can be stored in the included protective case when not in used and carried away
when you leave the vehicle to deter theft.
Switch  off  the  power  of  the  unit.  Detach  the  front  panel,  then  put  it  to  the  protective  case  and  take  it  with
you.
Cautions: The control panel can easily be damaged by shocks. After removing it, place it in a protective
case and be careful not to drop it or subject it to strong shocks.
The rear connector that connects the main unit and the control panel is an extremely important part. Be
careful not to damage it by pressing on it with fingernails, pens, screwdrivers, etc.
Note: If the control panel is dirty, wipe off the dirt with soft, dry cloth only. And use a cotton swab soaked
in isopropyl alcohol to clean the socket on the back of the control panel.
