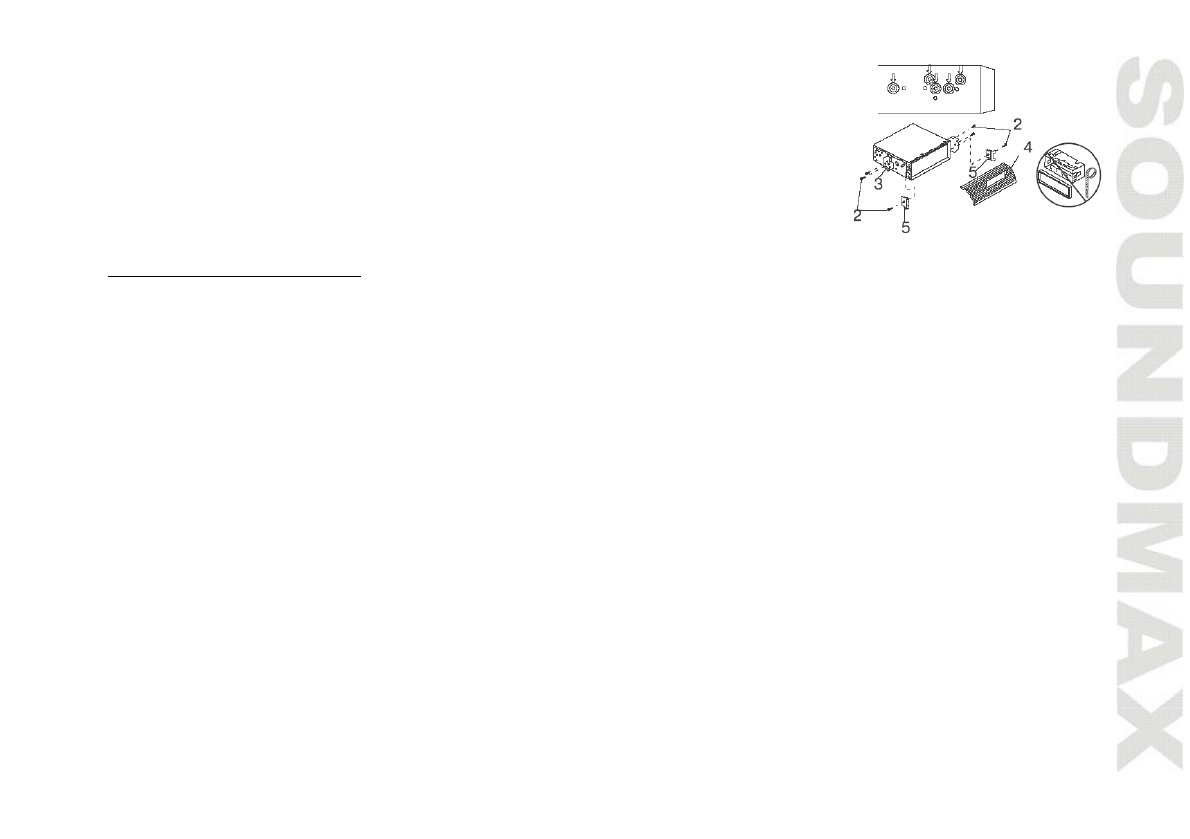

1. Select a position in which the screw holes of the brackets (3) are aligned

with the screw holes in the unit body, and screw in two screws (2) in each side.

2. Screw.

3. Factory radio mounting brackets.

4. Vehicle dashboard.

5. Lock (remove this part).

Note:  The  outer  trim  frame  and  mounting  sleeve  are  not  used  for  method  of

installation.

Detachable control panel

Detaching the control panel

Press the OPEN button on the front panel. The panel will go down.

Push the panel to the left and then pull it towards you.

Attaching the control panel

Insert the left side of the control panel into the main unit.

Note: The control panel must be attached into the T-Joint.

Press the right side of the control panel until a click sound is heard.

Close the panel.

Caution:

The control panel can easily be damaged by shocks. After removing it, place it in the protective case and be

careful not to drop it or subject it to strong shocks. The rear connector that connects the main unit and the

control panel is an extremely important part. Be careful not to damage it by pressing on it with fingernails,

pens, screwdrivers, etc.

If the control panel is dirty, wipe off the dirt with soft, dry cloth only. And use a cotton swab soaked in

isopropyl alcohol to clean the socket on the back of the control panel.

Anti-theft system

The front panel of this unit can be stored in the included protective case when not in used and carried away

when you leave the vehicle to deter theft. Switch off the power of the unit. Detach the front panel, then put

it to the protective case and take it with you.
