EXTERNAL DEVICES

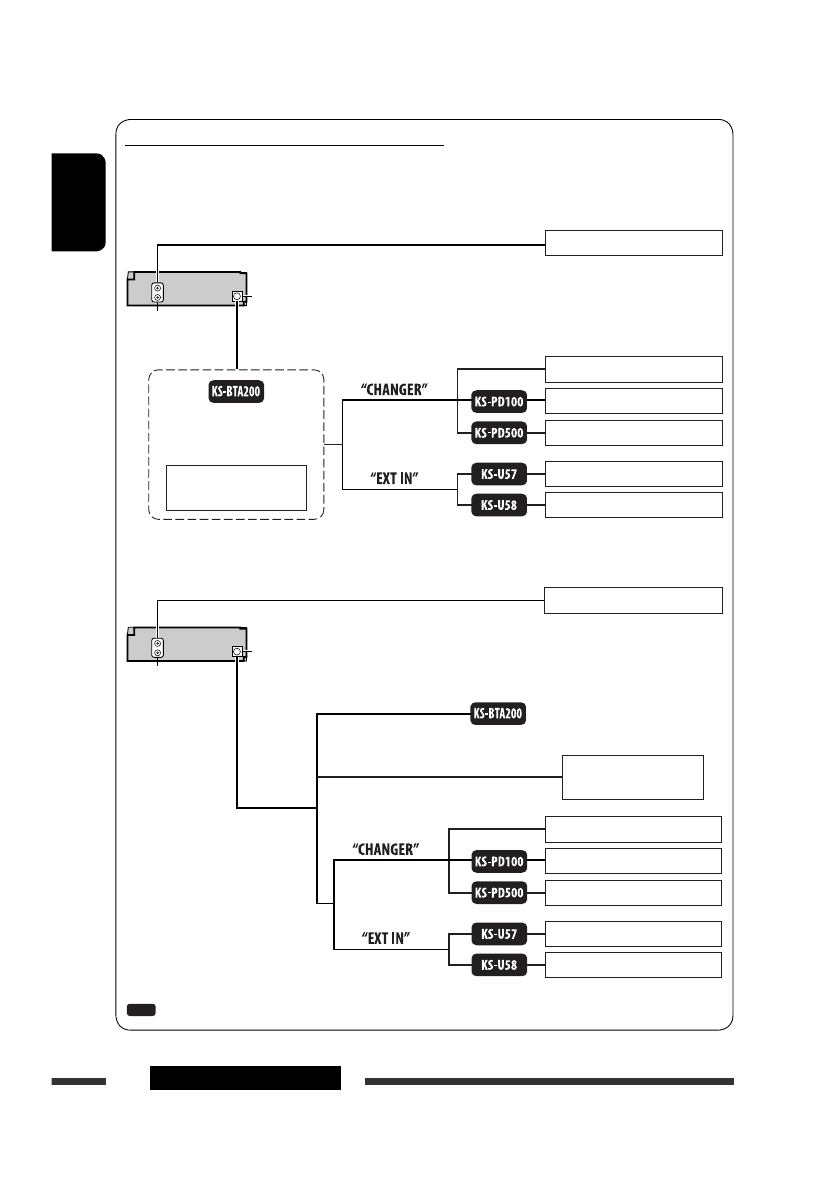

Concept diagram of the external device connection

For connection, see Installation/Connection manual (separate volume).

•

Connection 1 (integrated connection)

JVC CD changer, [36]

Apple iPod, [38]

JVC D. player, [38]

Unit

CD changer jack

(see page 45 of the
”EXT IN” setting)

(see page 45 of the
”EXT IN” setting)

MD player, etc., [39]

:  Adapter (separately purchased)

MD player, etc., [39]

MD player, etc., [39]

LINE IN terminals

JVC DAB tuner, [37]

(see pages 31 – 35)

or

•

Connection 2 (alternative connection)

Unit

CD changer jack

LINE IN terminals

JVC CD changer, [36]

Apple iPod, [38]

JVC D. player, [38]

MD player, etc., [39]

MD player, etc., [39]

JVC DAB tuner, [37]

MD player, etc., [39]

(see pages 31 – 35)

(see page 45 of the
”EXT IN” setting)

(see page 45 of the
”EXT IN” setting)
