7

Installation/Connection

Connection

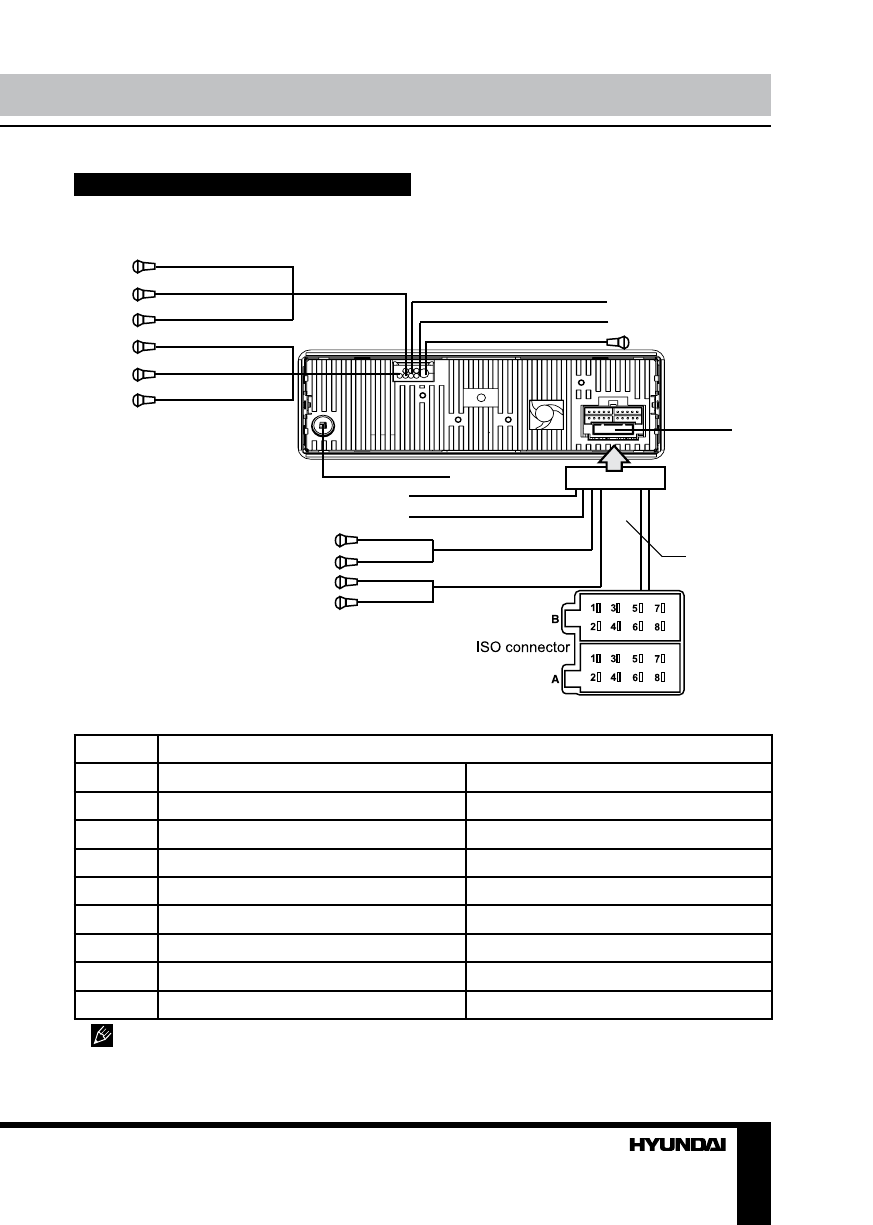

Connection diagram

ISO connection table

Location

Function

Connector A

Connector B

1

-

Rear right (+) - Purple

2

-

Rear right (-) - Purple/Black

3

-

Front right (+) - Grey

4

Battery +12V/Yellow

Front right (-) - Grey/Black

5

Power antenna/Blue

Front left (+) - White

6

-

Front left (-) - White/Black

7

Ignition key (+12V)/Red

Rear left (+) - Green

8

Ground/Black

Rear left (-) - Green/Black

  Power antenna wire is intended for power supply of the antenna and for remote control of

an additional amplifier.

Video out (yellow)

Video in (yellow)

Audio out (red=right)

Audio in (red=right)

RCA AV out

RCA AV in

Audio out (white=left)

Audio in (white=left)

Radio antenna jack

Subwoofer out (blue)

TV antenna jack

Fuse 15 A

GPS antenna (option)

Parking (Brown)

Reverse (Pink)

RCA out (rear) grey

RCA out (front) brown

right (red)

right (red)

left (white)

left (white)

12
