Installation/Connection

5

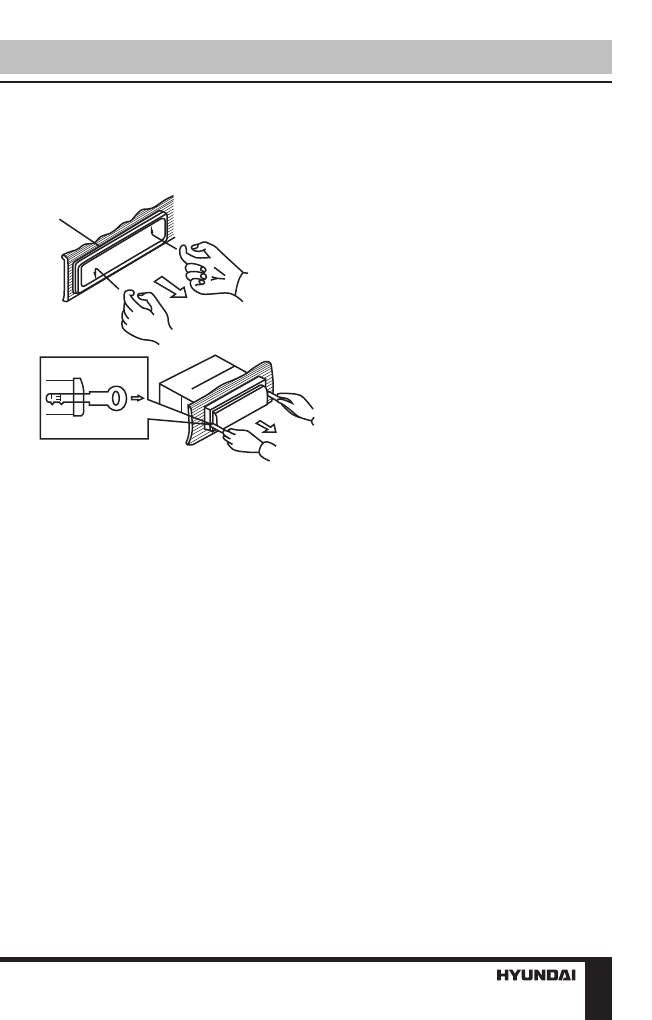

Dismantling the unit

a – Trim frame
b – Frame uninstall direction
c – Release key insertion

в

б

а

1. Switch off the unit and detach the

front panel.

2. Insert your fingers into the groove

in the front side of the trim frame (apply
some effort to detach the frame). Pull
the frame to detach it.

3. Insert the supplied release keys

into the both sides of the unit body
to click, as shown in the picture. To
extract the unit from the dashboard, pull
the release keys or the unit body to pull
it out. Before detaching the unit, ensure
it is not fixed with the metal strap.

Trim frame installation

To install the trim frame, press it

to the unit body and push it to fix it
in place. This should be done before
installing the front panel; otherwise
you are not able to install the trim
frame. When the trim frame being
installed, the side with the groove
should face down and fixed first.
