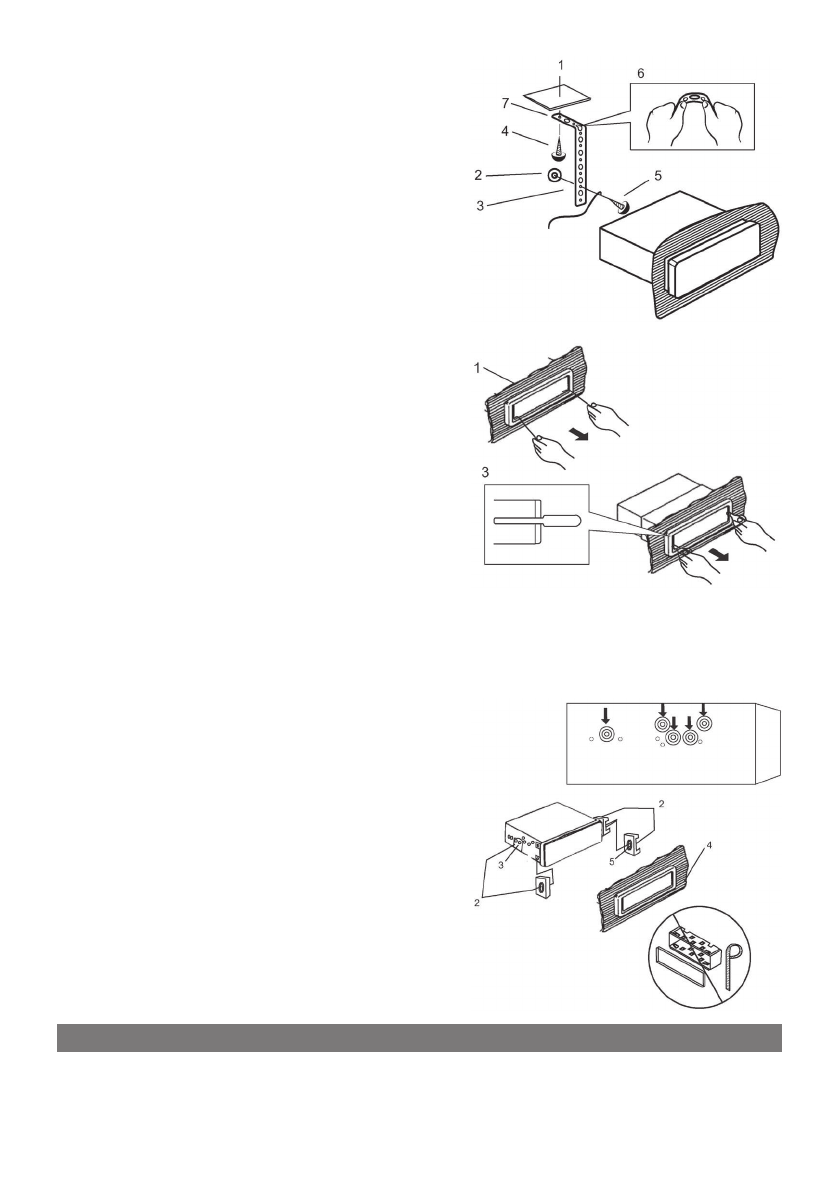

2.1 Dashboard
2.2 Nut (5mm)
2.3 Spring washer
2.4 Screw (5 x 25mm)
2.5 Screw
2.6 Strap
Be sure to use the strap to secure
the back of the unit of the place. The
strap can be bent by hand to the de-
sired angle.
2.7 Plain washer
3.1 Frame
3.2 Insert fingers into the groove in the
front of frame and pull out to remove
the frame. (When re-attaching the
frame. Point the side with a groove
downwards and attach it.)
3.3 Lever
Insert the levers supplied with the
unit into the grooves at both sides
of the unit as shown in figure until
they click. Pulling the levers makes it
possible to remove the unit from the
dashboard.Installation using the screw holes on the sides of the unit.
DIN REAR-MOUNT
Fastening the unit to the factory radio mounting bracket.
1. Select a position where the screw holes of the bracket and the screw
holes as the main unit become aligned
(are fitted), and tighten the screw at 2
places on each side.
Use either truss screws (5x8mm) or
depending on the shape of the screw
holes in the bracket.
2. Screw.
3. Factory radio mounting bracket
4. Dashboard or Console
5. Hook (Remove this parts)
Note: The mounting box. Outer trim
ring, and half-sleeve are not used for
method B installation.
1. Press the release button and pull-off the front panel.
Keep front panel into the case.
2. To install the front panel, insert the panel into the housing and make
HOW TO REMOVE AND INSTALL THE FRONT PANEL
