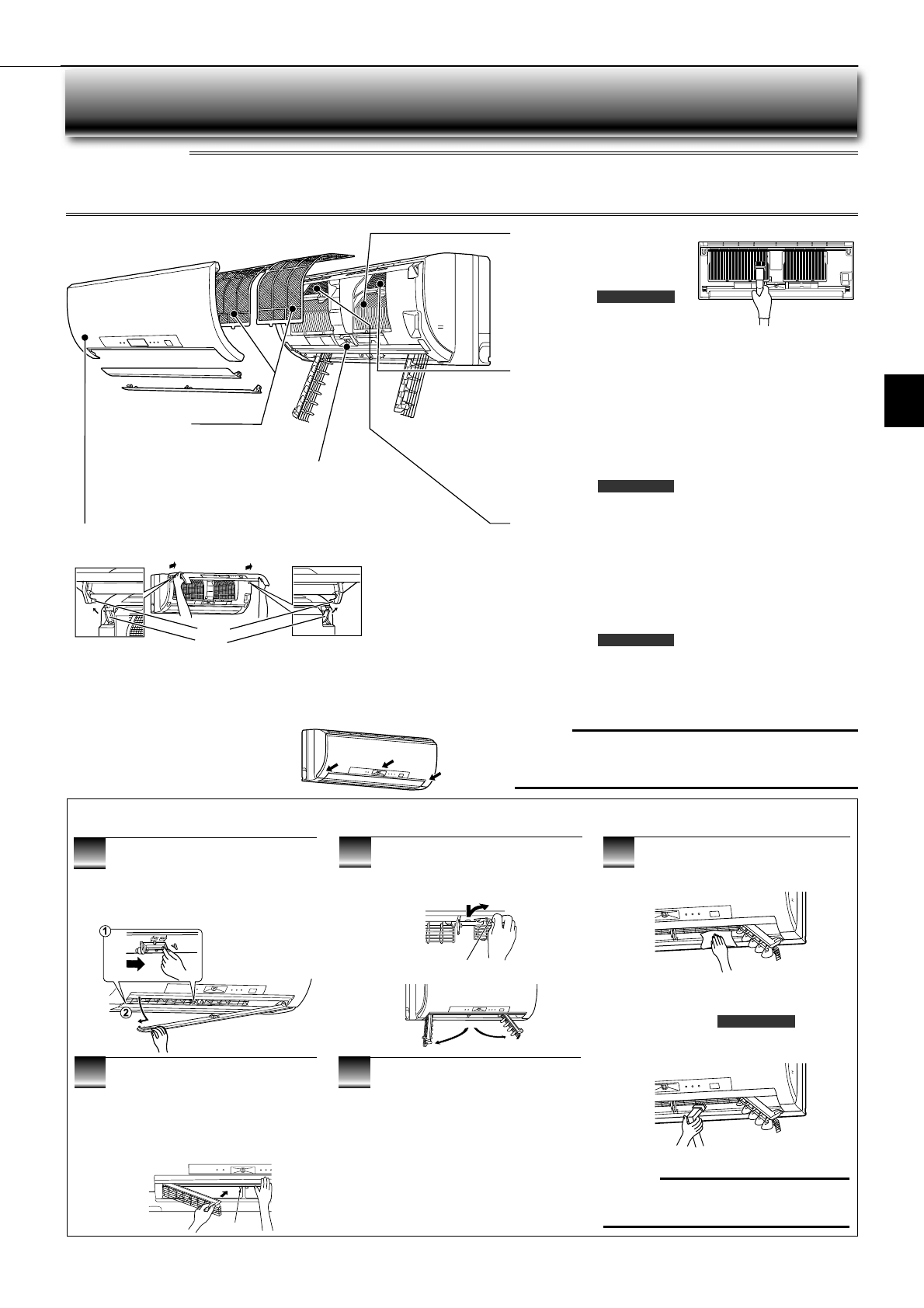

En-8

Heat exchanger

•  Wear gloves to protect your hands.
•  Use the QUICK CLEAN KIT

(option).

 Parts

Number

 MAC-093SS-E

•  Refer to the instructions described in

the  QUICK CLEAN KIT for details.

Front panel

Instructions:

1.  Lift the front panel until a “click” is heard.

2.  Hold the hinges and pull to remove as shown in the above illustration.

•  Wipe with a soft dry cloth or rinse it with water.
•  Do not soak it in water for more than two hours.
•  Dry it well in shade.

3. Install the panel by following the removal

procedure in reverse. Close the front panel
securely and press the positions indicated by
the arrows.

Hole

Hinge

Hold the tab

Plasma anti-allergy enzyme fi lter

Every 3 months:

•  Remove dirt by a vacuum cleaner.

When dirt cannot be removed by vacuum cleaning:

•  Soak the fi lter together with its frame in lukewarm water and rinse it.
•  After washing, dry it well in shade.

Every year:

•  Replace it with a new air cleaning fi lter for best performance.
• Parts

Number

 MAC-417FT-E

Plasma deodorizing fi lter

Every 3 months:

•  Remove dirt by a vacuum cleaner, or soak the fi lter in lukewarm water

(30 to 40°C) for about 15 minutes. Rinse well.

•  After washing, dry it well in shade.
•  Deodorizing feature recovers by cleaning the fi lter.

When dirt or smell cannot be removed by cleaning:

•  Replace it with a new air cleaning fi lter.
• Parts

Number

 MAC-307FT-E

Air outlet and Fan (before cleaning, make sure that the fan is stopped)

Air fi lter

•

Clean every 2 weeks

•  Remove dirt by a vacuum cleaner,

or rinse with water.

•  Dry it well in shade.

C

LEANING

1

Turn the horizontal vanes downward.
Then, remove the upper vane as
shown in

~

and



.

• Repeat

~

and



for the lower vane.

2

Swing out the two vertical vanes
one by one.

4

Put the vertical vanes back to
their original positions correctly
one by one, into their respective
guide.

•  Push the vanes until they click into place.

3

Clean the air outlet and fan.

•  Wipe with a soft dry cloth.

Clean the fan.

•  Use the QUICK CLEAN KIT (option).
 Parts

Number

 MAC-093SS-E

•  Refer to the instructions described in the

QUICK CLEAN KIT for details.

5

Install the horizontal vane by
following the removal procedure
in reverse.

•  If the horizontal vane is not installed cor-

rectly, all LED lamps blink when power is
turned on.

Unlock

•  Switch off the power supply or turn off the breaker before cleaning.
•  Be careful not to touch the metal parts with your hands.
•  Do not use benzine, thinner, polishing powder, or insecticide.

•  Use only diluted mild detergents.
•  Do not expose parts to direct sunlight, heat, or fi re to dry.
•  Do not use water hotter than 50°C.

Guide

Note:

Do not apply excessive force to the fan or fan
guard.

Note:

•  Clean the fi lters regularly for best performance and to reduce power

consumption.

•  Do not touch the i-see sensor.

i-see sensor

Do not touch the i-see
sensor.
