17.

Electric  air conditioner (split system)

EN

•

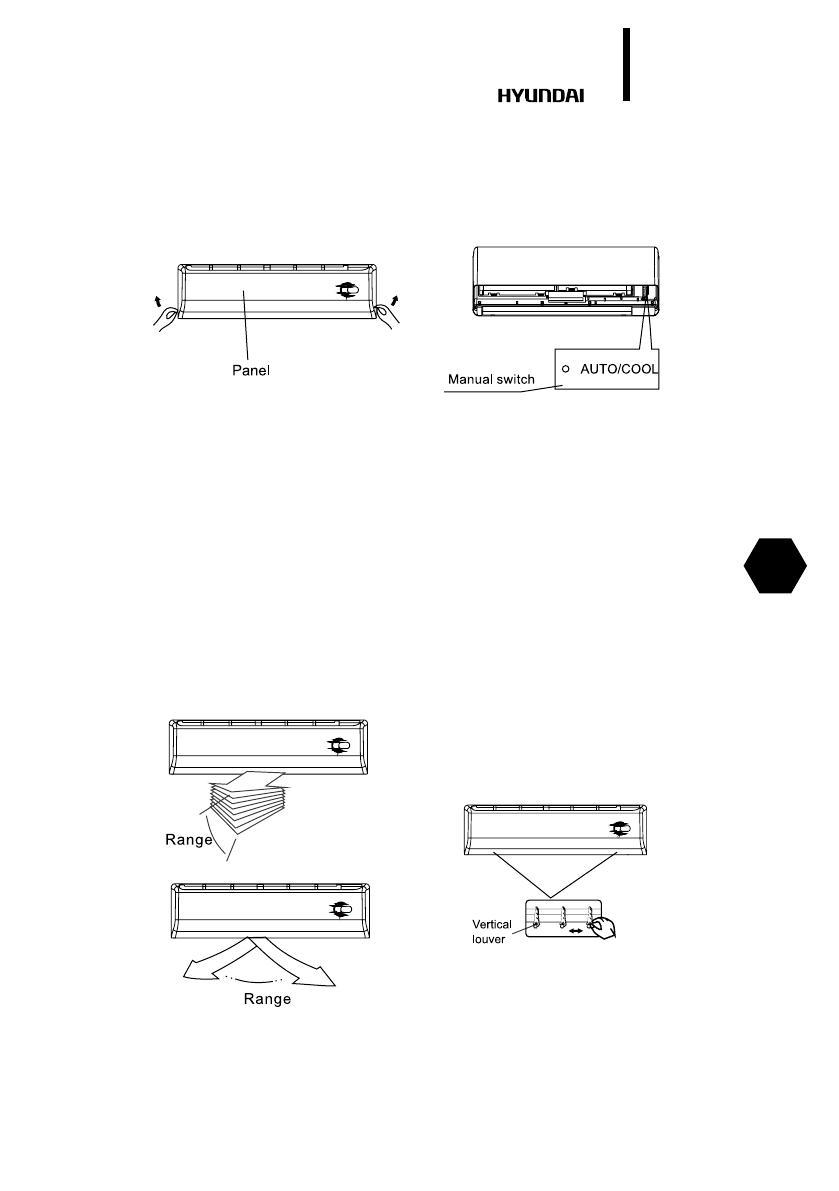

Hold the panel sides and lit the front panel up to an angle until it remains ixed with a

clicking sound.

•

Once you push the manual button, the operation mode is shited in an order as: AUTO,

COOL, OFF. The temperature will be set at 24OC/76OF and the fan on Auto.

•

Ater operation, close the panel irmly to its original position.

CAUTION:

This switch is used for testing purposes only. You had better not choose it. To restore the remote

controller operation, use the remote controller directly.

Manual operation

Units are equipped with a switch to run emergency operation mode. It can be accessed by open

-

ing the front panel. This switch is used for manual operation in case the remote controller
fails to work or maintenance necessary.

Airlow direction control

Adjust the air low direction properly otherwise, it might cause discomfort or cause uneven room

temperatures. Adjust the horizontal louver using the remote controller. Adjust the vertical louver
manually.

To set the vertical air low(Up--Down) direction

.

Perform this function while the unit is in operation. Use the remote controller to adjust the air low

direction. The horizontal louver can be moved at a range of 6O for each press, or swing up and down

automatically. Please refer to the REMOTE CONTROLLER OPERATION MANUAL for details.

Fig. 12

Fig. 13
