Electric air conditioner

portable type

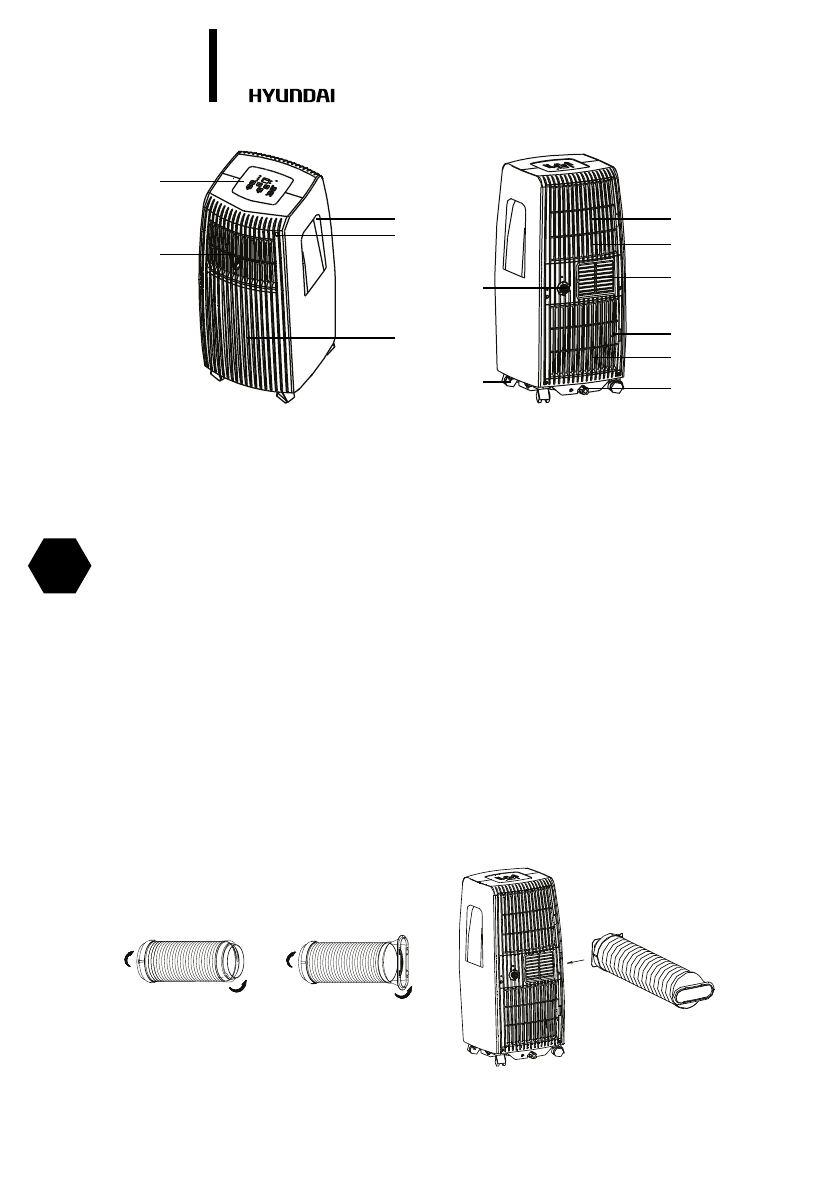

4. DEVICE DESCRIPTION (Fig. 2 and 3)

1. Control panel

2. Horizontal louver

3. Handle

4. Remote signal receptor

5. Panel

6. Air filter

7. Air outlet grille

8. Rollers

9. Air inlet grille

10. Condensation drain hole

11. Air inlet grille

12. Air filter

13. Condensation drain hole

Installation of air outlet hose (Fig. 4)

1. Before using  install the adapter on hose for air outlet (Fig. 4-2)

2. Install hose for air outlet  into the hole ( Fig. 4-3).
