Electric air conditioner. Split system

4. DEVICE DESCRIPTION

The conditioner consists of indoor and outdoor units connected by pipelines. The conditioner is
controlled from a remote control board or from a control panel of the indoor unit.

1.  Conditioner unit for indoor installation
2.  End panel of indoor-installation unit
3.  Control and indication panel
4.

Blinds (delectors) for distribution of treated air

5.  Air inlet of indoor unit
6.  Mounting plate
7.  Tube for condensate removal
8.  Copper tube for gas (freon).
9.  Conditioner unit for outdoor installation
10. Air inlets of outdoor unit
11. Return air grillages of outdoor unit

5. DELIVERY SET

Complete set of air conditioner (split system) includes:
Conditioner unit for indoor installation - 1 piece
Panel for indoor unit (utilities) - 1 piece
Conditioner unit for outdoor installation - 1 piece
Remote control - 1 piece
Batteries for remote control board - 2 pcs.
Operator’s manual with warranty card -1 piece
Packing of indoor-installation unit - 1 piece
Packing of indoor unit panel - 1 piece
Packing of outdoor-installation unit - 1 piece

6. DEVICE CONTROL

The conditioner is controlled from a remote control board or from a control panel of the indoor

unit. Control and indication board of your conditioner may visually difer from a layout view

shown below. Its functions will remain the same.

12. Operation indicator
13. Timer indicator
14. Defrosting-Preheating indicator
15. Indicator alarm status
16. LED display. Temperature indicator
17. Infrared signal receiver
18. Button of manual (emergency) control

Emergency control shall be used if the remote control board is lost or broken, or batteries are
low. Using an emergency control button situated on the indoor unit control panel you may select
COOL or AUTO mode of the conditioner work. Pressing this button, select a mode of the condi-
tioner work: AUTO, COOL, the conditioner is OFF, AUTO again, etc.

1. Auto mode. The operation indicator lights up and the air conditioner works in the forced auto-

matic mode. The remote controller can be used.

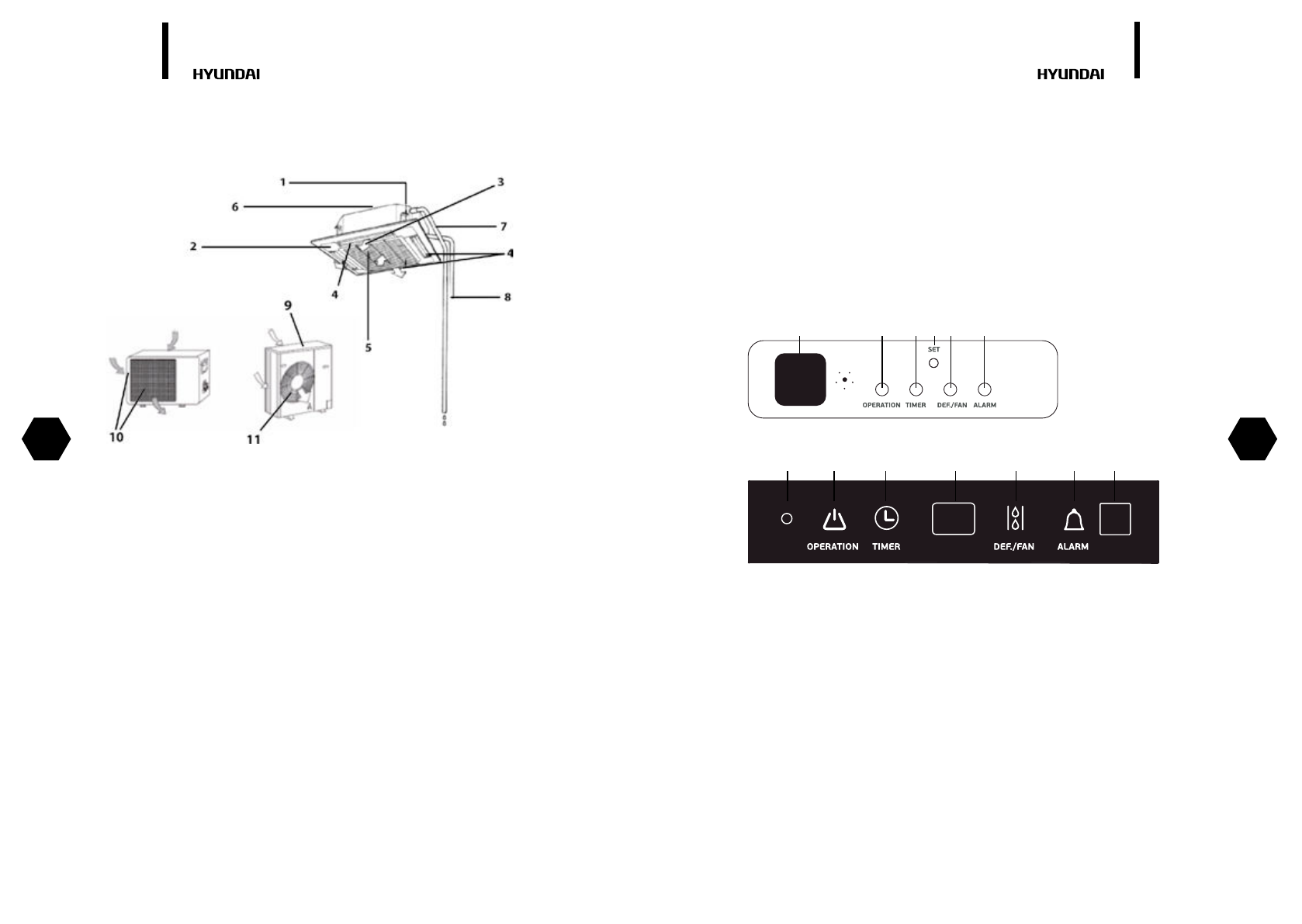

Fig. 1

Fig. 2. Description of indoor unit control board (models H-ALT1-12H-UI029 , H-ALT1-
18H-UI030)

Fig. 3. Description of indoor unit control board (models H-ALT1-24H-UI031, H-ALT1-36H-UI032,
H-ALT1-48H-UI033, H-ALT1-60H-UI034)
