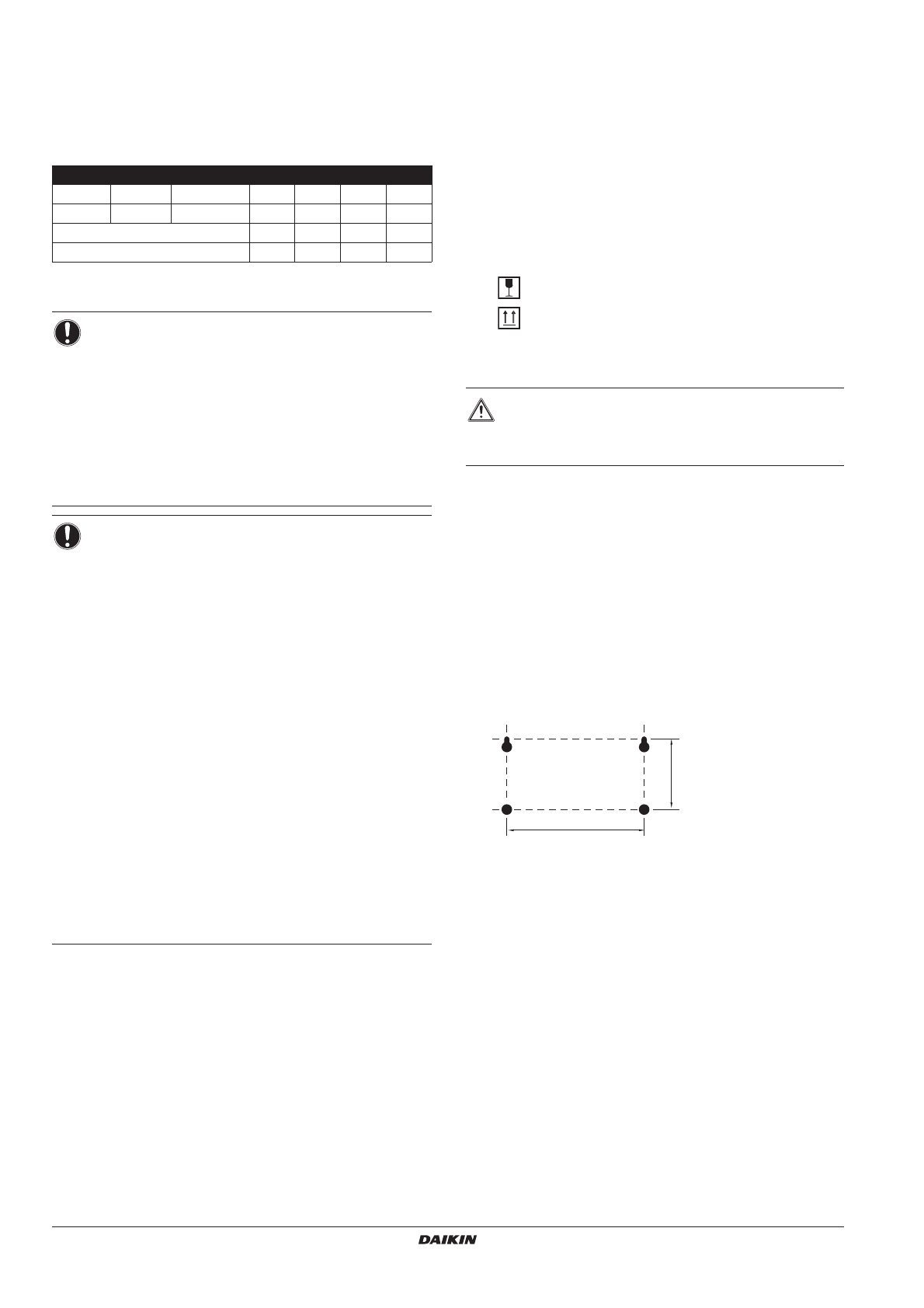

Installation manual
12
EKCBX/H008BBV3
Unit for air to water heat pump system
4PW66983-1C – 08.2011
Pump operation and space heating
When the room thermostat for the floor heating loop (T1) and the fan
coil units (T2) are connected to the indoor unit, the pump (3) will
operate when there is a request for heating from T1 and/or T2. The
outdoor unit will start operating to achieve the target leaving water
temperature. The target leaving water temperature depends on which
room thermostat is requesting heating.
When the room temperature of both zones is above the thermostat
set point, the outdoor unit and pump will stop operating.
9.
I
NSPECTING
,
HANDLING
AND
UNPACKING
THE
UNIT
9.1.
Inspection
At delivery, the unit must be checked and any damage must be
reported immediately to the carrier’s claims agent.
9.2.
Handling
■
The unit is packed in a cardboard box.
■
When handling the unit, take into account the following:
9.3.
Unpacking
Make sure that all accessories as mentioned in
supplied with the indoor unit" on page 5
are available in the unit.
9.4.
Installing the unit
When installing the indoor unit, please refer to
installation location" on page 6
to select an appropriate location.
Mounting the indoor unit
1
Remove the front plate of the unit.
2
Hold the back plate against the wall and mark the fixation points
(2 on the top and 2 on the bottom).
Make sure that the marks (2 by 2) are completely level and the
dimensions of the marks are corresponding to the figure below.
3
Drill 4 holes and install 4 plugs (suitable for M5).
4
Put the screws in the top plugs and hang the indoor unit on the
screws.
5
Put the screws in the bottom plugs.
6
Fix the 4 screws firmly.
Set point
Field setting
Thermo status
Zone A
First
UI
ON
OFF
ON
OFF
Zone B
Second
[7-03]
OFF
ON
ON
OFF
Resulting water temperature
UI
[7-03]
[7-03]
—
Result pump operation
ON
ON
ON
OFF
NOTICE
■
Make sure to connect the thermostat wires to the
correct terminals (see
■
Make sure to configure the field settings [7-02], [7-03]
and [7-04] correctly. Refer to
.
■
Make sure to configure the DIP switch SS2-3 on the
PCB of the EBHQ* switch box correctly. Refer to
"12.2. Room thermostat installation configuration" on
page 21
.
NOTICE
■
The request signals for space heating can be
implemented in two different ways (installer choice).
-
Thermo ON/OFF signal from room thermostat
-
Status signal (active/not active) from the mixing
station
■
It is the installers responsibility to make sure no
unwanted situations can occur (e.g. too high water
temperatures towards floor heating loops, etc.)
■
Daikin does not offer any type of mixing station. Dual
set point control only provides the possibility to use
two set points.
■
When only zone A requests heating, zone B will be
fed with water at a temperature equal to the first set
point.
This can lead to unwanted heating of zone B.
■
When only zone B requests heating, the mixing
station will be fed with water at a temperature equal to
the second set point.
Depending on the control of the mixing station, the
floor heating loop can still receive water at a
temperature equal to set point of the mixing station.
■
Be aware that the actual water temperature through
the floor heating loops depends on the control and
setting of the mixing station.
Fragile, handle the unit with care
Keep the unit upright
WARNING
Tear apart and throw away plastic packaging bags so that
children will not play with them. Children playing with
plastic bags face danger of death by suffocation.
280 mm
390 mm
