DAKER DK Plus

Battery Cabinets

EN

INDICATION

This chapter is valid for all the UPSs of the Daker DK Plus series excluding the 3-1 version 3 101 78.

If the UPS is connected to one or more battery cabinets, it is necessary to set their number to fore-

cast a realistic backup time. This can be done from the display of the UPS or by using the software

“UPS Setting tool”. The UPS must be in standby mode (mains connected to the UPS input).

Follow this procedure to change the UPS settings:
-   press  simultaneously

 and

 for approximately three seconds, until the buzzer sounds

twice;

-  scroll the different settings pressing

 until the setting “Battery” is visualized;

-  select the number of battery cabinets installed by pressing

;

-  after changing settings, scroll to the “End” screen and then press

 to save all changes;

-  the UPS restarts automatically. However, it is also suggested to remove the mains for at least 30

seconds.

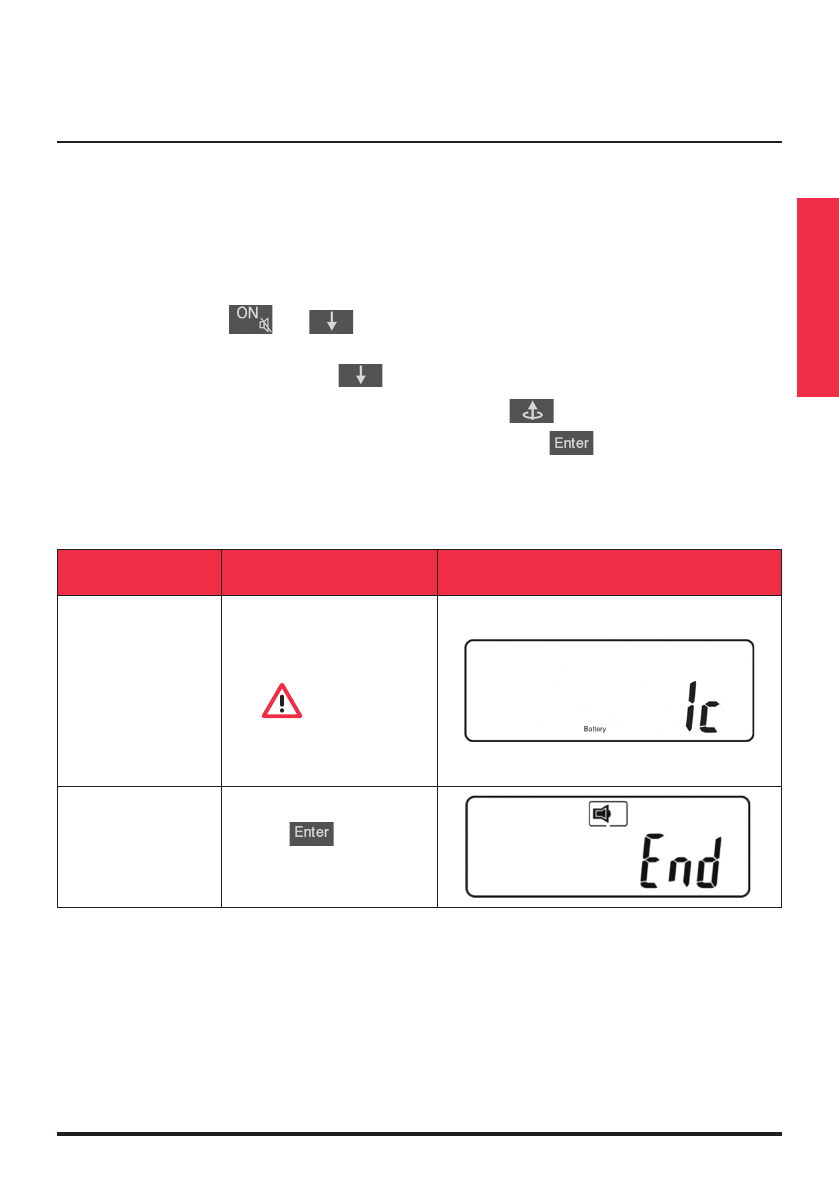

PARAMETER

SETTING

DISPLAY

NUMBER OF

BATTERY

CABINETS

1-9

Select the number

of battery cabinets

connected to the UPS

ATTENTION

This parameter cannot be

set on the UPS 10 kVA

3 101 78

END SCREEN

Press

 to save all

changes

4  Setting
