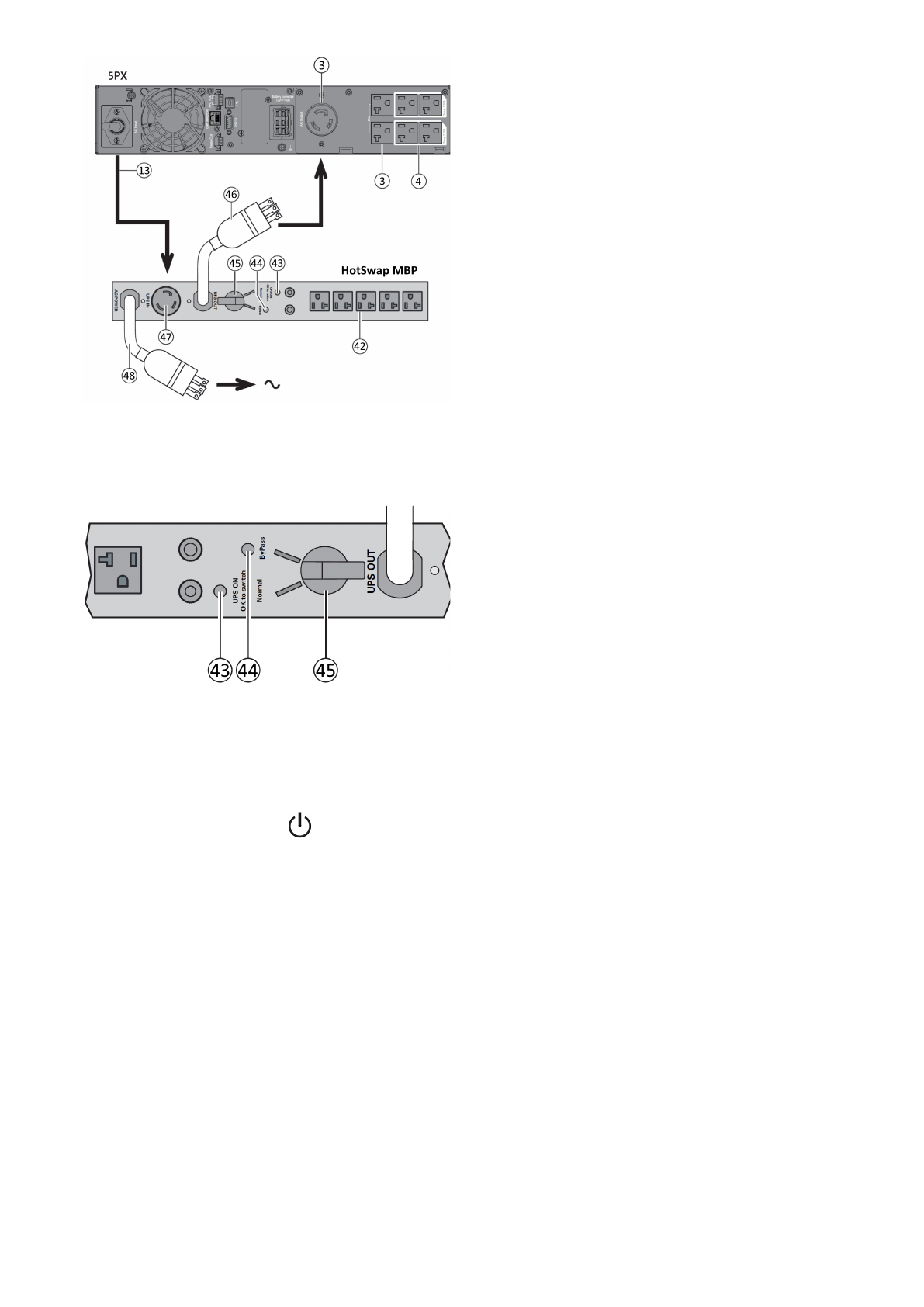

1.  Connect the input socket (48) on the HotSwap MBP
module to the AC power source.

2.  Connect the UPS input power cord (13) to the

receptacle "UPS Input" (47) of the HotSwap MBP
module.

3.  Connect

the "UPS Output" cable (46) of the HotSwap

MBP module to the outlet (3) of the UPS .

4. Connect the equipment to the outlets (42) on the
HotSwap MBP module.

These outlets differ, depending on the version of
the HotSwap MBP module.

Caution : Do not use UPS outlets (4) to supply
equipment because use of switch (45) on the HotSwap
MBP module would cut supply to the equipment.

HotSwap MBP module operation

The HotSwap MBP module has a rotary switch (45) with

two positions:

Normal

 : the load is supplied by the UPS, LED (43) is on.

Bypass

 : the load is supplied directly by the AC power

source. LED (44) is on. Load is not protected.

UPS start-up with the HotSwap MBP module

1. Check that the UPS is correctly connected to the HotSwap MBP module.

2. Start the UPS by pressing the

 button on the UPS control panel. LED (43) "UPS ON - OK to switch" on the HotSwap

MBP module goes ON (otherwise, there is a connection error between the HotSwap MBP module and the UPS).

3. Set switch (45) to Normal position. The red LED on the HotSwap MBP module goes OFF.

HotSwap MBP module test

1. Set switch (45) to Bypass position and check that the load is still supplied.

2. Set switch (45) back to Normal position.
