OPERATION

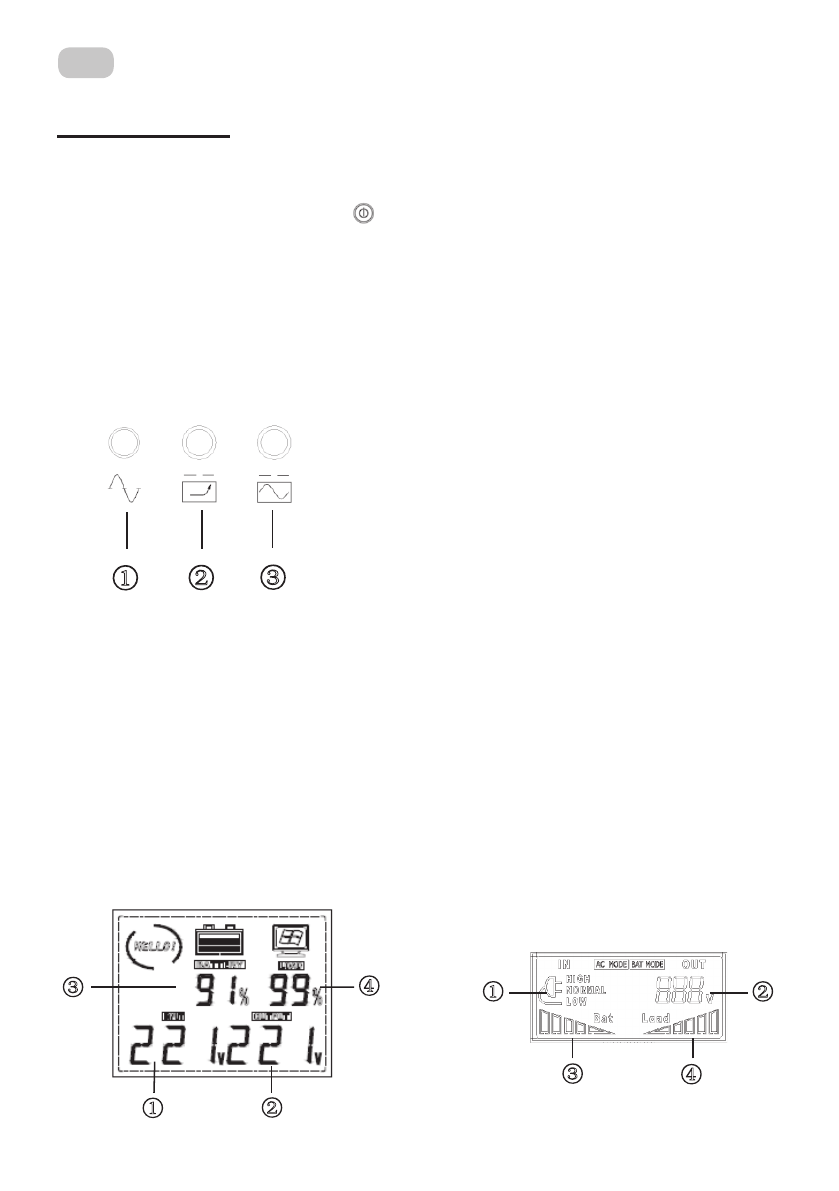

Front Panel Buttons and Display Interface
1. Power ON/OFF button
Front Panel Buttons and Display Interface
1.
Power ON/OFF button
Turn on/off the UPS with LED display: Press the Power ON/OFF button on the front panel
Turn o
n/off the UPS with LCD display:
Pre
ss and hold the Power ON/OFF button
on the front panel for 3 sec
2.
LED indicators / LCD display screen
LED indicators
①
On Line (green)
- is lit when the UPS is supplying utility power to connected equipment after turning on.
②
Battery charge state (yellow) - flashes during charging, lights when fully charged.
③
On battery (red)
- is lit when the UPS is supplying battery power to connected equipment.
LCD display screen
①
Mains volt
age / mains state
②
Output voltage
③
Battery capacity
④
Load capacity
Rear Panel
①
Input power cord / IEC input outlet
- connects the unit to utility power.
②
Output outlets
- during a power outage or other utility problems, the output outlets receive power for a limited
time from the UPS. Connect critical equipment such as computer, monitor, or other data devices into these
outlets.
③
Input fuse / circuit breaker
- provides input protection.
④
Communication interface (optional) -
USB/RS232 communication, RJ11/RJ45 s
urge protection
Note: The above pictures are for
reference only, please in kind prevail.
①
③
①
②
②
③
Type A display screen
Type B display screen
②
③
④
④
①
Operation
Turn on/off the UPS with LED display: Press the Power ON/
OFF button on the front panel
Turn on/off the UPS with LCD display: Press and hold the
Power ON/OFF button on the front panel for 3 sec
2. LED indicators / LCD display screen
LED indicators
Front Panel Buttons and Display Interface
1.
Power ON/OFF button
Turn on/off the UPS with LED display: Press the Power ON/OFF button on the front panel
Turn o
n/off the UPS with LCD display:
Pre
ss and hold the Power ON/OFF button
on the front panel for 3 sec
2.
LED indicators / LCD display screen
LED indicators
①
On Line (green)
- is lit when the UPS is supplying utility power to connected equipment after turning on.
②
Battery charge state (yellow) - flashes during charging, lights when fully charged.
③
On battery (red)
- is lit when the UPS is supplying battery power to connected equipment.
LCD display screen
①
Mains volt
age / mains state
②
Output voltage
③
Battery capacity
④
Load capacity
Rear Panel
①
Input power cord / IEC input outlet
- connects the unit to utility power.
②
Output outlets
- during a power outage or other utility problems, the output outlets receive power for a limited
time from the UPS. Connect critical equipment such as computer, monitor, or other data devices into these
outlets.
③
Input fuse / circuit breaker
- provides input protection.
④
Communication interface (optional) -
USB/RS232 communication, RJ11/RJ45 s
urge protection
Note: The above pictures are for
reference only, please in kind prevail.
①
③
①
②
②
③
Type A display screen
Type B display screen
②
③
④
④
①
Operation
Front Panel Buttons and Display Interface
1.
Power ON/OFF button
Turn on/off the UPS with LED display: Press the Power ON/OFF button on the front panel
Turn o
n/off the UPS with LCD display:
Pre
ss and hold the Power ON/OFF button
on the front panel for 3 sec
2.
LED indicators / LCD display screen
LED indicators
①
On Line (green)
- is lit when the UPS is supplying utility power to connected equipment after turning on.
②
Battery charge state (yellow) - flashes during charging, lights when fully charged.
③
On battery (red)
- is lit when the UPS is supplying battery power to connected equipment.
LCD display screen
①
Mains volt
age / mains state
②
Output voltage
③
Battery capacity
④
Load capacity
Rear Panel
①
Input power cord / IEC input outlet
- connects the unit to utility power.
②
Output outlets
- during a power outage or other utility problems, the output outlets receive power for a limited
time from the UPS. Connect critical equipment such as computer, monitor, or other data devices into these
outlets.
③
Input fuse / circuit breaker
- provides input protection.
④
Communication interface (optional) -
USB/RS232 communication, RJ11/RJ45 s
urge protection
Note: The above pictures are for
reference only, please in kind prevail.
①
③
①
②
②
③
Type A display screen
Type B display screen
②
③
④
④
①
Operation
Front Panel Buttons and Display Interface
1.
Power ON/OFF button
Turn on/off the UPS with LED display: Press the Power ON/OFF button on the front panel
Turn o
n/off the UPS with LCD display:
Pre
ss and hold the Power ON/OFF button
on the front panel for 3 sec
2.
LED indicators / LCD display screen
LED indicators
①
On Line (green)
- is lit when the UPS is supplying utility power to connected equipment after turning on.
②
Battery charge state (yellow) - flashes during charging, lights when fully charged.
③
On battery (red)
- is lit when the UPS is supplying battery power to connected equipment.
LCD display screen
①
Mains volt
age / mains state
②
Output voltage
③
Battery capacity
④
Load capacity
Rear Panel
①
Input power cord / IEC input outlet
- connects the unit to utility power.
②
Output outlets
- during a power outage or other utility problems, the output outlets receive power for a limited
time from the UPS. Connect critical equipment such as computer, monitor, or other data devices into these
outlets.
③
Input fuse / circuit breaker
- provides input protection.
④
Communication interface (optional) -
USB/RS232 communication, RJ11/RJ45 s
urge protection
Note: The above pictures are for
reference only, please in kind prevail.
①
③
①
②
②
③
Type A display screen
Type B display screen
②
③
④
④
①
Operation
On Line (green) - is lit when the UPS is supplying utility power
to connected equipment after turning on.
Battery charge state (yellow) - flashes during charging, lights
when fully charged.
On battery (red) - is lit when the UPS is supplying battery
power to connected equipment.
LCD display screen
Type A display screen
Type B display screen
