u

Align  the  appliance  so  that  it

stands firmly and on a level by

applying  the  accompanying

spanner  to  the  adjustable-

height  feet  (A)  and  using  a

spirit level.

Note

u

Clean the appliance (see 6.2) .

If  the  appliance  is  installed  in  a  very  damp  environment,

condensate may form on the outside of the appliance.

u

Always see to good ventilation at the installation site.

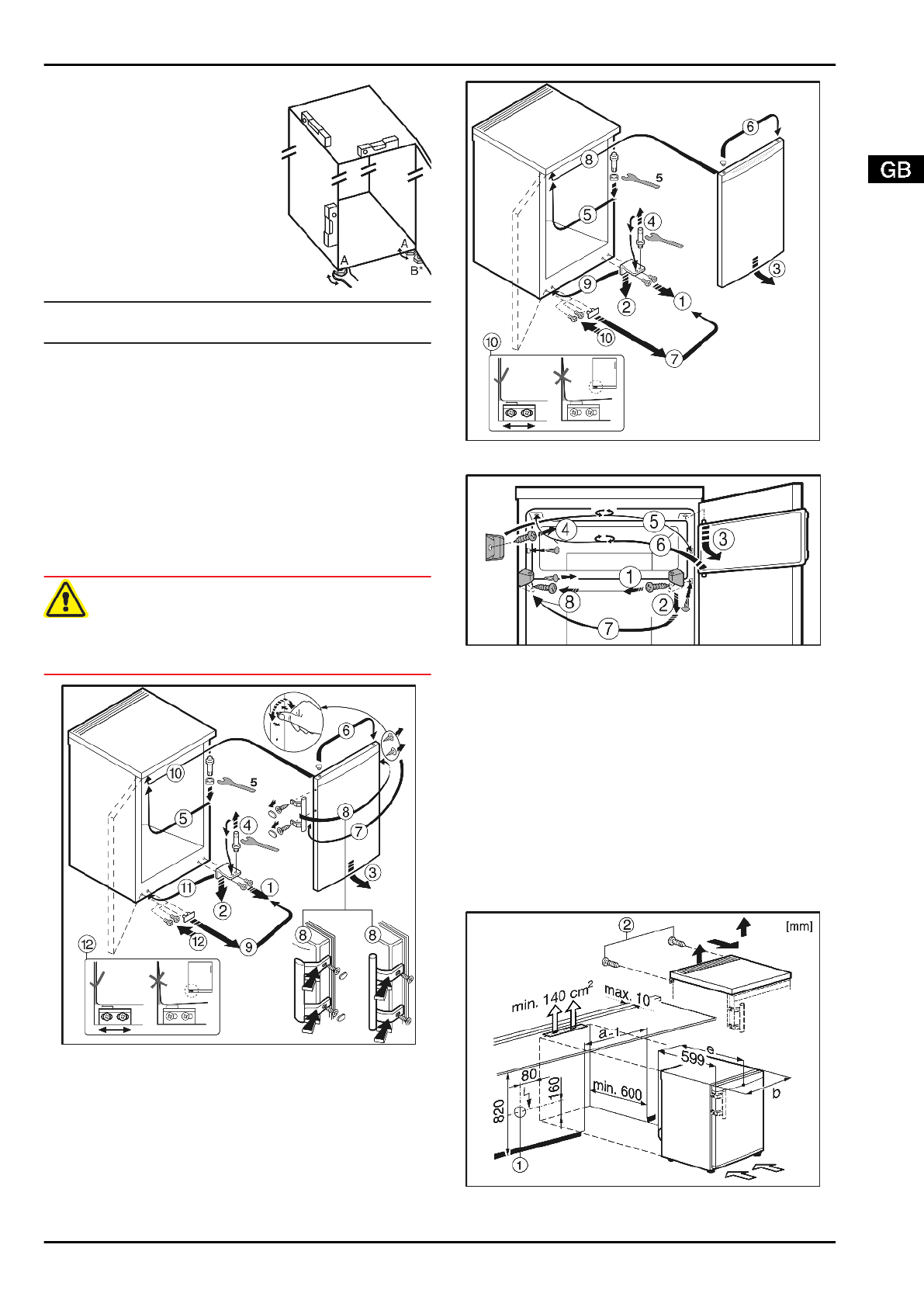

4.3 Changing over the door hinge*

You can change over the door hinges if necessary.
Make sure that the following tools are at hand:

q

Torx® 25

q

Torx® 15

q

Supplied open-ended wrench

q

If necessary, a second person to assist with installation

CAUTION

Risk of injury if the door tips!

u

Take good hold of the door.

u

Set down the door carefully.

Fig. 4  On appliances with a door handle

Fig. 5  On appliances without a door handle

Fig. 6  On appliances with a freezer compartment

u

Follow the sequence of the item numbers in the diagram.

4.4 Undercounter installation

Counter  height  appliances  up  to  850  mm  in  height  can  be

installed  below  the  worktop.  In  the  case  of  continuous  work-

tops,  the  cover  on  the  refrigerator  can  be  removed  and  the

appliance slid in under the worktop.
With  such  installations,  the  plug

  Fig.  7  (1)  must  not  be  located

behind the appliance and must be easily accessible.
For  the  purpose  of  ventilation  and  aeration  at  the  rear  of  the

appliance, a min.140 cm

2

 ventilation cavity is required. With an

installation depth of 600 mm, the wall connection profile on the

worktop must not exceed a max. 10 mmin depth.

Fig. 7

Putting into operation

5
