7 Instructions for installation and modification

All types and models are subject to continuous improvement

and the manufacturer therefore reserves the right to make

modifications in the shape, equipment and technology.

Setup Dimensions

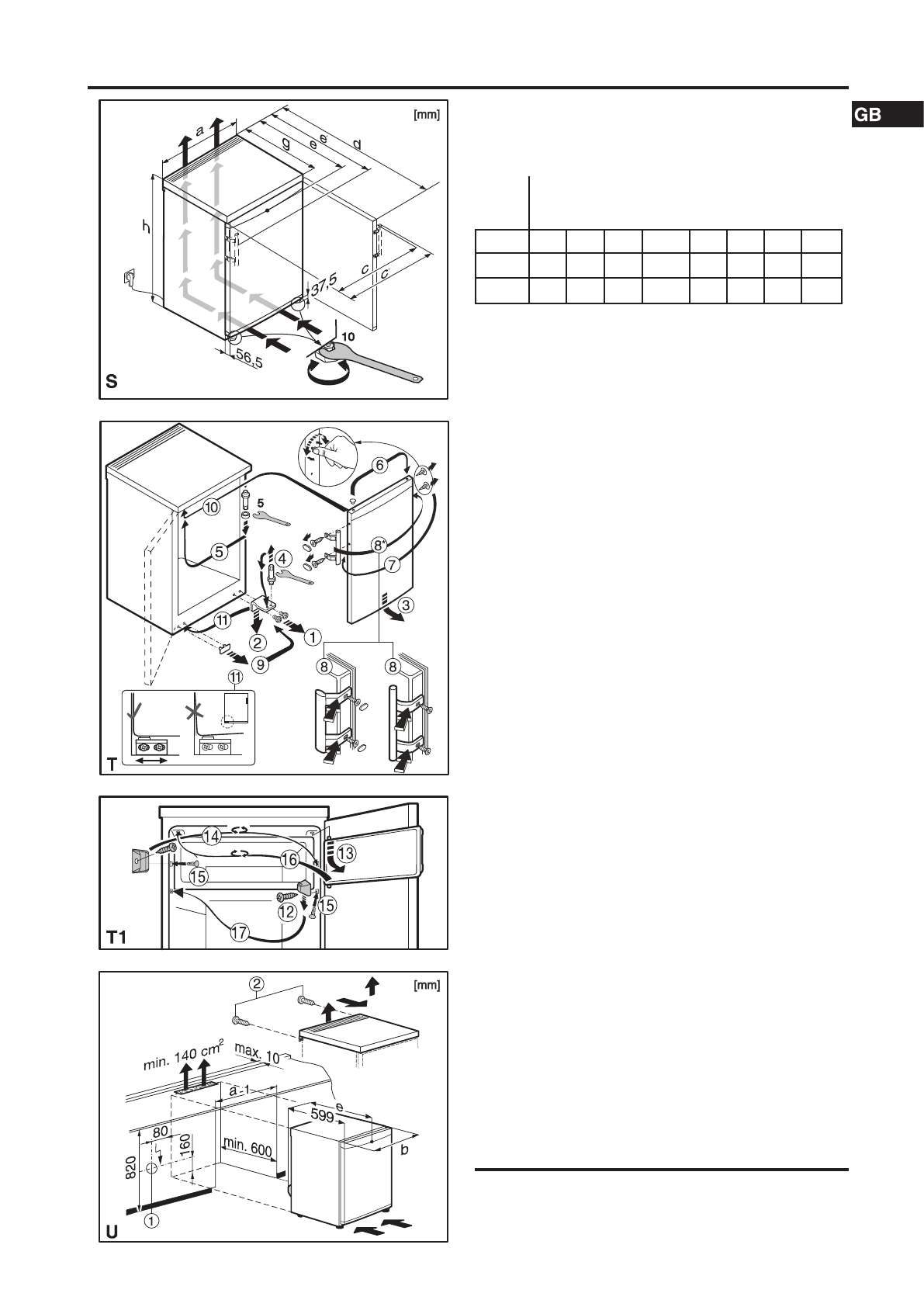

The appliance dimensions can be found on the fig

S

/U

below and in the following table.

Model

        Appliance dimensions (mm)

Nominal

width

  a

b

c

c`

d

e

e`

g

h

501

497 505 534 1072 620 649 610 50

554

550 561 590 1125 623 652 610 50

Changing over door hinges

Fig.

T:

 You can change over the door hinges if necessary.

Follow the order of the positions illustrated in fig.

T/T1

.

Installing underneath a worktop*

Table-height appliances up to 850 mm in height can be fitted

underneath an existing worktop.

Fig.

U

: For under-worktop use, the tabletop of the refriger-

ator can be removed and the appliance fitted underneath the

worktop.

W

 The socket

1

 must be away from the rear of the appliance

  and must be easily accessible.

W

To remove the tabletop, undo screws

2

 on the back. Lift

  the tabletop slightly, slide forwards and remove.

W

A ventilation gap in the worktop of at least 140 cm

2

 is

  needed for ventilation at the back of the appliance. The

  profile along the back of the worktop may not be more

  than 10 mm deep on 600 mm worktops.

* Depending on model and options
