13

7 Instructions for installation

and modification

All types and models are subject to continuous improvement

and the manufacturer therefore reserves the right to make

modifications in the shape, equipment and technology.

Changing over door hinges

Fig.

T:

 You can change over the door hinges if necessary.

Follow the order of the positions illustrated in fig.

T/T1

.

Setup Dimensions

The appliance dimensions can be found on the fig

S

below and in the following table.

Model

        Appliance dimensions (mm)

Nominal

width

a

c

c`

d

e

e`

g

h

K

2330

550 559 591 1129 62 660 614 1175

K

2734

550 559 591 1129 62 660 614 1420

Before reading, please fold out and refer to

the illustrated back page.

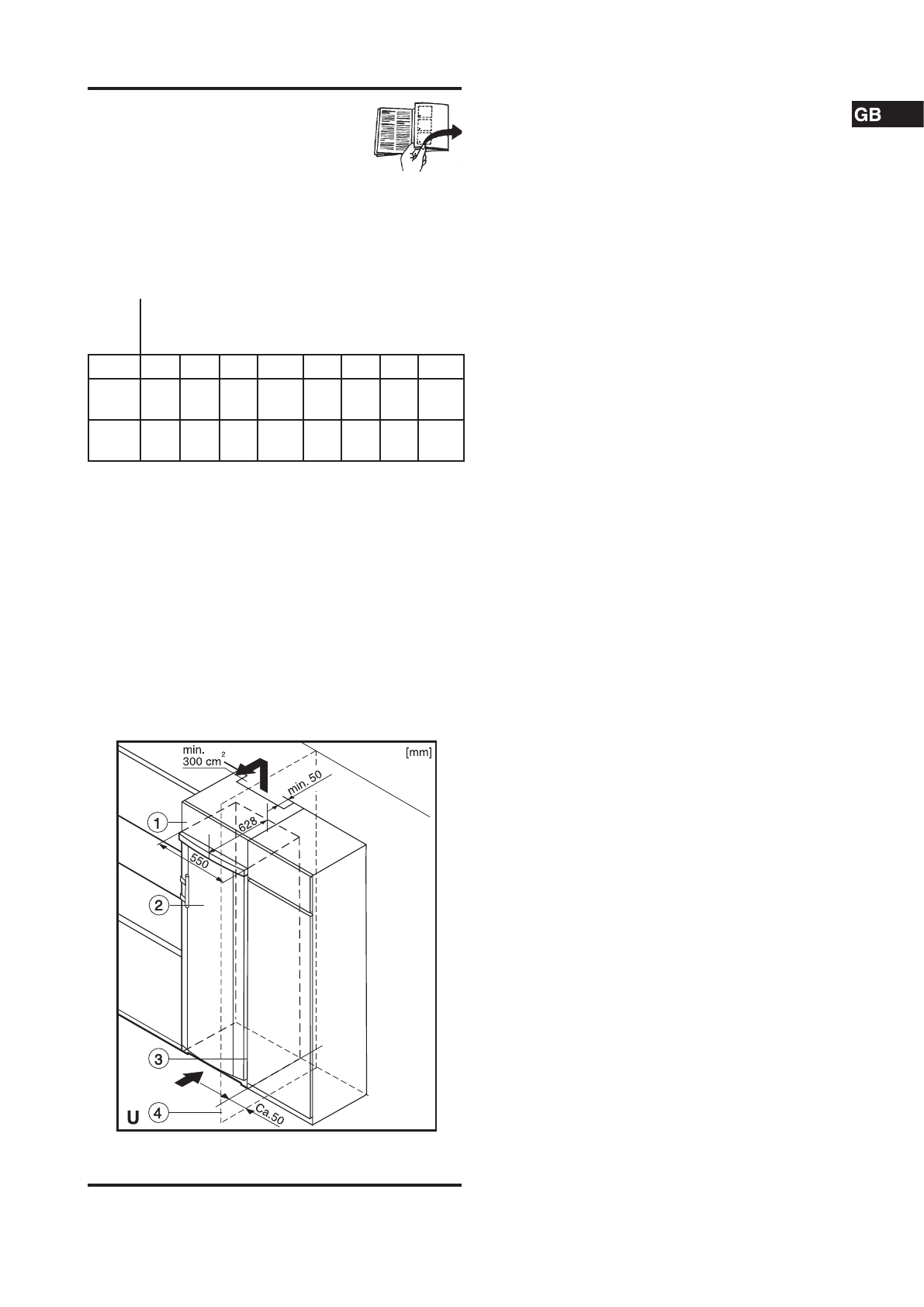

Insertion into row of kitchen units

Fig.

U:

 The appliances can be installed in a row of kitchen

units. To adapt the height of the appliance to the surrounding

furniture a top unit

1

 can be added.

A gap of at least 50 mm depth must be provided behind and

along the entire width of this unit so as to ensure sufficient

ventilation. The area of ventilation underneath the ceiling

should be at least 300 cm

2

. The greater the area the more

economically the appliance will run.

W

  When setting up the appliance next to a wall

4

, a mini-

mum distance of 50 mm must be provided on the hinge

side between the appliance and the wall.

1

 top unit

2

 refrigerator/freezer

3

kitchen unit side panel

4

wall
