1 The appliance at a glance

Defrost drain

* Depending on model and options

Adjustable door racks

Egg tray

Vegetable, salad and fruit bins

Butter stop

Adjustable storage shelves

On/off and temperature control, interior light

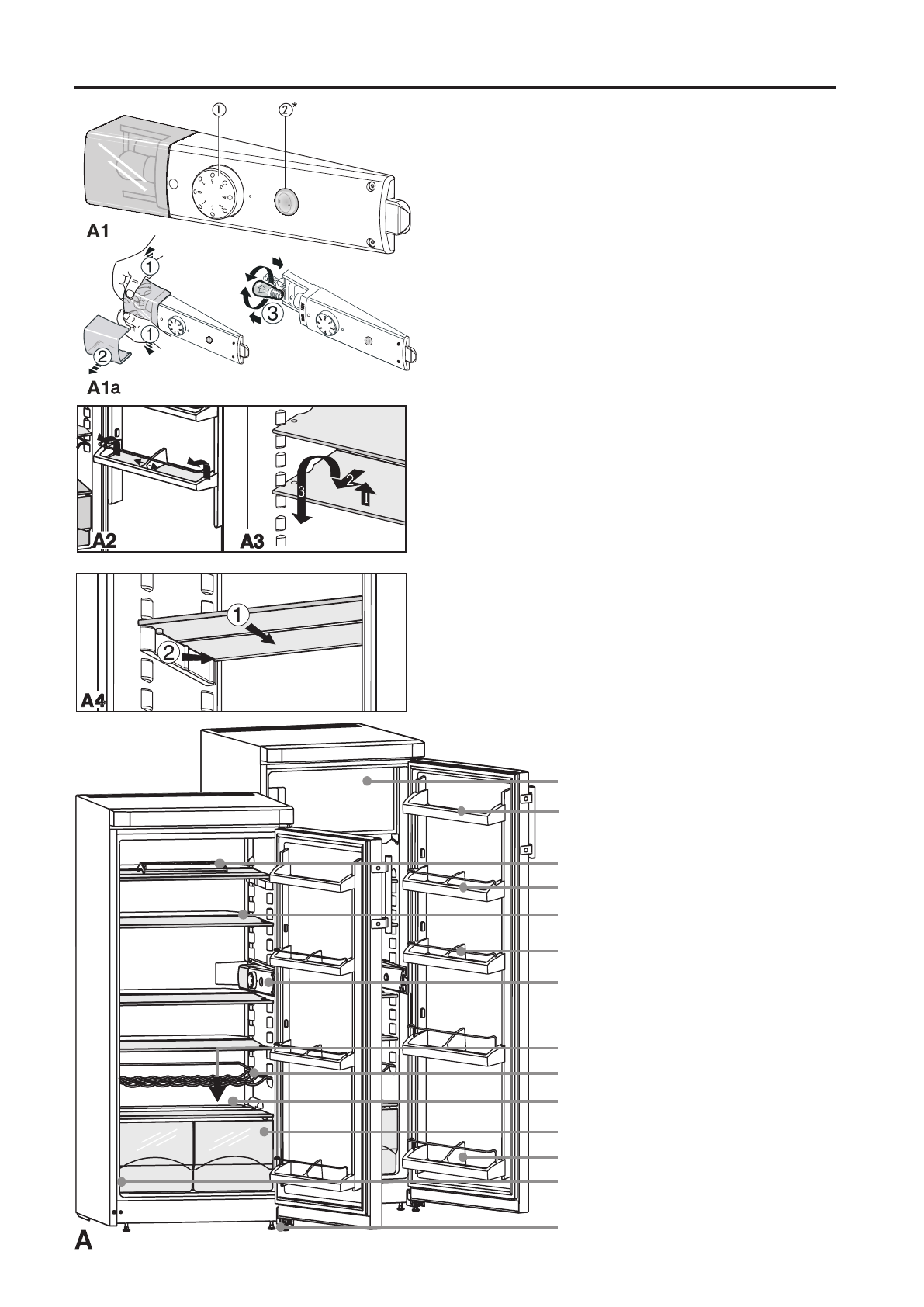

Description of appliance and equipment,

fig.

A

Controls,

fig.

 A1:

1

On/off

and

 temperature control

  "1" = warm      "7" = cold

  We recommend a

medium

 setting.

2

Cool-Plus switch*.  Switch on at low room temperatures of

18°C or below.

Interior light

Bulb data:

 max. 15 W, voltage and current should agree with

the details on the type plate, bulb fitting: E 14.

Replacing the bulb, fig.

A1a:

 Switch off the appliance.

W

  Pull out the plug or switch off/unscrew the fuse.

W

  By moving the

bottle and can holder

, you can prevent bot-

tles from tipping over when the door is opened and closed.

The holder can be removed for cleaning:

-    fig.

A2

: The holder slides and releases left or right along the

door stops.

W

  You can remove all

door racks

 for cleaning, fig.

A2

: lift rack

and pull forwards.

W

  Shelves*

 can be adjusted in height for different height

items, fig.

A3

:

-  Lift the shelf, slide forwards and remove.

-  Always insert shelves with the raised edge at the back point-

ing upwards, otherwise food may freeze onto the rear wall.

W

  Fig.

A4

: If you need space for large bottles and containers,

then simply push the front half of glass shelf*

1

 back. For

cleaning, the holder

2

 can be used to remove the half glass

shelves.

Door rack for large bottles
Type/Data plate

 Adjustable-height feet at front,

transport castors at back

Adjustable bottle and can holder

Bottle shelf

*

Freezer compartment*

Coldest zone of the refrigerator compartment,

for sensitive and perishable foodstuffs
