4.2 Insertion into a row of kitchen units

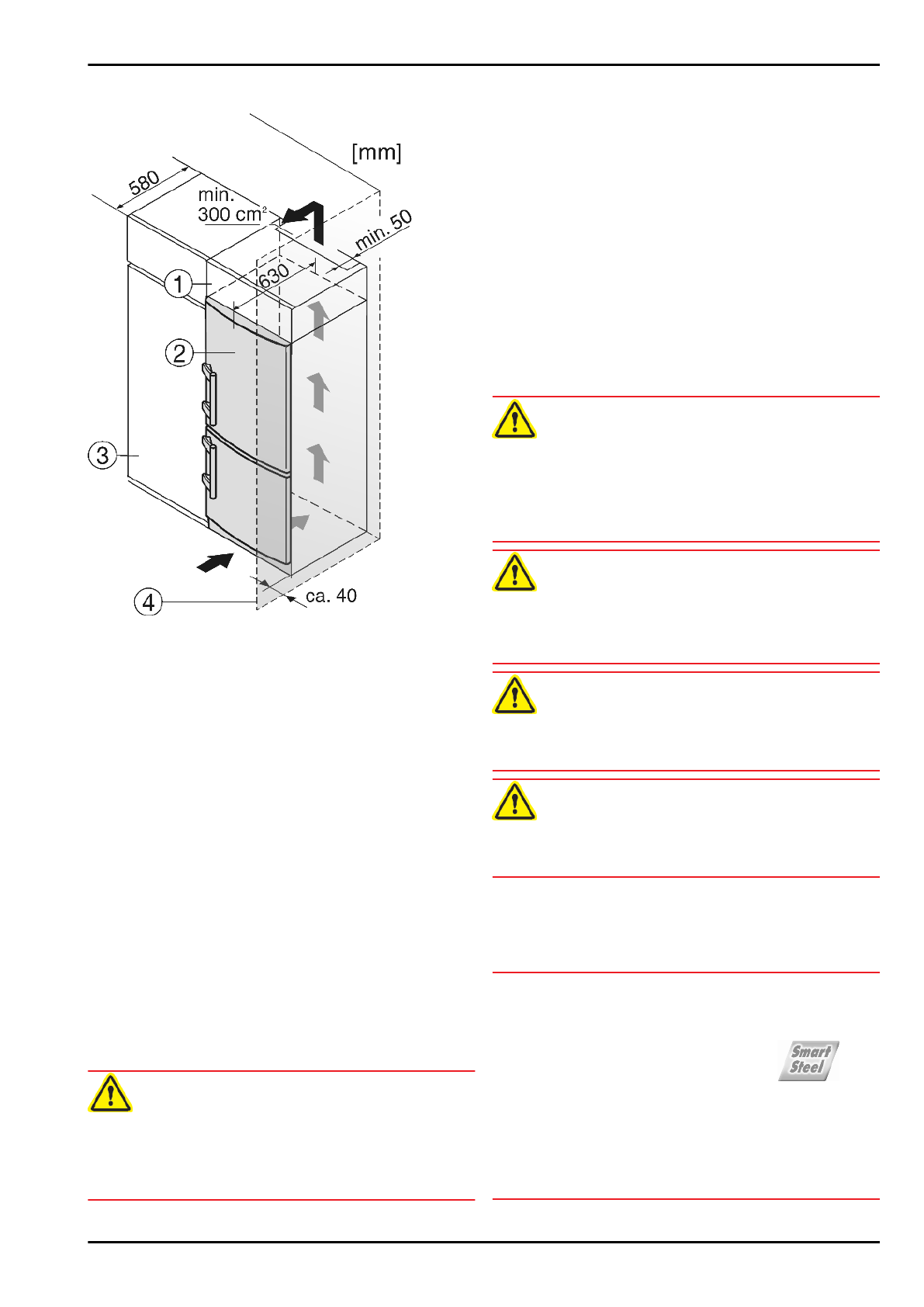

Fig. 9

(1) Stack cabinet

(3) Kitchen cabinet

(2) Appliance

(4) Wall

The  appliance  can  be  inserted  into  a  row  of  kitchen  units.  To

match the appliance

 Fig. 9 (2) to the height of the row of units,

a suitable stack cabinet

 Fig. 9 (1) can be fitted above the appli-

ance.
When  inserting  the  appliance  into  a  row  of  kitchen  units  (max.

depth  580  mm),  the  appliance  can  be  installed  directly  next  to

the  kitchen  unit

  Fig.  9  (3).  The  appliance  door  projects  relative

to  the  front  of  the  kitchen  unit  by  34  mm   at  the  side  and  by

50  mm  in  the  middle  of  the  appliance.  It  can  be  opened  and

closed perfectly as a result.
Important for the ventilation:

-

At the back of the stack cabinet there has to be a ventilation

duct  of  at  least  50  mm  depth  throughout  the  width  of  the

stack cabinet.

-

The  ventilation  space  under  the  ceiling  has  to  be  at  least

300 cm

2

.

-

The larger the ventilation space, the more energy-saving the

appliance is in operation.

If  the  appliance  is  installed  with  the  hinges  next  to  a  wall

Fig. 9 (4), the distance between appliance and wall has to be at

least  40  mm.  This  corresponds  to  the  projection  of  the  handle

when the door is open.

4.3 Transporting the appliance

CAUTION

Risk  of  injury  and  danger  of  damage  as  a  result  of  incorrect

transport!

u

Transport the appliance in a packed condition.

u

Transport the appliance upright.

u

Do not transport the appliance without assistance.

4.4 Installing the appliance

In the event that the appliance is damaged, contact the supplier

immediately before connecting to the mains.
The floor at the site must be flat and level.
Do not install the appliance in a location where it is exposed to

direct radiation of the sun, next to a cooker, heater and similar.
Always  install  the  appliance  with  the  back  directly  against  the

wall.
Do not install the appliance without assistance.
Standard  EN  378  specifies  that  the  room  in  which  you  install

your  appliance  must  have  a  volume  of  1  m

2

  per  8  g  of  R  600a

refrigerant used in the appliance. If the room in which the appli-

ance  is  installed  is  too  small,  a  flammable  gas-air  mixture  may

form  in  the  event  of  a  leakage  in  the  refrigeration  circuit.  The

quantity of refrigerant used in your appliance is indicated on the

type plate on the inside of the appliance.
The appliance may be moved only when it is empty.

WARNING

Fire hazard due to dampness!

If  live  parts  or  the  mains  lead  become  damp  this  may  cause

short circuits.

u

The appliance is designed for use in enclosed areas. Do not

operate  the  appliance  outdoors  or  in  areas  where  it  is

exposed to splash water or damp conditions.

WARNING

Fire hazard due to refrigerant!

The  refrigerant  R  600a  is  environmentally  friendly  but  flam-

mable. Escaping refrigerant may ignite.

u

Do not damage the piping of the refrigeration circuit.

WARNING

Fire hazard and danger of damage!

u

Do  not  place  appliances  emitting  heat  e.g.  microwaves,

toasters etc. on the appliance!

WARNING

Blocked ventilation openings pose a risk of fire and damage!

u

Always  keep  the  ventilation  openings  clear.  Always  ensure

that the appliance is properly ventilated!

u

Detach the connecting cable from the rear of the appliance,

removing  the  cable  holder  at  the  same  time  because  other-

wise there will be vibratory noise!

u

Remove  the  protective  film  from  the  outside  of  the  appli-

ance.*

NOTICE*

The  stainless  steel  doors  are  provided  with  a  high-quality

surface  coating  and  must  not  be  treated  using  the  accompa-

nying care product.

Otherwise the surface coating will be affected.

u

Wipe  the  coated  door  surfaces  using  a  soft,  clean  cloth

only.

u

Apply  a  stainless  steel  cleaner  only  to  the  stainless  steel

side  walls  evenly,  wiping  with  the  grain.  Subsequent

cleaning becomes easier as a result.

u

Wipe  side  walls  with  a  paint  finish  using  a  soft,  clean

cloth only.
