4.1.4 Transferring the lower bearing elements

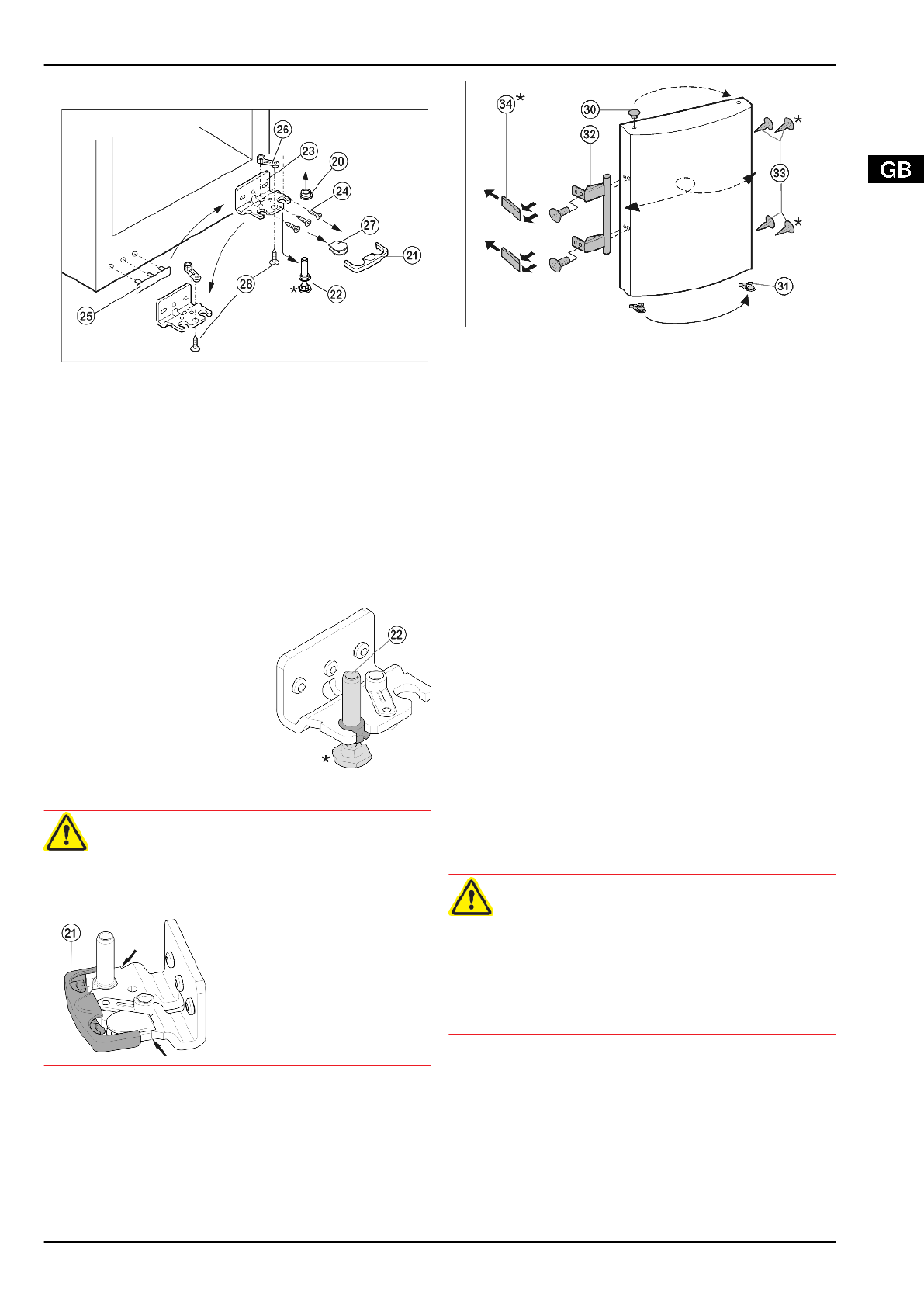

Fig. 6

u

Draw the safety lock

 Fig. 6 (21).

u

Remove the cover

 Fig. 6 (27).*

u

Fully retract the adjustable-height foot

 Fig. 6 (22).

u

If  necessary,  tip  the  appliance  back  a  little  with  the  assis-

tance of a second person for removal of the bearing pin.

u

Pull out the bearing pin

 Fig. 6 (22) downwards and forwards.

In so doing, pay attention to the hinge bush

 Fig. 6 (20).

u

Unscrew the turn hinge

 Fig. 6 (23) (3 Torx 25) Fig. 6 (24).

u

Unscrew the bearing part

 Fig. 6 (26)(1 Torx 25), Fig. 6 (28).

u

Carefully  lift  off  and  transfer  the  cover

  Fig.  6  (25)  on  the

handle side.

u

Screw the turn hinge

 Fig. 6 (23) firmly into place on the new

hinge  side,  possibly  using  a  cordless  screwdriver  (with

4 Nm).

u

Tip  the  appliance  back  a

little  again  and  re-insert

the bearing pin

 Fig. 7 (22).

The  notch  has  to  point

forwards.

u

Place the cover

 Fig. 6 (27)

on the opposite side.*

Fig. 7

CAUTION

Risk of injury if the door tips!

u

The safety lock

 (21) has to engage with the turn hinge at the

side  so  that  the  bearing  pin  and  therefore  the  door  are

secured.

u

u

Snap the safety lock

 (21) onto the turn hinge again.

u

Put on the hinge bush

 Fig. 6 (20).

4.1.5 Transferring the handles

u

Disengage  the  spring  clip

  Fig.  8  (31)  from  the  upper  door

and transfer it to the new hinge side.

u

Lift  the  stoppers

  Fig.  8  (30)  out  of  the  door  bearing  bushes

and transfer them.

Fig. 8

u

Detach  the  door  handles

  Fig.  8  (32),  stoppers  Fig.  8  (33)

and  pressure  plates

  Fig.  8  (34)  and  transfer  to  the  opposite

side.

u

When  fitting  the  pressure  plates  at  the  opposite  side,  pay

attention that they engage properly.

4.1.6 Fitting the lower door

u

Place  the  lower  door  from  above  onto  the  lower  bearing  pin

Fig. 6 (22).

u

Close the door.

u

Place  the  plastic  cap

  Fig.  5  (10)  back  onto  the  middle  turn

hinge

 Fig. 5 (13).

u

Place the middle bearing pin

 Fig. 5 (11) in the lower door, on

the  new  hinge  side,  through  the  middle  turn  hinge

Fig. 5 (13).

4.1.7 Fitting the upper door

u

Place the upper door on the middle bearing pin

 Fig. 5 (11).

u

Insert the upper turn hinge

 Fig. 4 (3) in the door on the new

hinge side.

u

Screw  the  top  turn  hinge  firmly  into  place  (with  4  Nm).(2x

Torx  25)

  Fig.  4  (4).  Possibly  make  preliminary  holes  with  a

bradawl or use a cordless screwdriver.

u

Apply  the  cover

  Fig.  4  (1)  and  cover  Fig.  4  (2)  to  the  oppo-

site side from the outside and snap them into place.

4.1.8 Aligning the doors

u

If  necessary,  align  the  doors  to  the  appliance  housing  by

way  of  the  two  oblong  holes  in  the  lower  turn  hinge

Fig.  6  (23)  and  middle  turn  hinge  Fig.  5  (13).  To  do  so,

unscrew the middle screw in the lower turn hinge

 Fig. 6 (23).

WARNING

Risk of injury due to the door dropping out!

If  the  bearing  parts  are  not  screwed  into  place  firmly  enough,

the  door  may  drop  out.  This  may  lead  to  severe  injuries.  What

is  more,  the  door  may  not  close  and  therefore  the  appliance

may fail to cool properly.

u

Screw the turn hinges firmly into place with 4 Nm.

u

Check all of the screws and retighten if necessary.
