CAUTION

identifies a dangerous situation

which, if not obviated, may result in

minor or medium bodily injury.

NOTICE

identifies a dangerous situation

which, if not obviated, may result in

damage to property.

Note

identifies useful information and tips.

3 Controls and displays

3.1 Operating and control elements

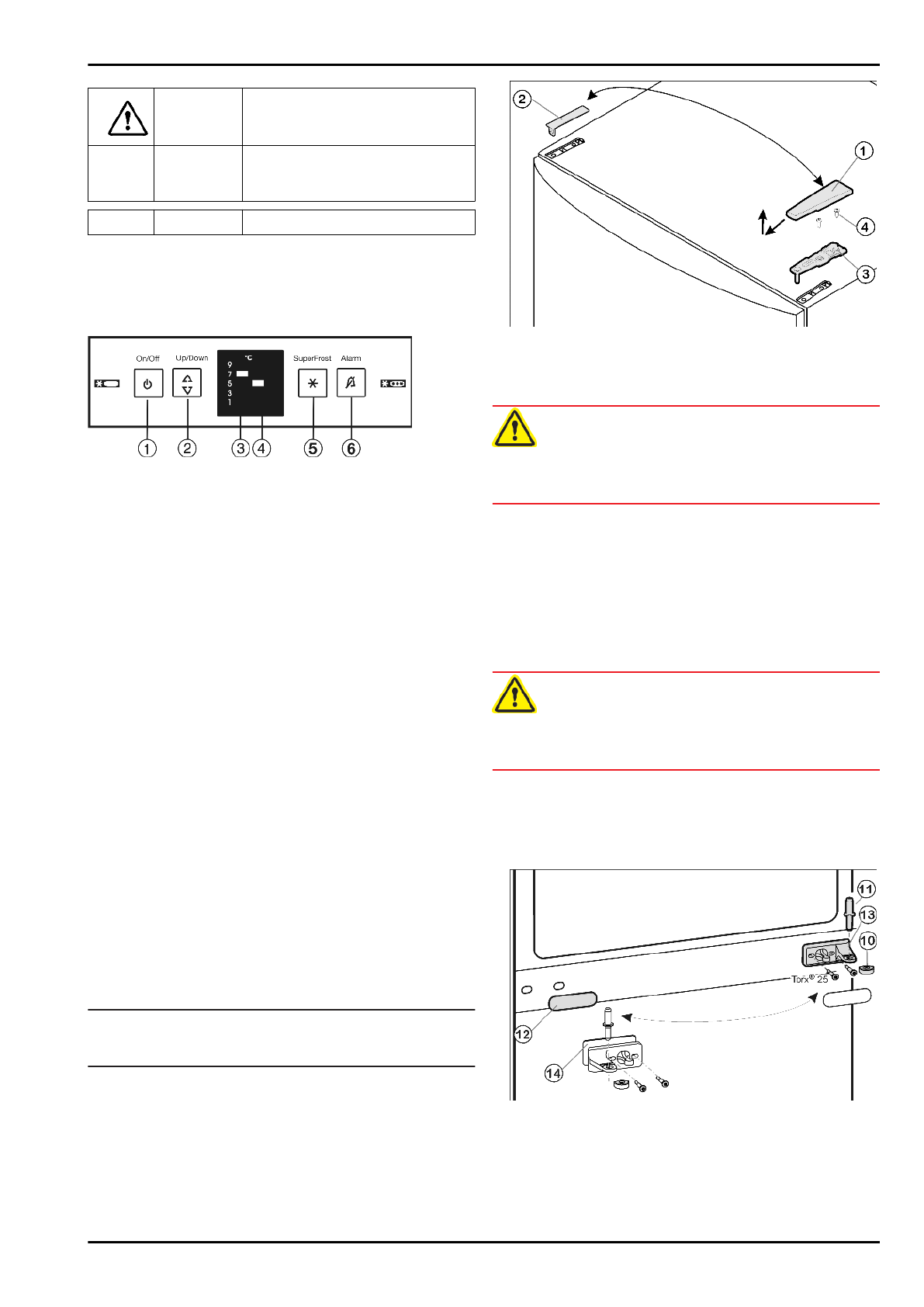

Fig. 3

(1) On/Off button

(4) Operating mode display,

freezer compartment

(2) Setting button

(5) SuperFrost button

(3) Refrigerator compart-

ment temperature

display

(6) Alarm button

3.2 Temperature display

The following are displayed in normal operation:

-

the set cooling temperature

The freezer compartment temperature display flashes:

-

the temperature setting is being changed

-

after switch-on the temperature is not yet cold enough

-

the temperature has risen several degrees

4 Putting into operation

4.1 Changing over the door hinges

You can change over the door hinges if necessary.
Ensure that the following tools are to hand:

q

Torx 25

q

Torx 15

q

Screwdriver

q

Cordless screwdriver, if necessary

q

Second person for fitting work, if needed

4.1.1 Detaching the upper door

Note

u

Remove  any  food  from  the  door  racks  before  removing  the

door, so that no food falls out.

Fig. 4

u

Close the upper door.

u

Pull off the cover

 Fig. 4 (1) forwards and upwards.

u

Lift off the cover

 Fig. 4 (2)

CAUTION

Risk of injury if the door tips!

u

Take good hold of the door.

u

Set down the door carefully.

u

Unscrew the upper turn hinge

 Fig. 4 (3)(2 Torx 25) Fig. 4 (4)

and raise it for removal.

u

Lift up the upper door and set it aside.

4.1.2 Detaching the lower door

u

Close the lower door.

u

Draw the middle bearing pin

 Fig. 5 (11) out of the turn hinge

and lower door.

u

Remove the plastic cap

 Fig. 5 (10).

CAUTION

Risk of injury if the door tips!

u

Take good hold of the door.

u

Set down the door carefully.

u

Open the lower door.

u

Detach the middle turn hinge

 Fig. 5 (13).

u

Lift up the door and set it aside.

4.1.3 Transferring the middle bearing elements

Fig. 5

u

Carefully detach the cover panel

 Fig. 5 (12).

u

Turn  the  middle  turn  hinge

  Fig.  5  (13)  through  180°  and

screw it firmly into place on the new hinge side (with 4 Nm).

u

Turn  the  cover  panel

  Fig.  5  (12)  through  180°  and  snap  it

into place again on the new handle side.
