1 The appliance at a glance

*

 depending on model and options

Butter stop

Egg tray

Adjustable storage shelves

Defrost drain

Vegetable, salad and fruit bins

Door rack for large bottles

Freezer compartment, approx. -18

0

C

Rating plate

High drawers

Ice-cube tray*

Adjustable-height feet at front, transport castors at back

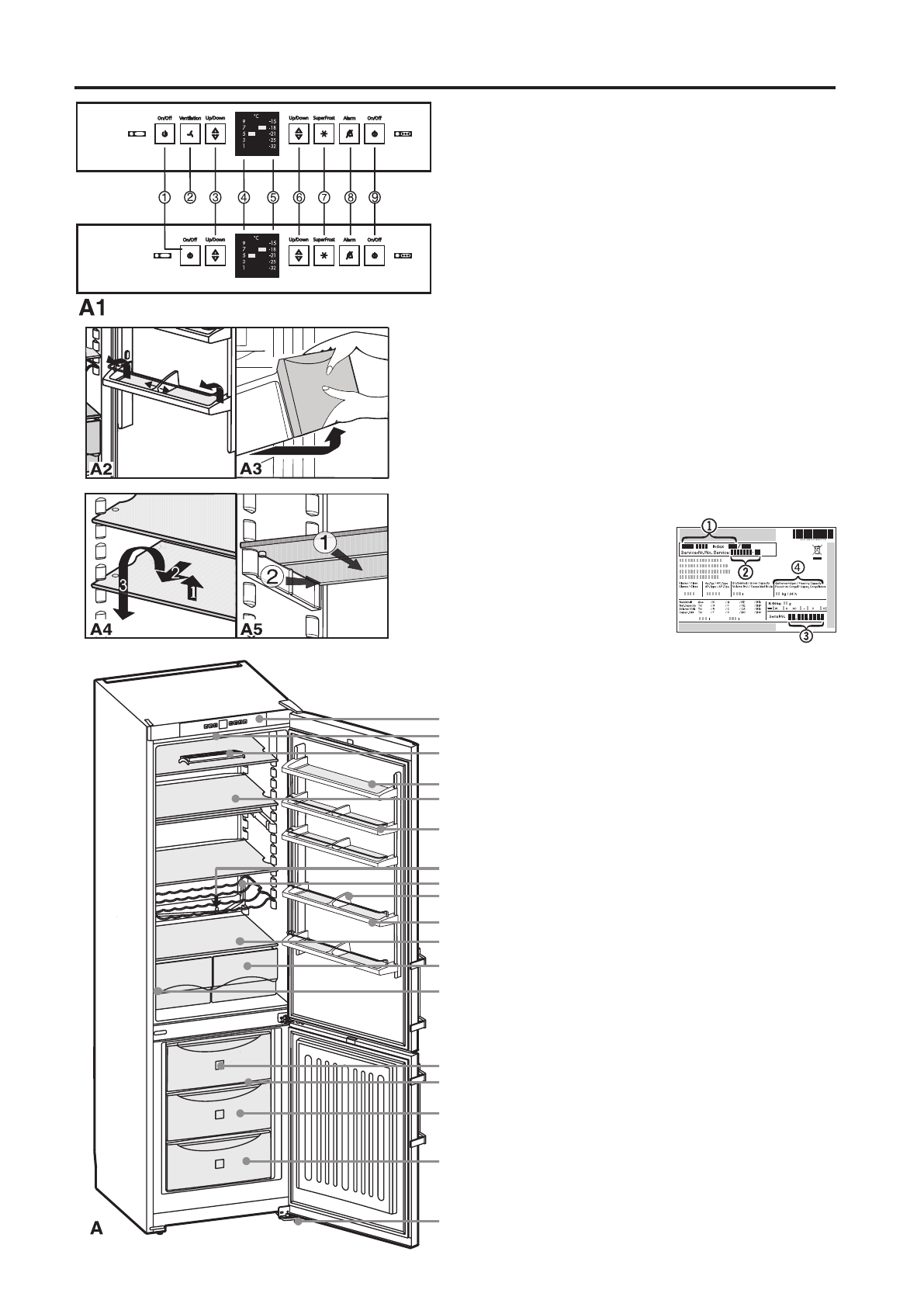

Description of appliance and equipment, fig. A

Adjustable door racks

W

By moving the

bottle and can holder

, you can prevent bottles

from tipping over when the door is opened and closed. The

holder can be removed for cleaning.

-   fig.

A2:

The holder slides and releases left or right along the

door stops.

W

  You can remove all

door racks

 for cleaning, fig.

A2

: lift rack

and pull forwards.

W

The shelves

* can be adjusted according to height of frozen

food, fig.

A4

.

-  Lift the shelf, slide forwards and remove.

-  Always insert shelves with the raised edge at the back point-

ing upwards, otherwise food may freeze onto the rear wall.

W

Removing drawers:

Pull forward until the drawer stops

and lift out, fig.

 A3.

W

  Fig.

A5

: If you need space for large bottles and containers,

then simply push the front half of

glass shelf

1

back. For clean-

ing, the holder

2

 can be used to

remove the half glass shelves.

Rating plate specifications fig. A6

1

Appliance designation

2

  Service number

3

  Appliance number

4

Freezing capacity ... kg/24hrs.

Coldest zone of the refrigerator compartment, for sensitive and

perishable foodstuffs

Information system*
VarioSpace*

Operating controls

Refrigerator compartment, approx. 5

0

C

Adjustable bottle and can holder

Bottle shelf

Operating controls,

fig.

 A1

1

On/Off button, fridge section

2

*

Ventilation button

3

Adjustment button, fridge section

4

Temperature display, fridge section

5

Temperature display, freezer section

6

Adjustment button, freezer section

7

Superfrost button

8

Alarm button

9

On/Off button, freezer section

Ceiling lighting
