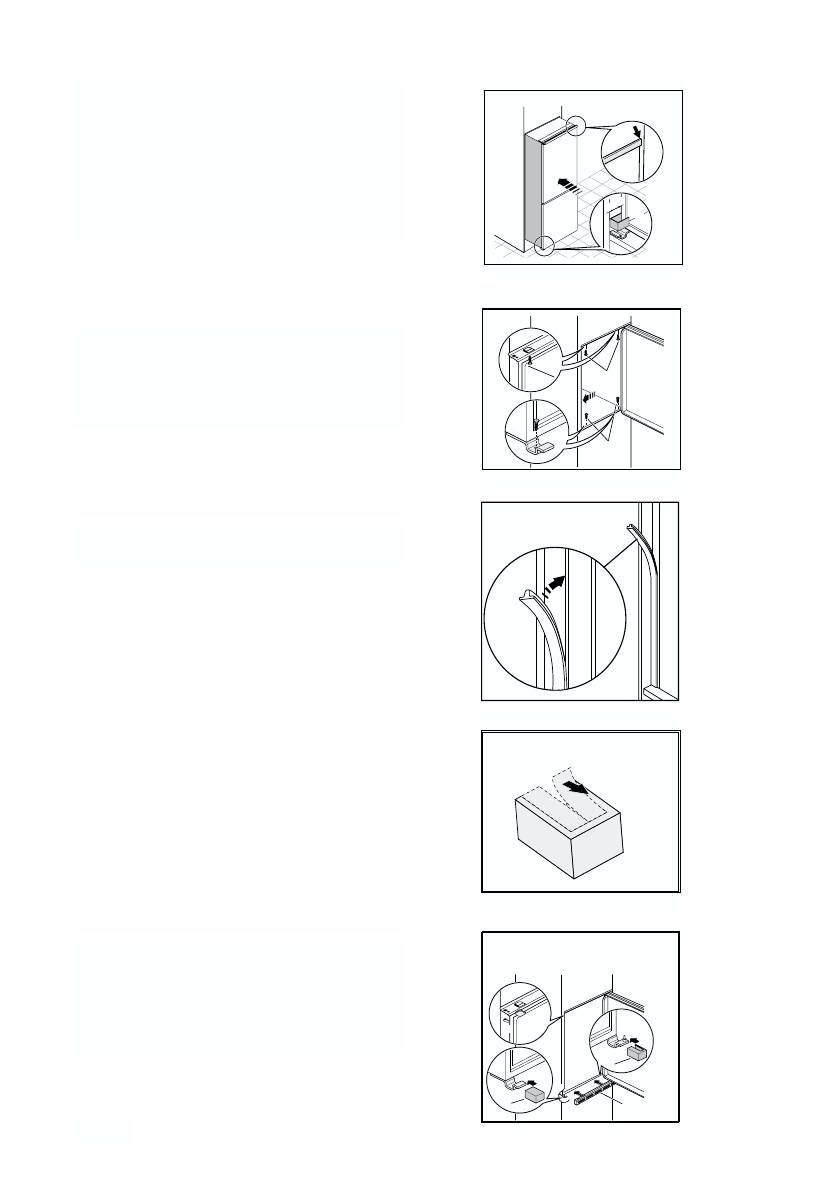

Apply the sealing strip pushing it between the
refrigerator and the adjacent cabinet.

Fasten the appliance with 4 screws provided in the
kit included with the appliance.
(I = short) (P = long)

Make sure that a distance of 44 mm is maintained in
the lower part between the kitchen furniture and the
border of the appliance.

The lower hinge cover inserted in the accessories
bag, is useful to guarantee the exact position of the
kitchen furniture and the appliance.

Also make sure that the appliance does not clamp
the mains cable

1

2

44mm

I

P

Apply covers (C-D) on joint cover lugs and into hinge
holes.
Snap vent grille (B) and hinge covers (E) into
position.

From the plastic cover (E), which is used to cover the
hinge with the pivot pin, you must take away the part
as indicated in the drawing.

This operation is made easer since there is, in the
internal part of the cover hinge lid a groove that
facilates the removal of this coomponent.

“Remove the part marked with DX, if the pivot pin is
inserted in the right hinge, SX in opposite case.”
