Furthermore, it is necessary that the niche is provid
with a  conduct of ventilation having the   following
dimensions:

depth 50

mm

width          540 mm

I

nstructions for totally built-in appliances

I

nstructions for totally built-in

appliances

Dimensions of the recess

Height            (1)       1780 mm

Depth             (2)         550 mm

Width             (3)         560 mm

For safety reasons, minimum ventilation must be as
shown in Fig.

Attention: keep ventilation openings

clear of obstruction.

50 mm

min.

200 cm

2

200 cm

2

min.

D567

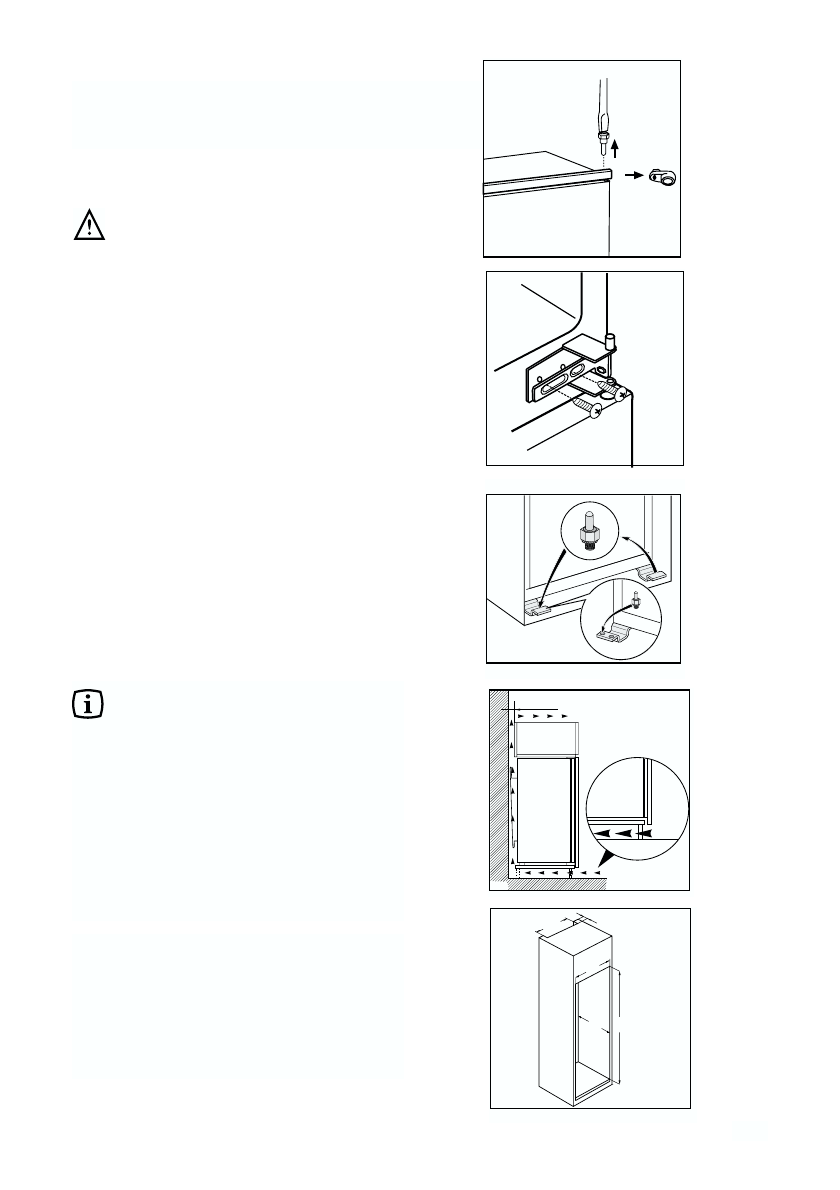

Door reversibility

The appliance is supplied with the right

or left door opening. To change the opening
direction of the door proceed as in the
following instructions before installing it.

1. Unscrew the upper pin and remove the spacer.

2. Remove the upper pin and the upper door.

3. Unscrew the middle hinge.

4. Remove the lower door.

5. Unscrew the lower pin and refit it on the opposite side

6. Refit the lower door.

7. Rescrew the middle hinge und the covers on the

opposite side.

8. Refit the upper door and rescrew the hinge pin and

the spacer on the opposite side.
