To Reverse the Doors

Precaution

1.

Before reversing the door, first of all,you should take out food and accessories

    likeshelves or trays which are not fixed in the fridge-freezer.

2. Use Torque Wrench or Spanner of 10 mm to fix or remove the bolt.

3. Do not lay the fridge-freezer down.

4. Be careful not to drop the doors in disassembling

    or assenbling.

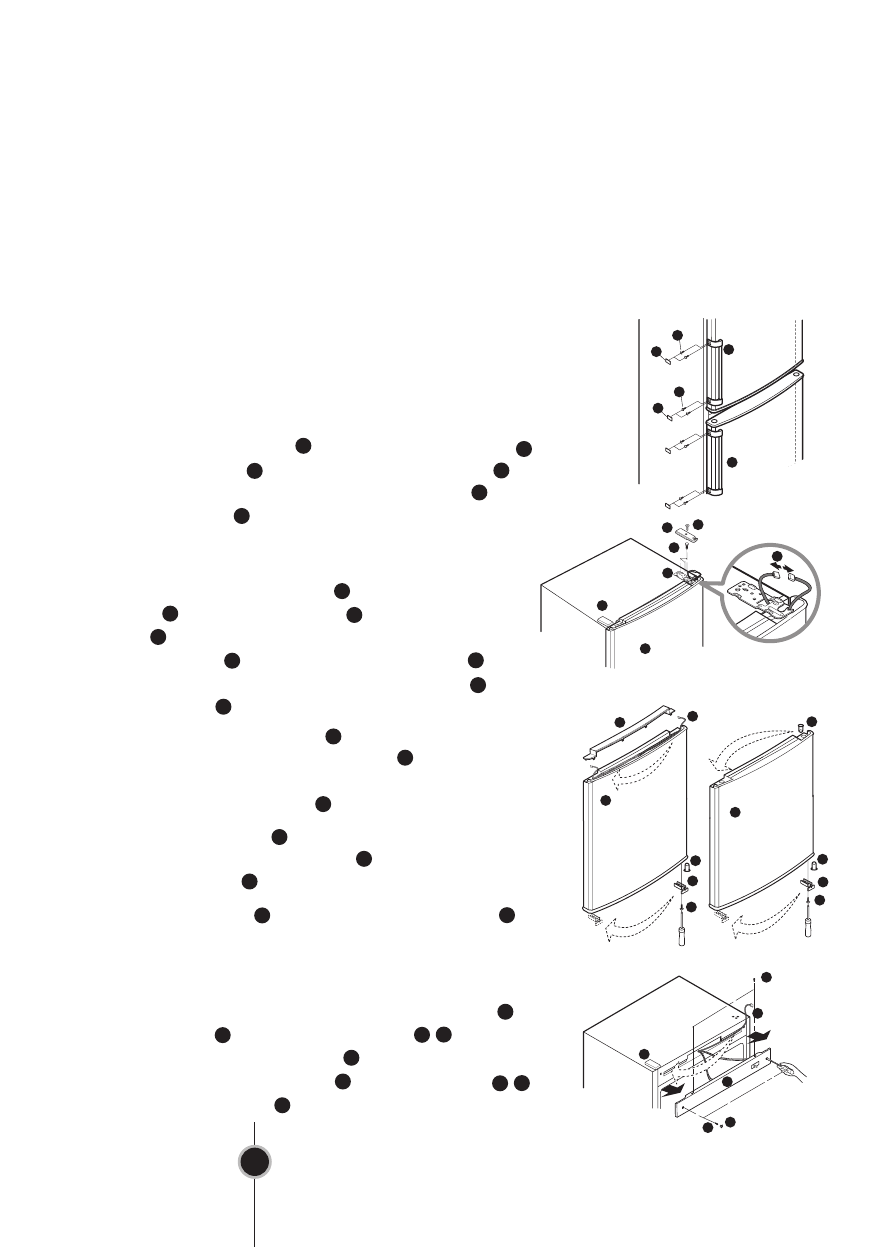

How to Reverse the Door

Your fridge-freezer is designed with reversible doors,so that they may open from either

the left or right hand side to suit your kitchen design.

To remove door handle     of  the refrigerator door    ,

first remove caps    , and then unscrew screws     in

a direction of counter-clockwise. The handle     of

the freezer door     removes in the same order.

You do not need to follow up the above procedure

for the hidden handle.

After unscrewing the screw     of cover hinge on

the top    , take off cap hinge     and disconnect

cable     (Only for the exterior display type models).

Unscrew bolts    , which fasten upper hinge     ,

and carefully take off the refrigerator’s door     .

Remove cap     .

Remove cap cover of door     (only for the exterior

display type models), pull out cable     and install it

into the opening on the opposite side of the door.

Set the cap cover of door     in its place.
Screw out the screw     located under the refrigerator

door and move it emphasis on     to the opposite side.

Fixate the screw     .
Move plastic caps     (for all types display)  and

(only for of interior type display models) to the

opposite side.
(Only for exterior type display).

Press by the (-) screwdriver and separate caps

of cover front     and unscrew screws        , remove

cover front, then move cable     to the opposite side.

After installation cover front     , screw by parts

and cover it by caps     .
