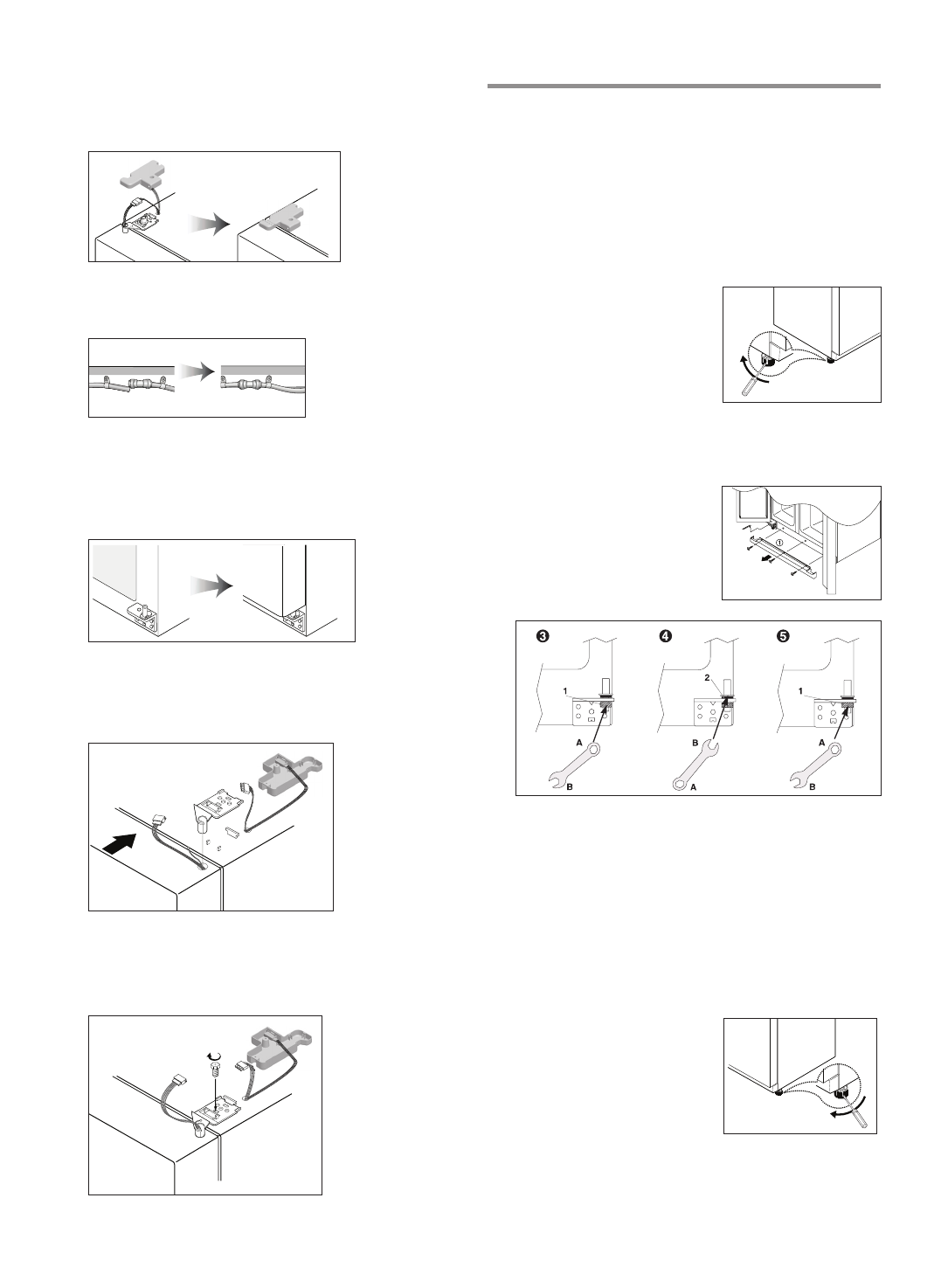

Turn the hinge fastener tightly to the end.

Connect harness wirings and screw down the ground

wire.

Fasten the bending tube guide and insert the water

tube far into the coupling. (Dispenser Models Only)

Replacing Refrigerator Door

Insert the bottom hole of the refrigerator

door straight into the bottom hinge pin.

Let the top of the door close and insert the top hinge

pin to the top hole of the refrigerator door.

(Insert the back of hinge to the groove of protrusion

first, then front to the top hole of door.)

Turn the hinge fastener tightly to the end.

Connect harness wirings (model dependent) and screw

down the ground wire. Click and screw the top hinge

cover.

Refrigerator Leveling &

Door Adjustment (If needed)

The refrigerator must be level in order to maintain optimal

performance and desirable front appearance.

(If the floor beneath the refrigerator is uneven, the freezer

and refrigerator doors may look unbalanced.)

In case freezer door is lower than

refrigerator door...

Insert a screw driver (flat

tip) into a groove of the left

wheel (bottom of freezer)

and turn it clockwise until the

door is balanced. (Clockwise

to raise freezer door,

counterclockwise to lower.)

※

 If the freezer door is not balanced by step 1, then follow

the next steps.

Open the doors, unscrew the

front cover and remove, if it is
attached.

Insert a spanner (A part) into the hinge nut (1 part) and

unscrew the nut by turning clockwise.

Insert a spanner (B part) into the hinge nut (2 part)

and turn clockwise to lower the door.

If the door is aligned, fasten the nut (1) tightly by turning

counter-clockwise.

In case refrigerator door is lower than

freezer door...

Insert a screw driver (flat tip)

into a groove of the right

wheel (bottom of refrigerator)

and turn it clockwise until the

door is balanced. (Clockwise

to raise refrigerator door,

counterclockwise to lower.)
