This appliance complies with the following E.E.C.
Directives:

- 8 7 / 3 0 8   E E C   o f   2 / 6 / 8 7   r e l a t i v e   t o   r a d i o

interference suppression.

- 73/23 EEC of 19.2.73 (Low Voltage
Directive)

and subsequent modifications.

- 8 9 / 3 3 6   E E C   o f   3 . 5 . 8 9   ( E l e c t r o m a g n e t i c

C o m p a t i b i l i t y   D i r e c t i v e )   a n d   s u b s e q u e n t
modifications.

Attention!

It must be possible to disconnect the appliance

from the mains power supply; the plug must
therefore be easily accessible after installation.

Building-in

Electrical connection

B e f o r e   p l u g g i n g   i n ,   e n s u r e   t h a t   t h e   v o l t a g e   a n d
f r e q u e n c y   s h o w n   o n   t h e   s e r i a l   n u m b e r   p l a t e
correspond to your domestic power suppl

y.

Voltage can vary by ±6% of the rated voltage.
For operation with di fferent voltages, a suitably sized
auto-transformer must be used.

Important
The appliance must be earthed.

The power supply cable plug is provided with a
contact for this purpose.

If the domestic power supply socket is not
earthed. connect the appliance to a separate
earth in compliance with current regulations,
consulting a specialist technician.

T h e   M a n u f a c t u r e r   d e c l i n e s   a l l
r e s p o n s i b i l i t y   i f   t h e   a b o v e   s a f e t y
precautions are not observed.

D132

D022

1

2

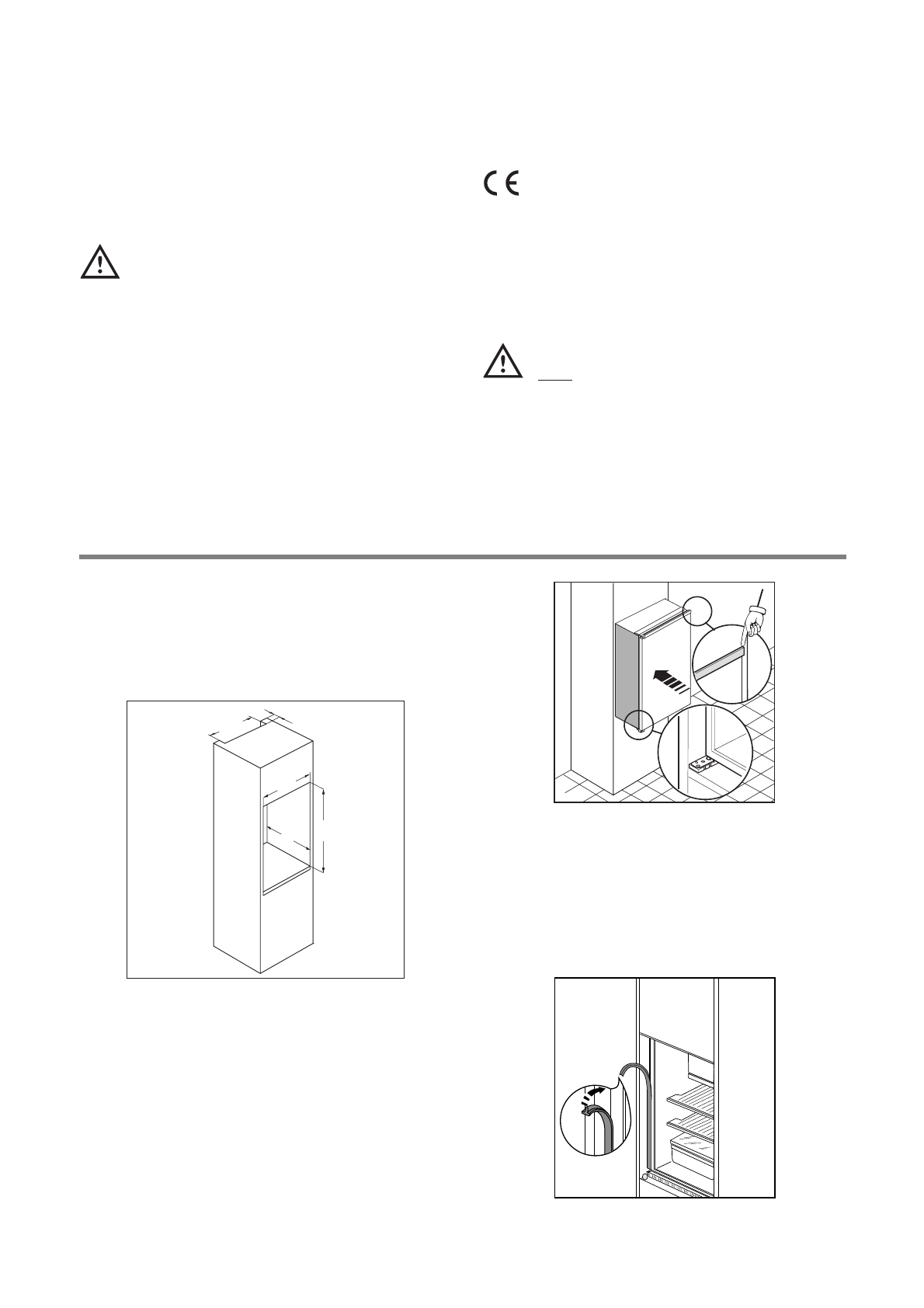

1. Fit the appliance in the niche by making sure that

it stands against the interior surface of the unit on
the side where the door hinges of the appliances
are fitted. Insert the appliance until the upper strip
butts up against the unit (1) and make sure that
the lower hinge is in line with the surface of the
unit (2).

2. Apply joint the sealing strip as shown in figure.

Dimensions of the recess

ERN 16

5

00 ERN 2350

1

Height of housing  880 1225 mm
Depth of housing  550 550 mm
Width of housing  560 560 mm

It is necessary that the niche is provided with a
c o n d u c t   o f   v e n t i l a t i o n   h a v i n g   t h e   f o l l o w i n g
dimensions:

Depth  50 mm

Width  540 mm

PR0

540

50

3

2

1
